410 (312-410-100) - Cub Cadet 21" Snow Thrower (1992) Snow Thrower Parts Diagram

21" Snow Thrower

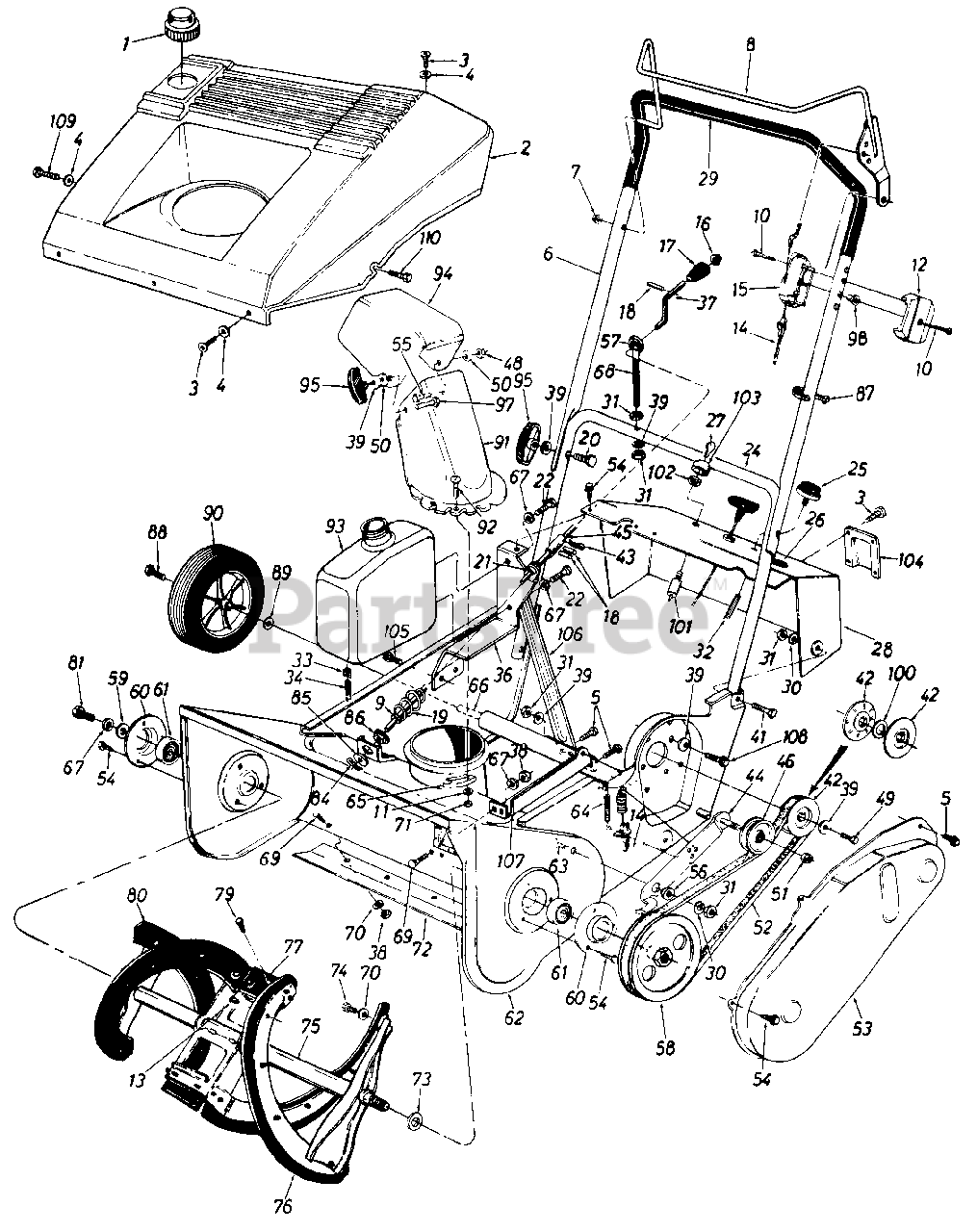

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 751-3071

Gas Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-1088

Shroud

$

$

Not available

3

Cub Cadet 710-0351

Hex B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0931

Fl-Wash. .203" I.D. x .41"

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

Cub Cadet 749-0711A

Upper Handle

Variations

Cub Cadet 749-0711A-0637

UPPER HANDLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0711A-0638

UPPER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

7

Cub Cadet 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 784-5346A

Control Handle Ass'y.-L.H.

$

$

Not available

9

Cub Cadet 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 731-0815

Control Panel Half

$

$

Not available

13

Cub Cadet 728-0123

Pop Rivet .188" Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 746-0506

Clutch Cable 35" Lg.
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-0816

Control Panel Half

$

$

Not available

16

Cub Cadet 726-0100

Push Cap 318" Rod

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 720-0201A

Knob-318" Dia. Hole

$10.99

$

In Stock, Qty 5

0

18

Cub Cadet 715-0138

Roll Pin 118" Dia. x .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 784-5497

Lower Chute Crank Ass'y.

$

$

Not available

20

Cub Cadet 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 735-0234

Chute Crank Grommet

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 749-0796

Lower Handle

Variations

Cub Cadet 749-0796-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, only 4 left!

0

26

Cub Cadet 731-1133

Plastic Plug
(Superseded to 731-1133C)

$

$

Not available

27

Cub Cadet 725-1341B

Key

$10.99

$

In Stock, only 1 left!

0

28

Cub Cadet 784-5572

Dash Panel Ass'y.

Variations

Cub Cadet 784-5572-0483

DASH - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5572-0629

DASH - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5572-0637

DASH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5572-0638

DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5572-0650

DASH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5572-0662

DASH - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5572-0674

DASH - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 784-5572-0686

DASH - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

29

Cub Cadet 720-0226

Foam Grip 22" Lg.
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 723-0354

Primer Hose-9" Lg.
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

33

Cub Cadet 726-0205

Hose Clamp-1/2" O.D.

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 751-0535

Gas Line-16" Lg.

$

$

Currently unavailable

36

Cub Cadet 705-5139

Gas Tank Support Brkt.

$

$

Not available

37

Cub Cadet 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

Cub Cadet 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0298

Hex Jam Nut 1/4 - 20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0442

Hex Bolt 5/16 - 18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 756-0416A

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

43

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

44

Cub Cadet 784-5180A

Idler Brake Brkt. Ass'y
(Superseded to 753-05156)

$

$

Not available

45

Cub Cadet 750-0785

Spacer .38" I.D. x 1.12" Lg.
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, Qty 5

0

48

Cub Cadet 712-0158

Hex L-Nut 5/16 - 18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

49

Cub Cadet 710-0157

Hex Bolt 5/16 - 24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

50

Cub Cadet 736-0231

Fl-Wash. .344" I.D. x 1.25"

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0296

Hex Patch L-Nut 3/8 - 24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

Cub Cadet 754-0101A

"V" - Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

53

Cub Cadet 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0451

Carriage Bolt 5/16 - 18 x .75"

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0234

Shld. Spacer .50" Dia. x .27"

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 756-0475

1/2" "V" - Pulley 1/2 - 2 L.H. x 6"

$79.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

60

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

Cub Cadet 784-5325C

21" Blower Hsg. Ass'y

Variations

Cub Cadet 784-5325C-0483

21" BLOWER HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5325C-0498

21" BLOWER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5325C-0629

21" BLOWER HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 784-5325C-0638

21" BLOWER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5325C-0662

21" BLOWER HOUSING - OYSTER GRAY (0662)

$

$

Not available

$

$

63

Cub Cadet 710-0323

Truss Mach. Scr. 5/16 - 18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

Cub Cadet 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

65

Cub Cadet 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 749-0810

Wheel Axle 20.6" Lg.

$

$

Not available

67

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

68

Cub Cadet 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

69

Cub Cadet 710-0167

Carriage Bolt 1/4 - 20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 712-0291

Hex L-Nut 1/4 - 20 Thd.

$4.49

$

In Stock, Qty 8

0

72

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

73

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

74

Cub Cadet 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" (Spec)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 784-5485

Auger Ass'y. 21"
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

76

Cub Cadet 731-0781A

Rubber Spiral-L.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

77

Cub Cadet 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

79

Cub Cadet 710-1003

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

Cub Cadet 731-0780A

Rubber Spiral-R.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

81

Cub Cadet 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4 - 20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

84

Cub Cadet 714-0507

Cotter Pin 3/32" Dia x .75"

$4.49

$

In Stock, Qty 12

0

85

Cub Cadet 736-0133

Fl-Wash. .406" I.D. x 1.25"

$5.49

$

In Stock, Qty 7

0

86

Cub Cadet 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0649

Hex Tap Scr. 3/8 - 24 x .88" Lg.

$

$

Not available

89

Cub Cadet 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 734-1176

7" Wheel & Tire Ass'y.

$

$

Not available

91

Cub Cadet 731-0915

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

92

Cub Cadet 710-0255

Truss Mach. Scr. 1/4 - 20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 751-0540

Fuel Tank-Two Qt.
(Superseded to 751-0540A)

$

$

Not available

94

Cub Cadet 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

95

Cub Cadet 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

97

Cub Cadet 710-0276

Carriage Bolt 5/16 - 18 x 1"

$3.99

$

In Stock, Qty 20+

0

98

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

100

Cub Cadet 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

101

Cub Cadet 725-1346

Key Switch
(Superseded to 925-1346)

$

$

Not available

102

Cub Cadet 725-1346

Ignition Switch Nut 5/8 - 32 Thd.
(Superseded to 925-1346)

$

$

Not available

103

Cub Cadet 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

104

Cub Cadet 731-1089

Choke Cover

$

$

Not available

105

Cub Cadet 710-1005

Hex Wash. Hd. Tap Scr. 1/4 - 5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

106

Cub Cadet 784-5603

Gas Tank Brace

Variations

Cub Cadet 784-5603-0637

BRACE - FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

107

Cub Cadet 784-5495

Engine Support

$

$

Not available

108

Cub Cadet 710-0759

Hex Bolt 5/16 - 18 x 5/8" Lg.

$6.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-1056

Pan Hd. Tap Scr. #10 x 1.25" Lg.

$

$

Not available

110

Cub Cadet 710-0588

Hex Wash. Hd. Tap Scr. 1/4 - 20 x 1" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

Cub Cadet 390-996

110V Electric Starter Kit

Note: (Optional Equipment)

$

$

Currently unavailable
