410 (312-192-100) - Cub Cadet 21" Snow Thrower Engine (1992) Tec 4 HP Engine Assembly Parts Diagram

21" Snow Thrower Engine

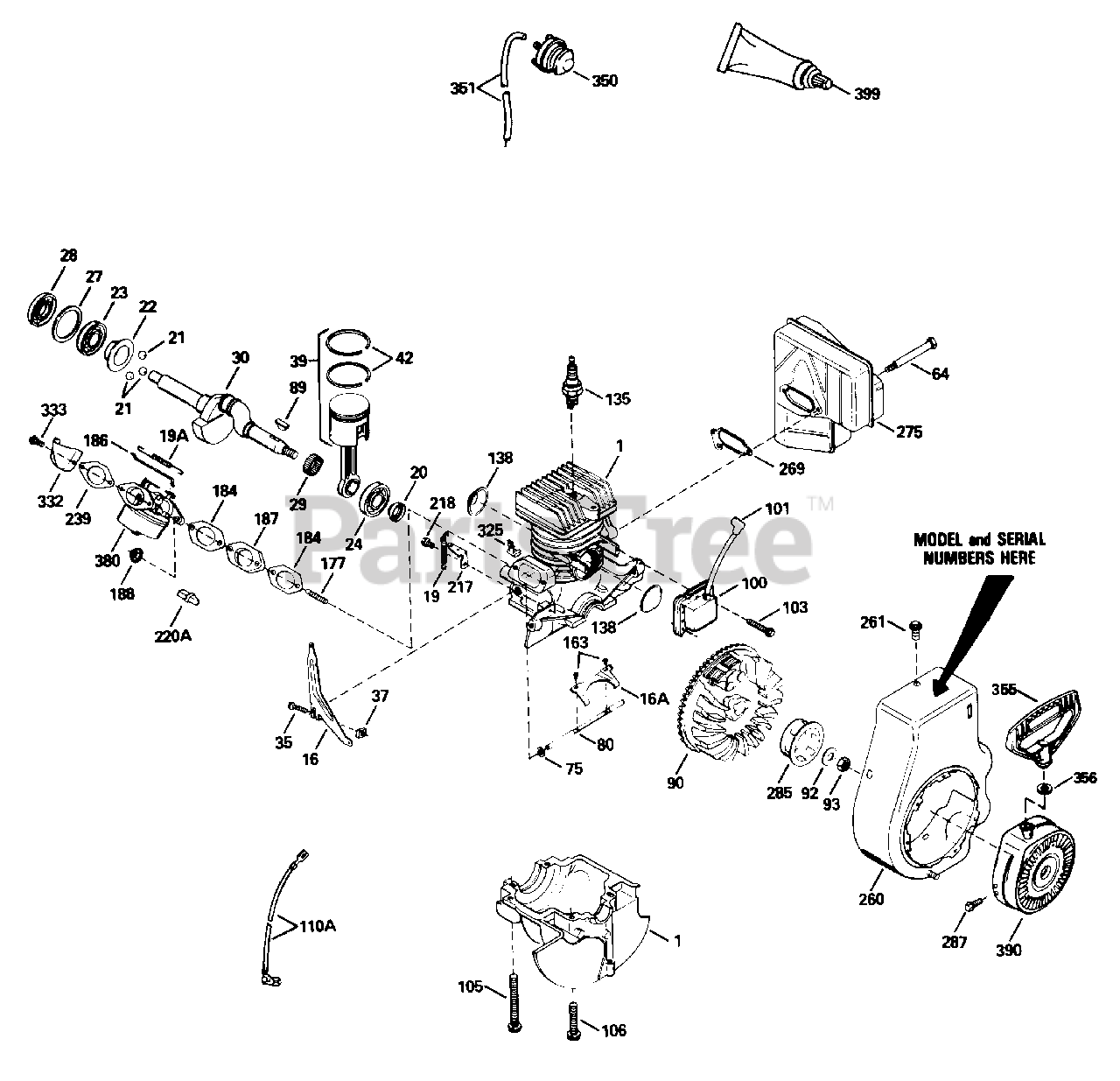

Tec 4 HP Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-250295

Cylinder & Cover Ass'y.

Note: (Incl. Nos. 105, 106 & 138)

$

$

Not available

16

Cub Cadet TC-490317

Lever, Governor

$

$

Not available

16A

Cub Cadet TC-490304

Lever, Governor

$5.49

$

Usually ships in 3-12 days

0

19

Cub Cadet TC-490308

Spring, Governor

$3.99

$

In Stock, only 1 left!

0

19A

Cub Cadet TC-490318

Spring, Backlash

$5.49

$

In Stock, Qty 9

0

20

Cub Cadet TC-510340

Seal (Flywheel End)

$5.49

$

In Stock, only 1 left!

0

21

Cub Cadet TC-570673

Ball

$1.99

$

Usually ships in 3-12 days

0

22

Cub Cadet TC-510338

Ring, Slide

$3.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-530158

Bearing, Ball (PTO End)

$26.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-530161

Bearing, Ball (Magneto End)

$22.99

$

In Stock, only 1 left!

0

27

Cub Cadet TC-530159

Retainer, Bearing

$1.99

$

Usually ships in 3-12 days

0

28

Cub Cadet TC-510339

Seal (PTO End)

$7.49

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-530164

Bearing Strip (31 Needles)

$13.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-290614

Crankshaft

$

$

Not available

35

Cub Cadet TC-29826

Screw, Hex Washer Hd., 10-32 x 3/4

$1.99

$

In Stock, only 4 left!

0

37

Cub Cadet TC-29216

Nut, Square

$1.99

$

In Stock, only 3 left!

0

39

Cub Cadet TC-310277A

Piston & Rod Ass'y.
(Superseded to TC-310291A)

Note: (Incl. Nos. 29 & 42)

$106.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-310278

Ring Set, Piston

$

$

Not available

64

Cub Cadet TC-650893

Screw, Muffler (5/16-18 x 3-13/64)

$5.49

$

In Stock, only 1 left!

0

75

Cub Cadet TC-510337

Seal, Oil

$3.99

$

Usually ships in 3-12 days

0

80

Cub Cadet TC-490305

Shaft, Governor

$11.99

$

Usually ships in 3-12 days

0

89

Cub Cadet TC-611107

Key, Flywheel

$

$

Currently unavailable

90

Cub Cadet TC-611151

Flywheel

$

$

Not available

92

Cub Cadet TC-650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650816

Nut, Flywheel

$4.49

$

In Stock, Qty 6

0

100

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118A

Cover, Spark Plug

$

$

Currently unavailable

103

Cub Cadet TC-650814

Screw, Torx Washer Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

105

Cub Cadet TC-650892

Screw, Hex Hd., 5/16-18 x 2-3/16

$1.99

$

In Stock, only 1 left!

0

106

Cub Cadet TC-650891

Screw, Hex Hd., 5/16-18 x 1-5/8

$

$

Not available

110A

UNKNOWN

$

$

Not available

135

Cub Cadet 759-3331

Plug, Spark

Note: (Champion RCJ-8Y or Equivalent)

$3.99

$

In Stock, only 2 left!

0

138

Cub Cadet TC-570683

Cover, Port

$3.99

$

Usually ships in 3-12 days

0

163

Cub Cadet TC-650506

Screw, Pan Washer Hd., 4-40 x 3/16

$1.49

$

In Stock, Qty 17

0

177

Cub Cadet TC-650527

Stud, Carburetor Mounting

$

$

Not available

184

Cub Cadet TC-510326A

Gasket, Carburetor

$1.49

$

In Stock, Qty 5

0

186

Cub Cadet TC-490319

Link, Governor

$1.99

$

In Stock, only 4 left!

0

187

Cub Cadet TC-570438A

Spacer, Carburetor

$3.99

$

In Stock, only 1 left!

0

188

Cub Cadet TC-650457

Nut, Whizlock
(Superseded to TC-29752)

$1.99

$

In Stock, Qty 5

0

217

Cub Cadet TC-570667A

Lever, Speed Control

$1.99

$

Usually ships in 3-12 days

0

218

Cub Cadet TC-650847

Screw, Hex Washer Hd. Taptite, 8-32 x 1/2

$1.99

$

In Stock, only 2 left!

0

220A

Cub Cadet TC-35511

Knob, Control

$1.99

$

Usually ships in 3-12 days

0

239

Cub Cadet TC-510206A

Gasket, Filter Base

$

$

Currently unavailable

260

Cub Cadet TC-350436

Housing, Blower
(Superseded to TC-350460)

$

$

Not available

261

Cub Cadet TC-650894

Screw, Hex Washer Hd. Taptite, 5/16-18 x 5/8

$1.99

$

Usually ships in 3-12 days

0

269

Cub Cadet TC-510343A

Gasket, Muffler

$3.99

$

In Stock, only 1 left!

0

275

Cub Cadet TC-390318

Muffler

$

$

Not available

285

Cub Cadet TC-34449

Hub, Starter

$

$

Not available

287

Cub Cadet TC-650884

Screw, Hex Washer Hd., 8-32 x 1/2
(Superseded to TC-650926)

$1.49

$

In Stock, only 3 left!

0

325

Cub Cadet TC-29443

Clip, Spring

$1.99

$

In Stock, Qty 5

0

332

Cub Cadet TC-570695

Baffle, Carburetor

$3.99

$

In Stock, only 1 left!

0

333

Cub Cadet TC-650229

Screw, Pan Hd. Torx, 10-32 x 3/8

$1.99

$

Usually ships in 3-12 days

0

350

Cub Cadet TC-570682

Primer Ass'y.
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

351

Cub Cadet TC-32180C

Line, Primer

$6.99

$

In Stock, Qty 9

0

355

Cub Cadet TC-590574

Handle, Mitten Grip

Note: (Not Included with Replacement Starter, Must Order Separately)

$5.49

$

In Stock, only 1 left!

0

356

UNKNOWN

$

$

Not available

380

Cub Cadet TC-632562

Carburetor

Note: (Incl. No. 184)

$

$

Currently unavailable

390

Cub Cadet TC-590652

Starter, Rewind
(Superseded to TC-590787)

Note: (Does Not Include No. 355)

$53.99

$

In Stock, only 1 left!

0

399

Cub Cadet TC-510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0
