410 (311-192-100) - Cub Cadet 21" Snow Thrower Engine (1991) Tec 4 HP HSK840-8204-Carburetor Parts Diagram

21" Snow Thrower Engine

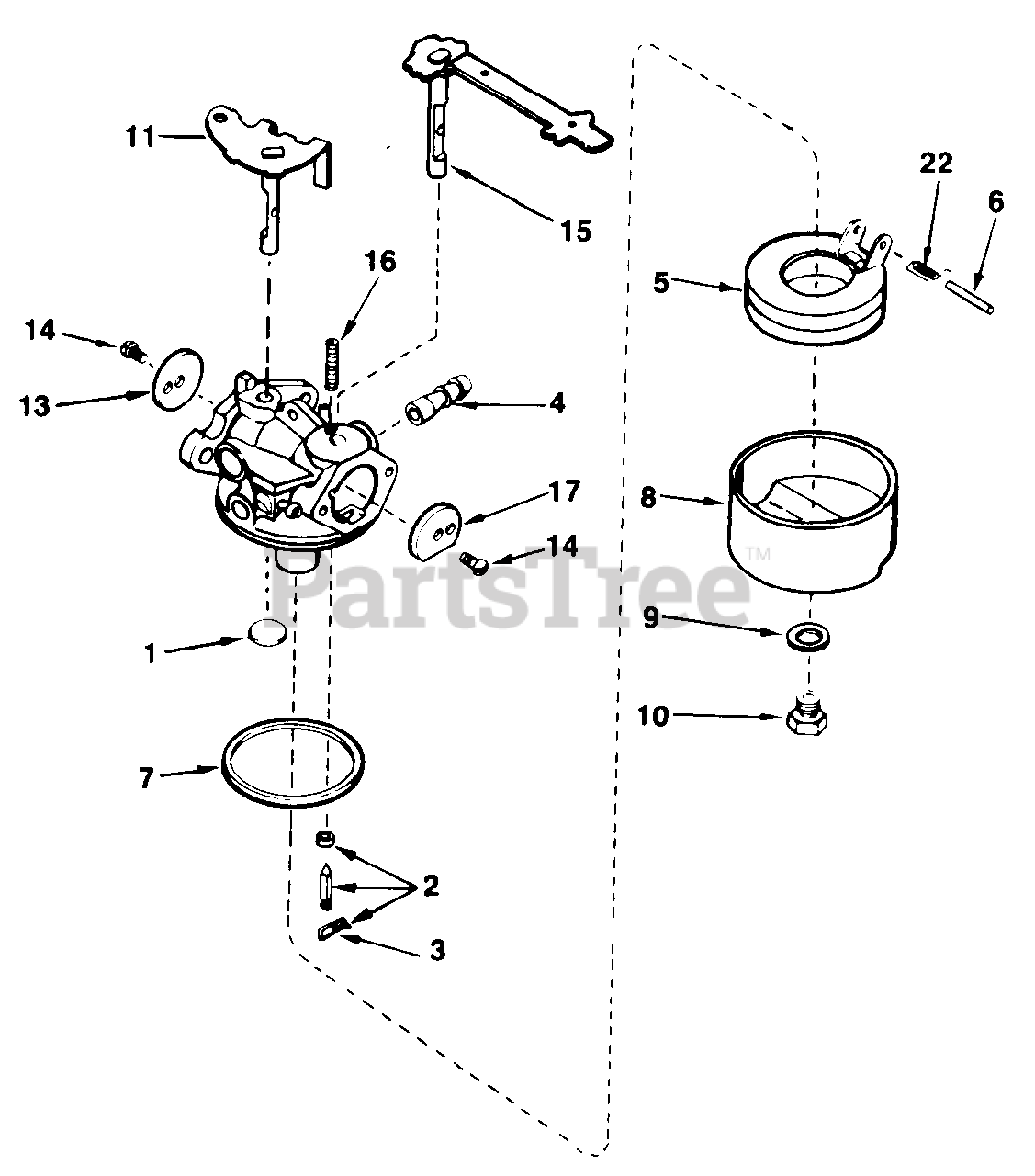

Tec 4 HP HSK840-8204-Carburetor Parts Diagram

  • Title

1

Cub Cadet TC-631027

Plug, Welch

$1.99

$

In Stock, only 2 left!

0

2

Cub Cadet TC-631021

Inlet Needle, Seat & Clip Ass'y.
(Superseded to TC-631021B)

Note: (Incl. No. 3)

$6.99

$

In Stock, Qty 6

0

3

Cub Cadet TC-631022

Clip, Inlet Needle

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet TC-632164

Fitting, Fuel Inlet

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet TC-632019

Float, Carburetor
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

6

Cub Cadet TC-631024

Shaft, Float

$1.99

$

In Stock, Qty 11

0

7

Cub Cadet TC-631028

"O" Ring, Bowl-to-Body
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

8

Cub Cadet TC-631867

Bowl, Float

$3.49

$

In Stock, Qty 12

0

9

Cub Cadet TC-27110

Gasket, Bowl-to-Body
(Superseded to TC-27110A)

$2.49

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-632503

Nut, Float Bowl

$

$

Not available

11

Cub Cadet TC-632538

Shaft & Lever Ass'y., Throttle

$7.49

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-631621

Shutter, Throttle

$1.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-650506

Screw, Throttle & Choke Shutter

$1.49

$

In Stock, Qty 17

0

15

Cub Cadet TC-31841A

Shaft & Lever Ass'y., Choke

$9.49

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-630735

Spring, Choke Positioning

$1.99

$

In Stock, only 4 left!

0

17

Cub Cadet TC-631815

Shutter, Choke

$1.99

$

In Stock, only 3 left!

0

Cub Cadet TC-63252

Carburetor Comp.

$

$

Currently unavailable

22

UNKNOWN

$

$

Not available
