410 (1600258) - AGCO Lawn Tractor, 10hp Wheel Group (1506I17) Parts Diagram

Lawn Tractor, 10hp

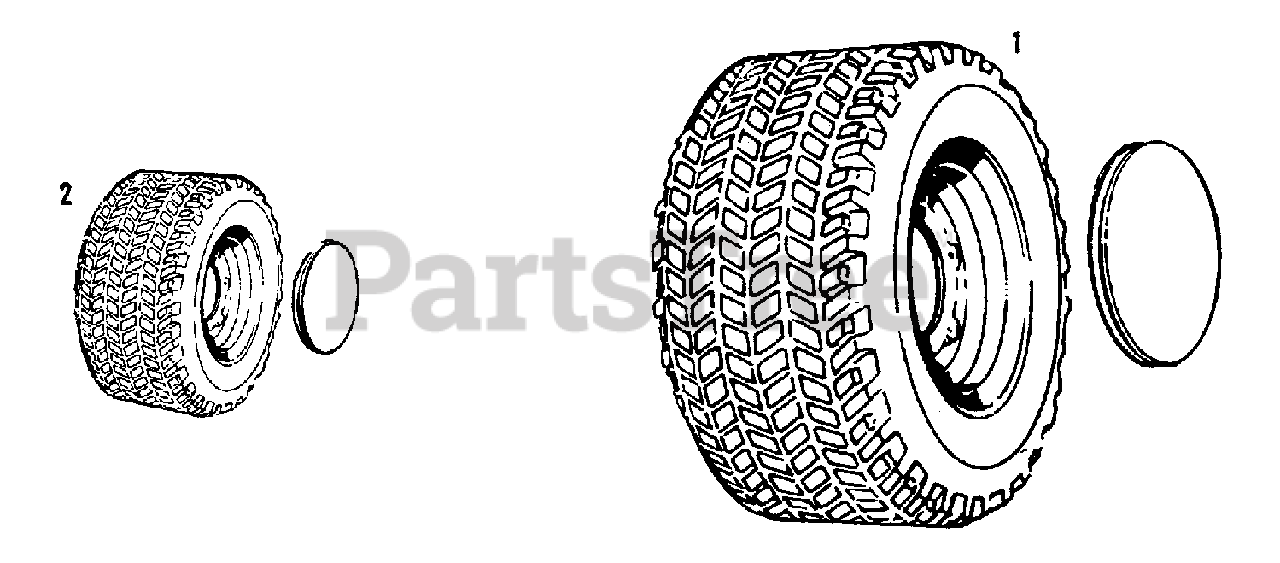

Wheel Group (1506I17) Parts Diagram

  • Title

1

Simplicity 2027863

WHEEL, Rear (10 H.P. Tractors)

$

$

Not available

1

Simplicity 1605968

TIRE, Tubeless (23 x 8.50-12, 2 Ply)

$

$

Not available

1

Simplicity 2026975

TUBE, (F/23 x 8.50-12 Tires)

$

$

Not available

1

Simplicity 1602339

STEM

$

$

Not available

1

Simplicity 2027863

WHEEL, Rear (16 H.P. Tractors)

$

$

Not available

1

Simplicity 1709969SM

TIRE, Tubeless (23 x 10.50-12, 2 Ply)
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

1

Simplicity 2026975

TUBE, (F/23 x 10.50 x 12 Tires)

$

$

Not available

1

Simplicity 1602339

STEM

$

$

Not available

2

Simplicity 2029189

WHEEL, Front (10 H.P. Tractors)

$

$

Not available

2

Simplicity 2025497

TIRE, Tubeless (4.80/4.00-8, 2 Ply)

$

$

Not available

2

Simplicity 1709961SM

WHEEL, Front (16 x 6.50-8)(10 H.P.) (Eff. S/N 25841001 & Up; 29941001 & Up)

$

$

Not available

2

Simplicity 2026710

TIRE, Tubeless (16 x 6.50-8, 2 Ply)(Eff. S/N 25841001 & Up; 29941001 & Up)

$

$

Not available

2

Simplicity 2164247SM

TUBE, 16 x 6.50 x 8(Eff. S/N 25841001 & Up; 29941001 & Up)

$40.99

$

Usually ships in 2-12 days

0

2

Simplicity 2172353SM

VALVE STEM & CAP(Eff. S/N 25841001 & Up; 29941001 & Up)
(Superseded to 024373MA)

$

$

Not available

2

Simplicity 2153038SM

TUBE (F/4.80/4.00-8 Tires

$35.99

$

Usually ships in 2-12 days

0

2

Simplicity 1709961SM

WHEEL, Front (16 H.P. Tractors)

$

$

Not available

2

Simplicity 2026710

TIRE, Tubeless (16 x 6.50-8, 2 Ply)

$

$

Not available

2

Simplicity 2164247SM

TUBE, (F/16 x 6.50-8 Tires)

$40.99

$

Usually ships in 2-12 days

0

3

Simplicity 2025760

BOLT, Wheel Hub

$

$

Not available
