410 (1600258) - AGCO Lawn Tractor, 10hp Vacuum Collector Group - Cart Cover (1506I50) Parts Diagram

Lawn Tractor, 10hp

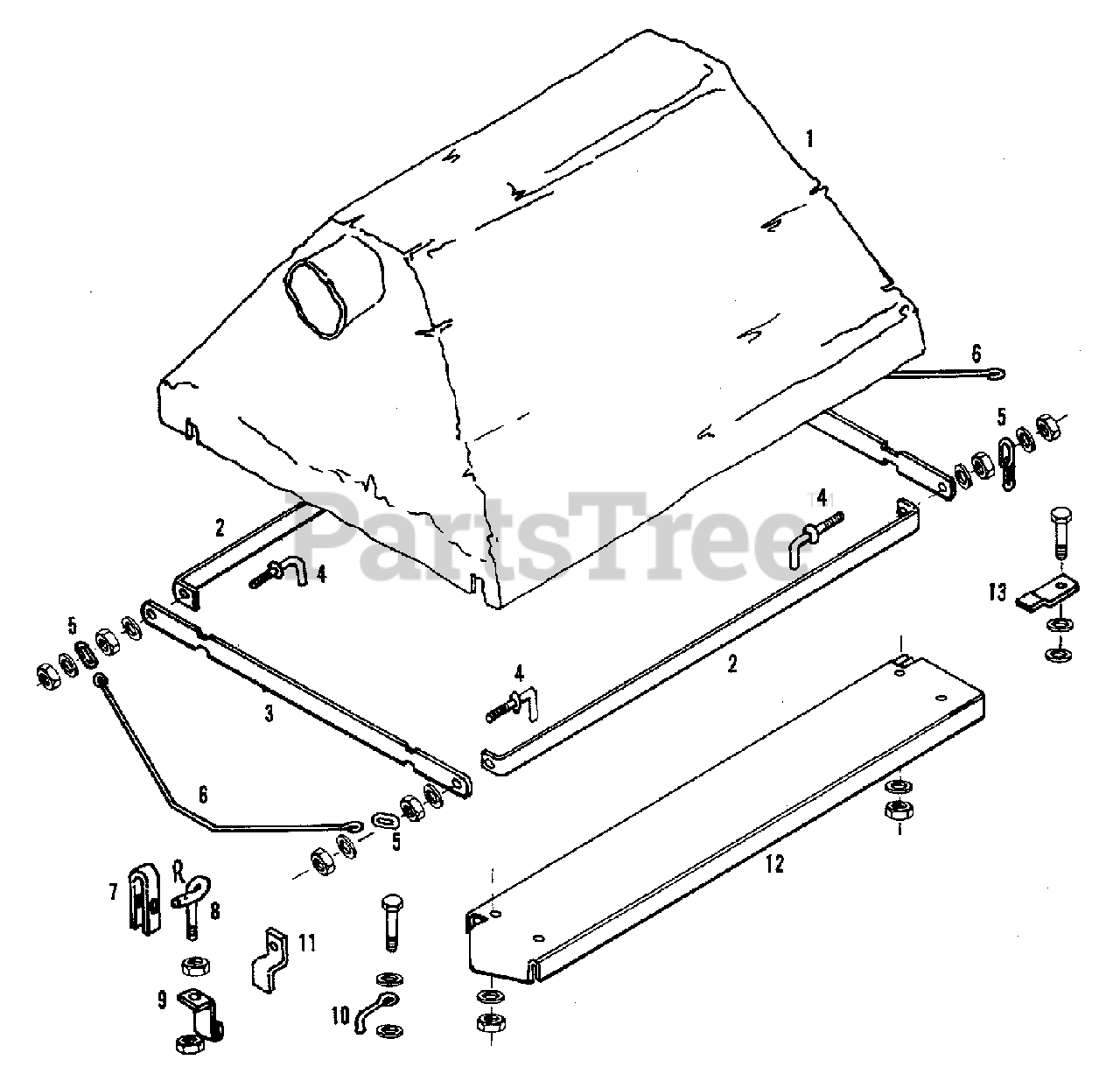

Vacuum Collector Group - Cart Cover (1506I50) Parts Diagram

  • Title
1

Simplicity 2087532

COVER, Cart

$

$

Not available

2

Simplicity 2087533

BAR, Reinforce Side

$

$

Not available

3

Simplicity 2087534

BAR, Reinforce End

$

$

Not available

$

$

Not available

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

5

Simplicity 2027849

LINK, Repair

$

$

Not available

5

Simplicity 2818006

NUT, 3/8NC, Lock

$

$

Not available

$

$

Not available

$

$

Not available

8

Simplicity 2027846

ROD, Latch

$

$

Not available

$

$

Not available

9

Simplicity 2818452

PIN, 1/8 x 1, Cotter

$

$

Not available

9

Simplicity 2818006

NUT, 3/8NC, Lock

$

$

Not available

10

Simplicity 2027211

STOP, Belt

$

$

Not available

11

$

$

Not available

12

Simplicity 2087538

PANEL, Side

$

$

Not available

13

$

$

Not available

13

Simplicity 2026575

WASHER, Special

$

$

Not available

13

Simplicity 2817642

WASHER, 5/16

$

$

Not available

13

Simplicity 2821332

CAPSCREW, 5/16 x 3/4

$

$

Not available

13

Simplicity 2818005

NUT, 5/16NC, Lock

$

$

Not available

13

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
