410 (1600258) - AGCO Lawn Tractor, 10hp Transmission Group - 4 Speed (1506I10) Parts Diagram

Lawn Tractor, 10hp

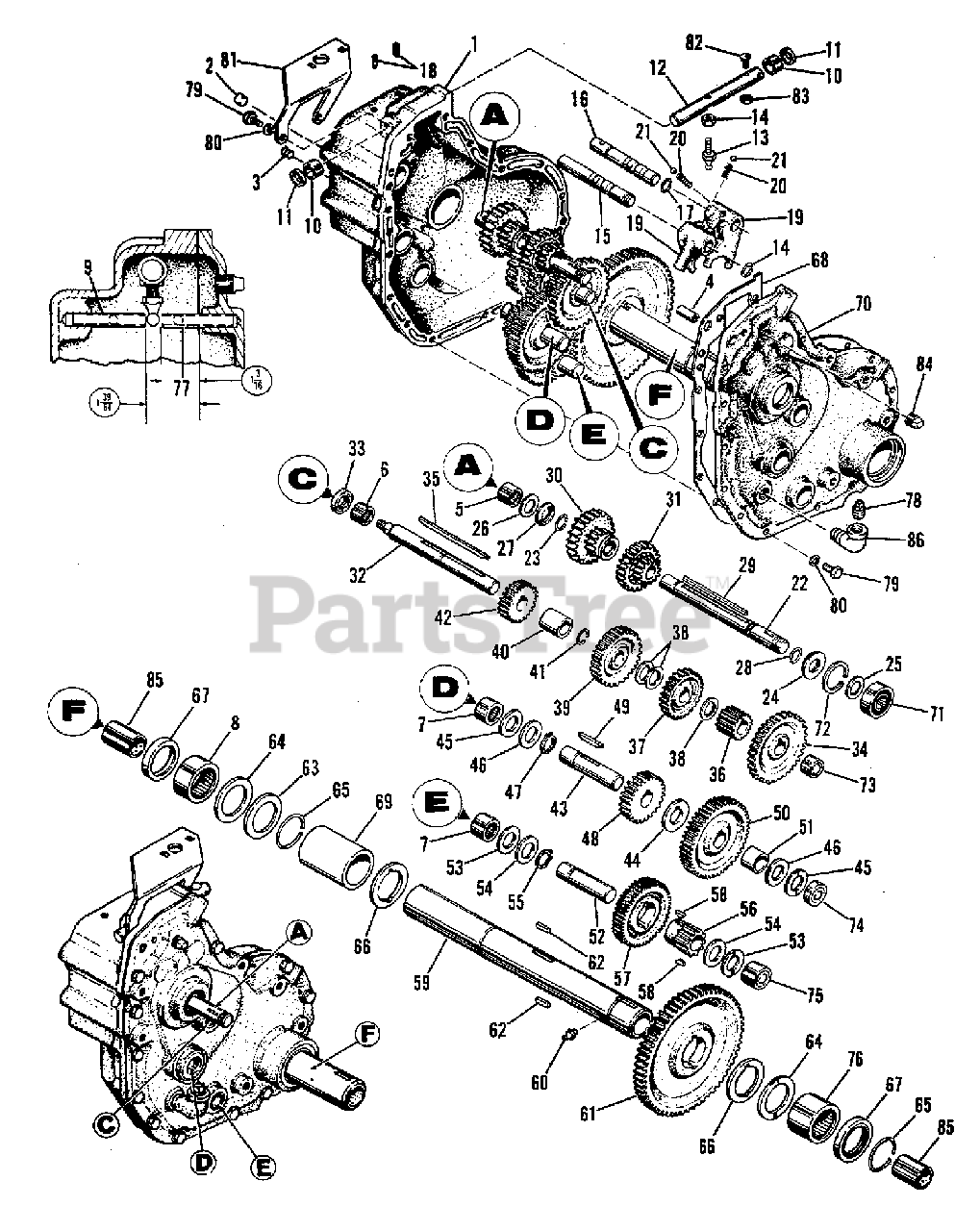

Transmission Group - 4 Speed (1506I10) Parts Diagram

  • Title

1

Simplicity 2029211

CASE ASSEMBLY, Gear (Includes Items 2 Thru 7)

$

$

Not available

2

Simplicity 2029212

PLUG, Expansion

$

$

Not available

3

Simplicity 902870

SETSCREW, 3/8NC x 3/8

$

$

Not available

4

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

5

Simplicity 2025625

BEARING, Needle

$

$

Not available

6

Simplicity 2025626

BEARING, Needle

$

$

Not available

7

Simplicity 2025627

BEARING, Needle

$

$

Not available

8

Simplicity 2027360

BEARING, Needle

$

$

Not available

9

Simplicity 2026301

PIN ASSEMBLY, Roll

$

$

Not available

10

Simplicity 2025438

SPACER

$

$

Not available

11

Simplicity 2027880

SEAL, Oil

$

$

Not available

12

Simplicity 2027361

ROD, Shift

$

$

Not available

13

Simplicity 2025629

STUD, Shift Stem (Prior S/N 29941001 & Up)

$

$

Not available

13

Simplicity 2087554

STEM, Shift (Efff. S/N 29941001 & Up)

$

$

Not available

14

Simplicity 2822132

NUT, Lock, 3/8NF (Prior S/N 29941001 & Up)

$

$

Not available

14

Simplicity 2087553

LOCKTITE, (Eff. S/N 29941001 & Up)

$

$

Not available

15

Simplicity 2025527

SHAFT, Reverse Medium

$

$

Not available

16

Simplicity 2025528

SHAFT, High, Low

$

$

Not available

17

Simplicity 2025723

RING, Retaining

$

$

Not available

18

Simplicity 917231

SETSCREW, 5/16NC x 1/2

$

$

Not available

19

Simplicity 2025529

FORK, Shift

$

$

Not available

20

Simplicity 2025672

SPRING

$

$

Not available

21

Simplicity 2025630

BALL, Shift Lock

$

$

Not available

22

Simplicity 2029205

SHAFT, Pulley

$

$

Not available

23

Simplicity 2025433

RING, Retaining

$

$

Not available

24

Simplicity 2025531

WASHER

$

$

Not available

25

Simplicity 2026882

WASHER

$

$

Not available

26

Simplicity 2029199

WASHER

$

$

Not available

27

Simplicity 2029198

WASHER

$

$

Not available

28

Simplicity 2025632

RING, Retaining

$

$

Not available

29

Simplicity 2027591

KEY

$

$

Not available

30

Simplicity 2029207

GEAR ASSEMBLY, II & IV

$

$

Not available

31

Simplicity 2025533

PINION ASSEMBLY, I & III

$

$

Not available

32

Simplicity 2026538

SHAFT, 1st Intermediate

$

$

Not available

33

Simplicity 2025631

SEAL, Oil

$

$

Not available

35

Simplicity 2025678

KEY

$

$

Not available

36

Simplicity 2025536

PINION, 1st Intermediate

$

$

Not available

34

Simplicity 2025535

GEAR, Driven I

$

$

Not available

37

Simplicity 2025537

PINION, Driven, III

$

$

Not available

38

Simplicity 2025722

SPACER, Gear

$

$

Not available

39

Simplicity 2025538

GEAR, Driven II

$

$

Not available

40

Simplicity 2025539

SPACER

$

$

Not available

41

Simplicity 2025632

RING, Retaining

$

$

Not available

42

Simplicity 2029206

PINION, Reverse, IV

$

$

Not available

43

Simplicity 2025542

SHAFT, 2nd Intermediate

$

$

Not available

44

Simplicity 2025513

WASHER

$

$

Not available

45

Simplicity 2029197

WASHER

$

$

Not available

46

Simplicity 2029196

WASHER

$

$

Not available

47

Simplicity 2025634

RING, Retaining

$

$

Not available

48

Simplicity 2026977

PINION, 2nd Intermediate

$

$

Not available

49

Simplicity 2025635

KEY

$

$

Not available

50

Simplicity 2025545

GEAR, 2nd Intermediate

$

$

Not available

51

Simplicity 2025546

SPACER

$

$

Not available

52

Simplicity 2025547

SHAFT, 3rd Intermediate

$

$

Not available

53

Simplicity 2029197

WASHER

$

$

Not available

54

Simplicity 2029196

WASHER

$

$

Not available

55

Simplicity 2025634

RING, Retaining

$

$

Not available

56

Simplicity 2025548

PINION, 3rd Intermediate

$

$

Not available

57

Simplicity 2026978

GEAR, 3rd Intermediate

$

$

Not available

58

Simplicity 911171

KEY, Woodruff

$

$

Not available

59

Simplicity 2027209

TUBE ASSEMBLY, Axle (w/ Bushing)

$

$

Not available

60

Simplicity 9002040

FITTING, Lube (Package Of 10)

$

$

Not available

61

Simplicity 2025551

GEAR, Drive

$

$

Not available

62

Simplicity 2025552

KEY

$

$

Not available

63

Simplicity 2029195

WASHER

$

$

Not available

64

Simplicity 2025822

WASHER

$

$

Not available

65

Simplicity 2025636

RING, Snap

$

$

Not available

66

Simplicity 2025567

WASHER, Axle Tube

$

$

Not available

67

Simplicity 2025637

SEAL

$

$

Not available

68

Simplicity 2027362

GASKET, Gear Case

$

$

Not available

69

Simplicity 2025553

SPACER, Axle Tube

$

$

Not available

70

Simplicity 2027363

COVER ASSEMBLY, Gear Case (Includes Items 71 Thru 77)

$

$

Not available

71

Simplicity 526986

BEARING

$

$

Not available

72

Simplicity 2027365

RING, Retaining

$

$

Not available

73

Simplicity 2025625

BEARING, Needle

$

$

Not available

74

Simplicity 2025639

BEARING, Needle

$

$

Not available

75

Simplicity 2025627

BEARING, Needle

$

$

Not available

76

Simplicity 2027366

BEARING, Needle

$

$

Not available

77

Simplicity 2026302

PIN ASSEMBLY, Roll

$

$

Not available

78

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

79

Simplicity 2821333

CAPSCREW, 5/16NC x 1

$

$

Not available

80

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

81

Simplicity 2027367

SUPPORT, Switch

$

$

Not available

82

Simplicity 2029194

BOLT, 5/16NC x 1

$

$

Not available

83

Simplicity 2820161

NUT, Jam, 5/16NC

$

$

Not available

84

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

85

Simplicity 2027210

BUSHING

$

$

Not available

86

Simplicity 921419

ELBOW, 3/8 x 90

$

$

Not available
