410 (1600258) - AGCO Lawn Tractor, 10hp Hydrostatic Pump & Valve Group (1506I13) Parts Diagram

Lawn Tractor, 10hp

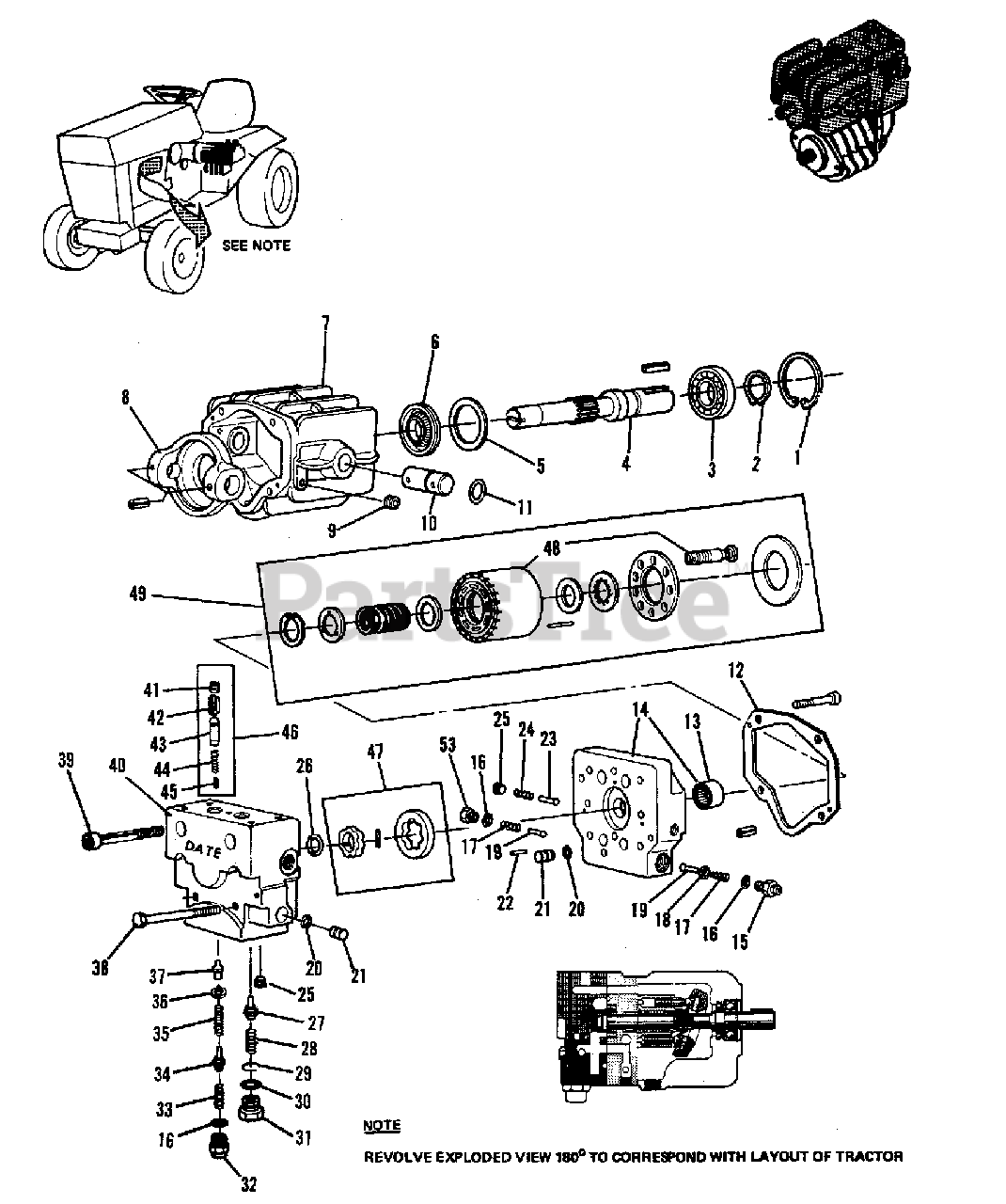

Hydrostatic Pump & Valve Group (1506I13) Parts Diagram

  • Title

-

Simplicity 2027439

PUMP & MOTOR ASSEMBLY (Includes Items 1to 49 & MOTOR SECTION)

$

$

Not available

1

Simplicity 927698

RING, Snap

$

$

Not available

2

Simplicity 2827732SM

RING, Snap
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

3

Simplicity 2066453

BEARING, Ball

$

$

Not available

4

Simplicity 2066494

SHAFT, Pump

$

$

Not available

4

Simplicity 2805850SM

KEY, Shaft

$

$

Not available

5

Simplicity 2066478

SPACER, Bearing

$

$

Not available

6

Simplicity 1120060

SEAL, Shaft

$

$

Not available

7

Simplicity 2066483

HOUSING, Pump

$

$

Not available

8

Simplicity 2066479

YOKE

$

$

Not available

8

Simplicity 2066500

PIN, Dowel

$

$

Not available

9

Simplicity 2066455

PLUG

$

$

Not available

10

Simplicity 2066488

ROD, Control

$

$

Not available

11

Simplicity 2066466

O-RING

$

$

Not available

12

Simplicity 2066474

GASKET, Valve Plate

$

$

Not available

13

Simplicity 2066472

BEARING, Needle

$

$

Not available

14

Simplicity 2066512

PLATE ASSEMBLY, Valve (Includes Item 13)

$

$

Not available

14

Simplicity 924100

CAPSCREW

$

$

Not available

14

Simplicity 2066470

PIN, Dowel

$

$

Not available

15

Simplicity 2066506

CONNECTOR

$

$

Not available

16

Simplicity 2066459

O-RING

$

$

Not available

17

Simplicity 2066505

SPRING

$

$

Not available

18

Simplicity 2066507

SPACER

$

$

Not available

19

Simplicity 2066508

POPPET

$

$

Not available

20

Simplicity 2066467

O-RING

$

$

Not available

21

Simplicity 2066480

PLUG

$

$

Not available

22

Simplicity 917947

PIN

$

$

Not available

23

Simplicity 2066489

VALVE, Ball Check

$

$

Not available

24

Simplicity 2066492

SPRING

$

$

Not available

25

Simplicity 2066450

PLUG

$

$

Not available

26

Simplicity 923379

O-RING

$

$

Not available

27

Simplicity 2066495

POPPET

$

$

Not available

28

Simplicity 2066501

SPRING

$

$

Not available

29

Simplicity 2066497

SHIM (Use As Required)

$

$

Not available

30

Simplicity 2066460

O-RING

$

$

Not available

31

Simplicity 2066496

CAP

$

$

Not available

32

Simplicity 2066487

CAP

$

$

Not available

33

Simplicity 2066491

SPRING

$

$

Not available

34

Simplicity 2066486

PIN ASSEMBLY

$

$

Not available

35

Simplicity 2066509

SPRING

$

$

Not available

36

Simplicity 2066510

SEAT, Spring

$

$

Not available

37

Simplicity 2066485

POPPET ASSEMBLY

$

$

Not available

38

Simplicity 926107

CAPSCREW

$

$

Not available

39

Simplicity 910339

SCREW

$

$

Not available

40

Simplicity 2066499

BLOCK, Transfer

$

$

Not available

41

Simplicity 2066481

PLUG

$

$

Not available

42

Simplicity 2066503

GUIDE, Spring

$

$

Not available

43

Simplicity 2066504

VALVE, Check

$

$

Not available

44

Simplicity 2066502

SPRING

$

$

Not available

45

Simplicity 2066473

PIN

$

$

Not available

46

Simplicity 2066518

VALVE REPAIR KIT (Includes 41 To 45)

$

$

Not available

47

Simplicity 2066515

GEROTOR Kit, (Includes KEY)

$

$

Not available

47

Simplicity 2066493

KEY, Gerotor

$

$

Not available

48

Simplicity 2066517

CYLINDER KIT (Includes PISTONS)

$

$

Not available

49

Simplicity 2066514

PUMP REPAIR KIT

$

$

Not available
