410 (1600258) - AGCO Lawn Tractor, 10hp Fuel System Group (1506I03) Parts Diagram

Lawn Tractor, 10hp

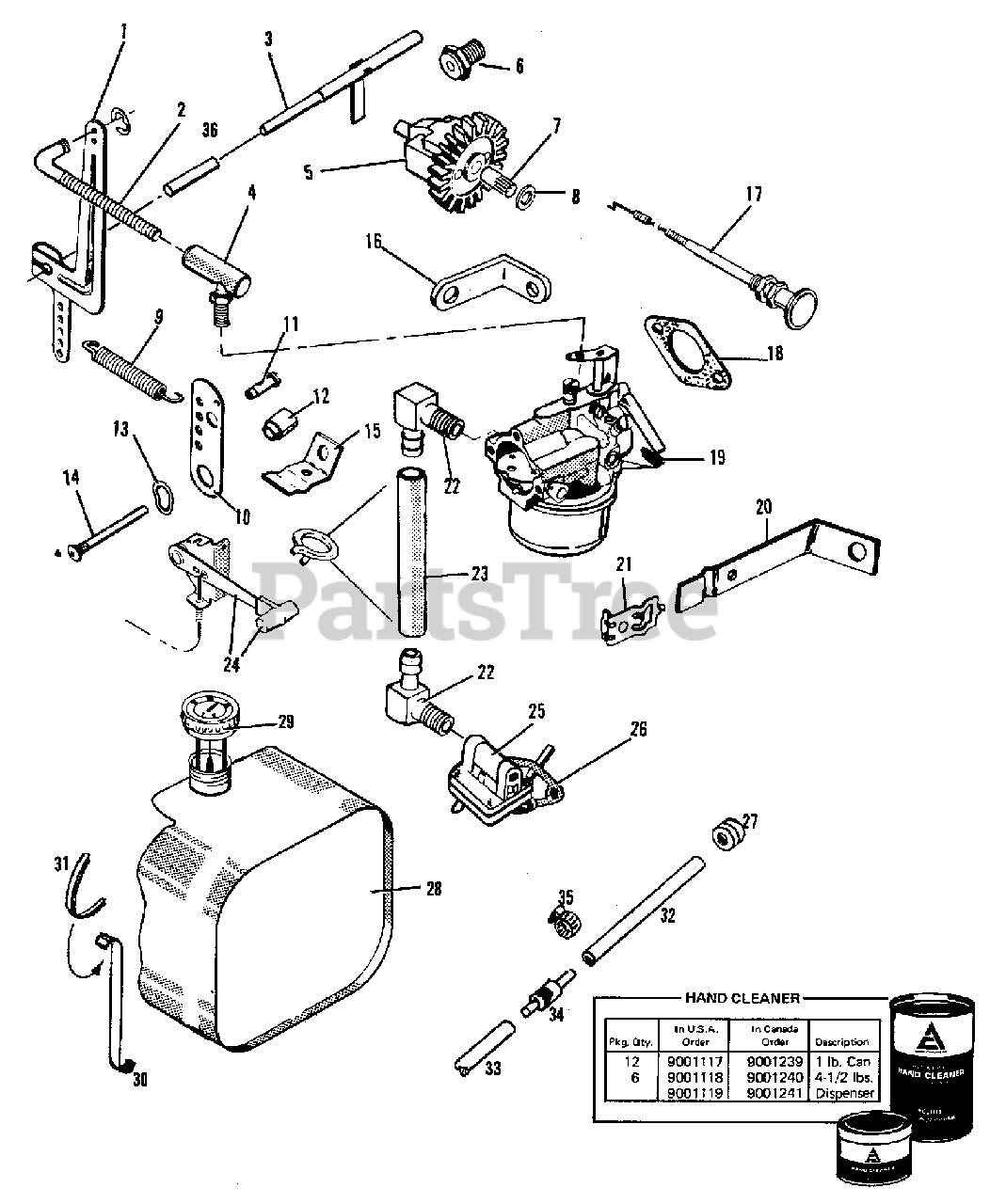

Fuel System Group (1506I03) Parts Diagram

  • Title

1

Simplicity 2066348

LEVER, Governor (10 & 14 HP)

$

$

Not available

1

Simplicity 2068006

LEVER, Governor (16 HP)

$

$

Not available

1

Simplicity 2821961

SCREW, 1/4NC x 1-1/4

$

$

Not available

1

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2066336

ROD, Throttle

$

$

Not available

2

Simplicity 2066337

RETAINER, Rod

$

$

Not available

3

Simplicity 2068004

SHAFT ASSEMBLY, Governor Cross

$

$

Not available

4

Simplicity 2066443

JOINT ASSEMBLY, Ball

$

$

Not available

4

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

4

Simplicity 922273

WASHER

$

$

Not available

4

Simplicity 2817415

NUT, #10NF

$

$

Not available

5

Simplicity 2068171

GEAR ASSEMBLY

$

$

Not available

5

Simplicity 2068005

WASHER

$

$

Not available

6

Simplicity 2066347

BUSHING

$

$

Not available

7

Simplicity 2066331

SHAFT, Governor

$

$

Not available

8

Simplicity 2068005

WASHER, Thrust

$

$

Not available

9

Simplicity 2066349

SPRING, Governor

$

$

Not available

10

Simplicity 2066326

BRACKET, Speed Control

$

$

Not available

11

Simplicity 2066306

PIN, Wire Swivel

$

$

Not available

11

Simplicity 2821958

SCREW, 1/4NC x 1/4

$

$

Not available

11

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

12

Simplicity 2066325

SPACER

$

$

Not available

13

Simplicity 2068008

WASHER, Tension

$

$

Not available

14

Simplicity 2066307

PIN, Governor Stop

$

$

Not available

15

Simplicity 2066376

BRACKET, Throttle (10 & 14 HP)

$

$

Not available

15

Simplicity 2068007

BRACKET, Throttle (16 HP)

$

$

Not available

15

Simplicity 920241

SCREW, #10NC x 3/8

$

$

Not available

15

Simplicity 1909055SM

LOCKWASHER, #10 Intermediate Tooth

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 2066324

BRACKET, Adjusting Screw

$

$

Not available

17

Simplicity 1602792SM

CHOKE ASSEMBLY, Carburetor Air

$68.99

$

Usually ships in 2-12 days

0

18

Simplicity 2067146

GASKET, Carburetor (Included In Engine Gasket Set)

$

$

Not available

19

Simplicity 2066322

CARBURETOR ASSEMBLY (10 HP)

$

$

Not available

19

Simplicity 2066523

CARBURETOR ASSEMBLY (14 HP)

$

$

Not available

19

Simplicity 2067787

CARBURETOR ASSEMBLY (16 HP)

$

$

Not available

19

Simplicity 2821319SM

WASHER, 1/4 (Carburator Baffle To Cylinder Head)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2066308

REPAIR KIT, Carburetor

$

$

Not available

20

Simplicity 2067788

BRACKET, Choke

$

$

Not available

21

Simplicity 2066438

CLIP, Choke Cable (Except 14 H.P.)

$

$

Not available

22

Simplicity 2066435

ELBOW, Hose

$

$

Not available

23

Simplicity 2066300

HOSE, Fuel (Pump To Carburetor)

$

$

Not available

23

Simplicity 921910

CLAMP, Hose, 7/16 to 35/32

$

$

Not available

24

Simplicity 1602791SM

LEVER ASSEMBLY, Throttle Control

$79.99

$

Usually ships in 2-12 days

0

24

Simplicity 1610275

KNOB, Handle

$

$

Not available

25

Simplicity 2066363

PUMP ASSEMBLY, Fuel

$

$

Not available

26

Simplicity 2066423

GASKET, Fuel Pump (Included In Engine Gasket Set)

$

$

Not available

27

Simplicity 1602102

GROMMET, Rubber

$

$

Not available

28

Simplicity 1607632

TANK, Fuel

$

$

Not available

29

Simplicity 1607643

CAP, Fuel Tank

$

$

Not available

30

Simplicity 1607635

STRAP, Lower Tank

$

$

Not available

31

Simplicity 2029308

STRAP, Rubber

$

$

Not available

32

Simplicity 1718678SM

HOSE, 6" Fuel

$

$

Not available

33

Simplicity 1608193

HOSE, 11" Fuel

$

$

Not available

34

Simplicity 2029309

FILTER, Fuel

$

$

Not available

35

Simplicity 921911

CLAMP, Hose, 11/16 to 1-1/4

$

$

Not available

36

Simplicity 2068259

SPACER

$

$

Not available
