410 (1600258) - AGCO Lawn Tractor, 10hp Engine Group (1506I02) Parts Diagram

Lawn Tractor, 10hp

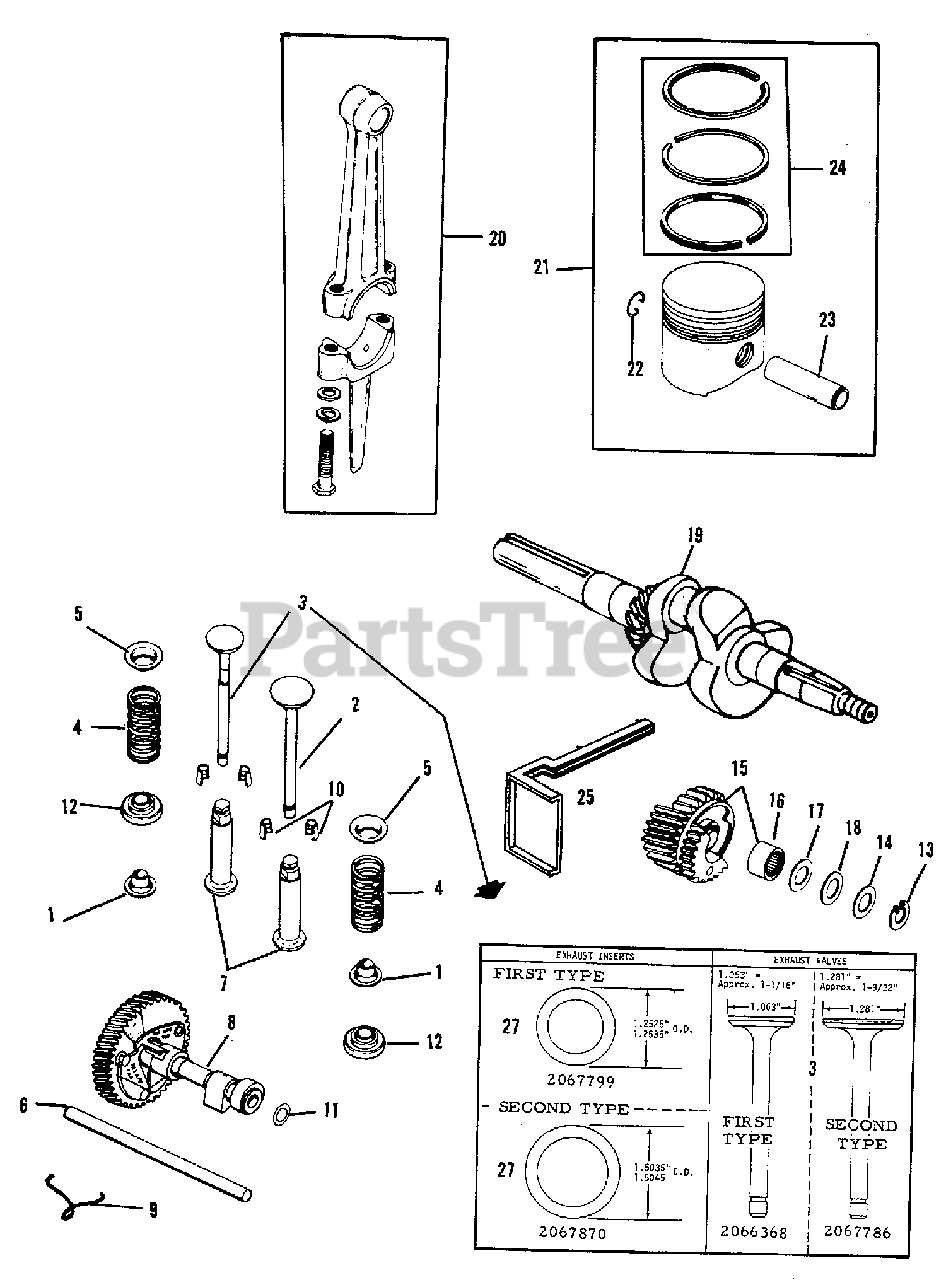

Engine Group (1506I02) Parts Diagram

  • Title

1

Simplicity 2066303

RETAINER, Spring (Not for 16 HP)

$

$

Not available

2

Simplicity 2066313

VALVE, Intermediate (10 HP)

$

$

Not available

2

Simplicity 2066353

VALVE, Intermediate (14 & 16 HP)

$

$

Not available

3

Simplicity 2066365

VALVE, Exhaust (10 HP)

$

$

Not available

3

Simplicity 2066368

VALVE, Exhaust (1-1/16" O.D. For 1st Type 14 HP)

$

$

Not available

3

Simplicity 2067786

VALVE, Exhaust (1-9/32" O.D. For 2nd Type 14 & All 16 HP)

$

$

Not available

4

Simplicity 2066314

SPRING, Valve (10 HP)

$

$

Not available

4

Simplicity 2066334

SPRING, Valve (14 & 16 HP)

$

$

Not available

5

Simplicity 2066315

RETAINER, Upper String

$

$

Not available

6

Simplicity 2066320

PIN, Camshaft

$

$

Not available

7

Simplicity 2066342

TAPPET ASSEMBLY

$

$

Not available

8

Simplicity 2067929

CAMSHAFT, 10 hp & 14 hp (Includes SPRING)

$

$

Not available

8

Simplicity 2067874

CAMSHAFT, 16 HP (Includes SPRING)

$

$

Not available

9

Simplicity 2068263

SPRING, Actuating

$

$

Not available

10

Simplicity 2066422

KEEPER, Valve Keeper (In Pairs)

$

$

Not available

11

Simplicity 2066424

SPACER, Camshaft .005 (Use As Required)

$

$

Not available

11

Simplicity 2066425

SPACER, Camshaft .010 (Use As Required)

$

$

Not available

12

Simplicity 2066304

ROTATOR, Valve

$

$

Not available

13

Simplicity 2066431

RETAINER

$

$

Not available

14

Simplicity 2066380

SPACER

$

$

Not available

15

Simplicity 2066381

GEAR ASSEMBLY, (Includes Item 16)

$

$

Not available

16

Simplicity 2066440

BEARING, Needle

$

$

Not available

17

Simplicity 2066382

SPACER, 10 & 14 HP

$

$

Not available

18

Simplicity 2066383

SPACER, 10 & 14 HP

$

$

Not available

18

Simplicity 2067876

SPACER, 16 HP

$

$

Not available

19

Simplicity 2066378

CRANKSHAFT, 10 HP

$

$

Not available

19

Simplicity 2066393

CRANKSHAFT, 14 HP

$

$

Not available

19

Simplicity 2067875

CRANKSHAFT, 16 HP

$

$

Not available

19

Simplicity 2066433

KEY, Crankshaft

$

$

Not available

20

Simplicity 2066332

CONNECTING ROD, Standard (10 HP)

$

$

Not available

20

Simplicity 2066413

CONNECTING ROD, Standard (14 HP)

$

$

Not available

20

Simplicity 2067877

CONNECTING ROD, Standard (16 HP)

$

$

Not available

20

Simplicity 2066333

CONNECTING ROD, .010 u/s (10 HP)

$

$

Not available

20

Simplicity 2066414

CONNECTING ROD, .010 u/s (14 HP)

$

$

Not available

20

Simplicity 2067998

CONNECTING ROD, .010 u/s (16 HP)

$

$

Not available

20

Simplicity 2066386

SCREW

$

$

Not available

20

Simplicity 2067878

WASHER

$

$

Not available

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 2066354

PISTON, Standard (10 HP)

$

$

Not available

21

Simplicity 2066350

PISTON, .010 (10 HP)

$

$

Not available

21

Simplicity 2066351

PISTON, .020 (10 HP)

$

$

Not available

21

Simplicity 2066355

PISTON, .030 (10 HP)

$

$

Not available

21

Simplicity 2066418

PISTON, Standard (14 HP)

$

$

Not available

21

Simplicity 2066419

PISTON, .010 (14 HP)

$

$

Not available

21

Simplicity 2066420

PISTON, .020 (14 HP)

$

$

Not available

21

Simplicity 2066421

PISTON, .030 (14 HP)

$

$

Not available

21

Simplicity 2068000

PISTON, Standard (16 HP)

$

$

Not available

21

Simplicity 2068001

PISTON, .010 (16 HP)

$

$

Not available

21

Simplicity 2068002

PISTON, .020 (16 HP)

$

$

Not available

21

Simplicity 2068003

PISTON, .030 (16 HP)

$

$

Not available

22

Simplicity 2066312

RETAINER, Pin (10 HP)

$

$

Not available

22

Simplicity 2066364

RETAINER, Pin (14 & 16 HP)

$

$

Not available

23

Simplicity 2066352

PIN, Piston (10 HP)

$

$

Not available

23

Simplicity 2066362

PIN, Piston (14 HP)

$

$

Not available

23

Simplicity 2067879

PIN, Piston (16 HP)

$

$

Not available

24

Simplicity 2066338

RING SET, Standard (10 HP)

$

$

Not available

24

Simplicity 2066339

RING SET, .010 (10 HP)

$

$

Not available

24

Simplicity 2066340

RING SET, .020 (10 HP)

$

$

Not available

24

Simplicity 2066341

RING SET, .030 (10 HP)

$

$

Not available

24

Simplicity 2066394

RING SET, Standard (14 HP)

$

$

Not available

24

Simplicity 2066395

RING SET, .010 (14 HP)

$

$

Not available

24

Simplicity 2066396

RING SET, .020 (14 HP)

$

$

Not available

24

Simplicity 2066397

RING SET, .030 (14 HP)

$

$

Not available

24

Simplicity 2067790

RING SET, Standard (16 HP)

$

$

Not available

24

Simplicity 2067791

RING SET, .010 (16 HP)

$

$

Not available

24

Simplicity 2067792

RING SET, .020 (16 HP)

$

$

Not available

24

Simplicity 2067793

RING SET, .030 (16 HP)

$

$

Not available

25

Simplicity 2067170

TOOL, Guage (For Balance Weights On Chrankshaft Gear)

$

$

Not available

26

Simplicity 2067801

GUIDE, Valve

$

$

Not available

27

Simplicity 2067799

INSERT, Exhaust Valve (10 & 14 HP w/ 1-1/16 O.D. Exhaust Valve)

$

$

Not available

27

Simplicity 2067870

INSERT, Exahust & Intermediate Valve (Once Use As Exhaust Insert f/14 HP With 1-9/32" O.D. Exhaust Valve & 2 Used as Exhause & Intermediate On 16 HP)

$

$

Not available
