41 - Husqvarna Chainsaw (SN: 19941800001 & Above) CYLINDER PISTON Parts Diagram

Chainsaw

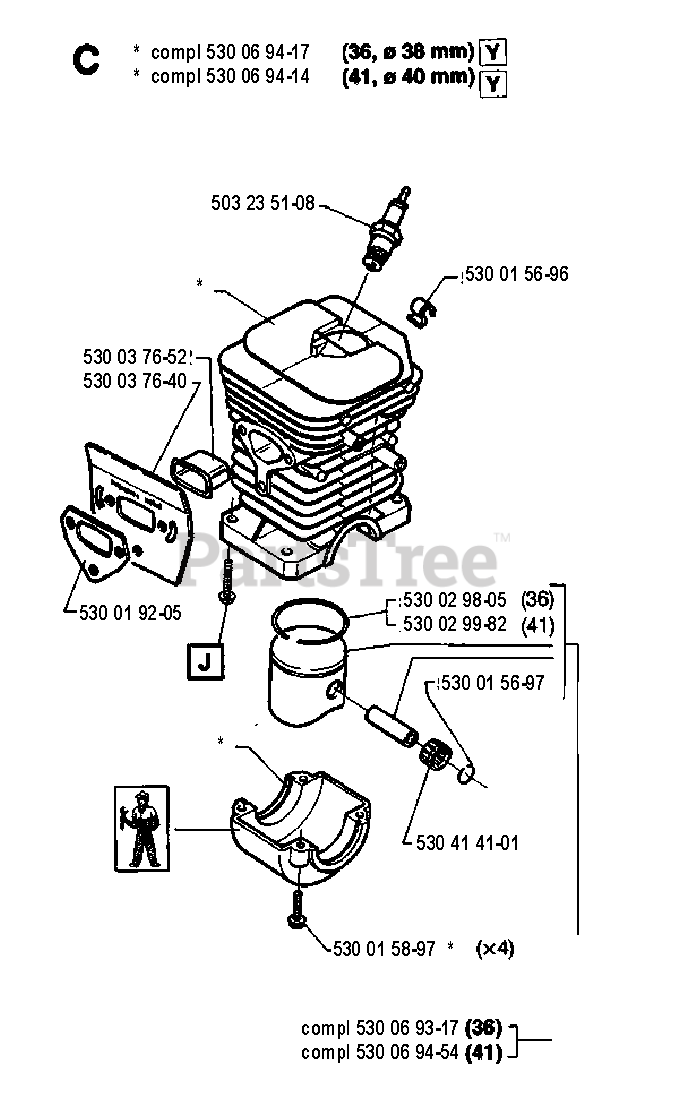

CYLINDER PISTON Parts Diagram

  • Title

530 01 92-05

Husqvarna 530019205

GASKET

$6.49

$

In Stock, only 3 left!

0

530 02 99-82

Husqvarna 530029982

PISTON RING HV41
(Superseded to 537400001)

Note: 41

$17.99

$

In Stock, only 1 left!

0

530 06 94-54

Husqvarna 530069454

KIT-PISTON

Note: 41

$

$

Not available

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

530 06 94-17

Husqvarna 530069417

CYLINDER 36CC
(Superseded to 530069940)

Note: 36, DIA. 38 MM

$

$

Not available

530 03 76-40

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

530 41 41-01

Husqvarna 530414101

IPL ERROR/USE 503 41 41-01

$

$

Not available

530 06 94-14

Husqvarna 530069414

CYLINDER (40CC)
(Superseded to 530069941)

Note: 41, DIA. 40 MM

$

$

Not available

530 06 93-17

Husqvarna 530069317

PISTON COMPL. HV36
(Superseded to 530069944)

Note: 36

$

$

Not available

530 02 98-05

Husqvarna 530029805

PISTON RING 36

Note: 36

$6.49

$

In Stock, Qty 17

0

530 01 56-96

Husqvarna 530015696

CLIP - HIGH TENSION LE

$

$

Not available

530 03 76-52

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

530 01 56-97

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

530 01 58-97

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0
