41 - Husqvarna Chainsaw (SN: 19912200001 - 19941800000) CHAIN BRAKE Parts Diagram

Chainsaw

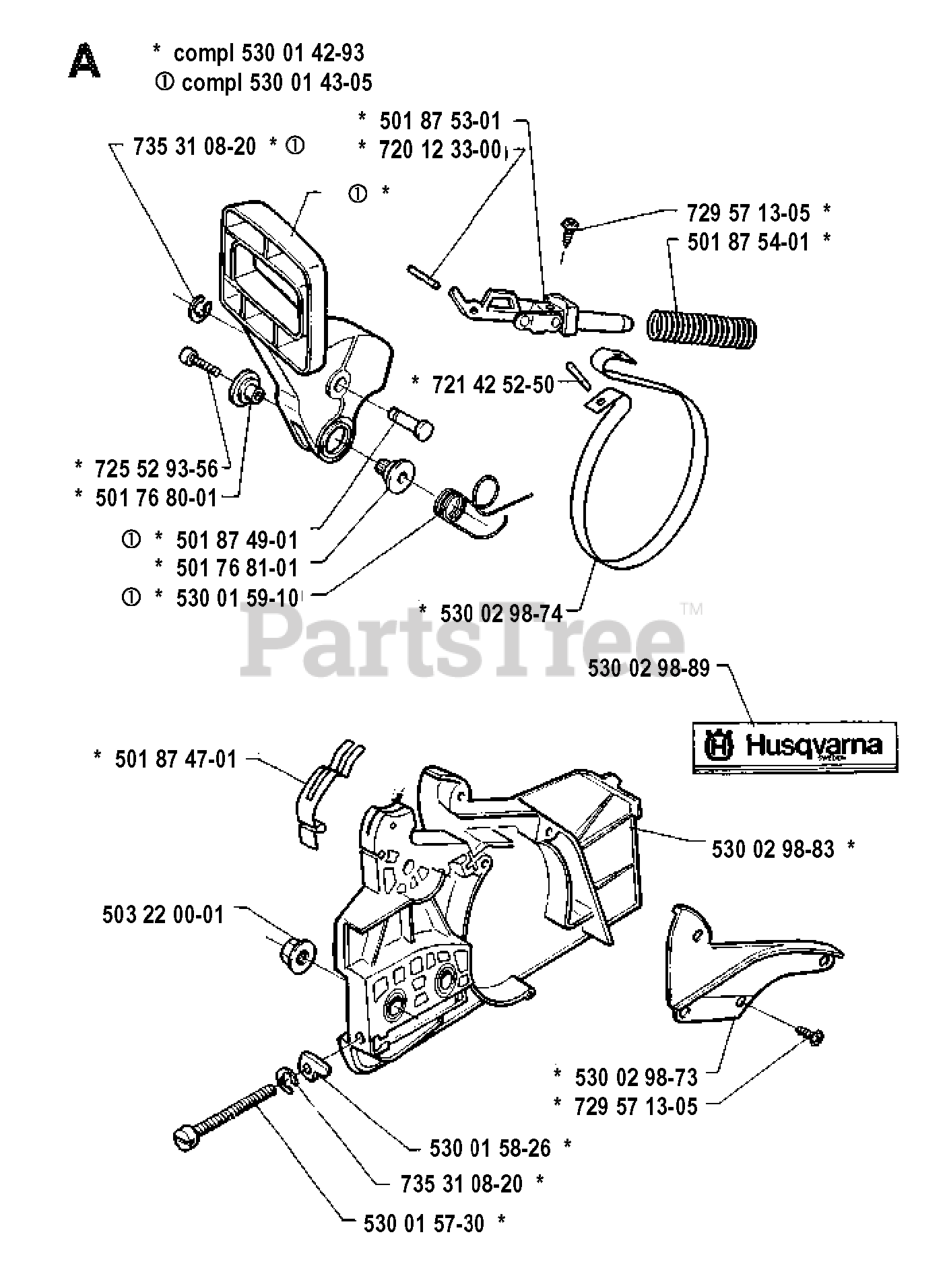

CHAIN BRAKE Parts Diagram

  • Title

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

530 01 43-05

Husqvarna 530014305

BRAKE HANDLE ASS'Y 36/41
(Superseded to 530071348)

$26.99

$

In Stock, only 1 left!

0

530 02 98-89

Husqvarna 530029889

DECAL
(Superseded to 503768101)

$4.99

$

In Stock, only 1 left!

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

720 12 33-00

Husqvarna 720123300

PIN 3X10

$3.49

$

In Stock, only 4 left!

0

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

530 01 58-26

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 13

0

501 87 54-01

Husqvarna 501875401

SPRING

$

$

Not available

530 01 57-30

Husqvarna 530015730

TENSION SCREW 36/41
(Superseded to 530016110)

$4.99

$

In Stock, Qty 20+

0

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 5

0

530 02 98-74

Husqvarna 530029874

BRAKE BAND 36/41
(Superseded to 545137401)

$7.49

$

In Stock, Qty 16

0

729 57 13-05

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.99

$

In Stock, Qty 20+

0

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 1 left!

0

530 02 98-83

Husqvarna 530029883

SIDE COVER 36/41
(Superseded to 530053173)

$

$

Not available

501 87 47-01

Husqvarna 501874701

SPRING

$4.99

$

In Stock, Qty 11

0

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

In Stock, only 1 left!

0

530 01 42-93

Husqvarna 530014293

CHN BRK ASS'Y CPL. 36/41
(Superseded to 530053173)

$

$

Not available

530 01 59-10

Husqvarna 530015910

SPRING,BRK HDL 36/41

$6.49

$

In Stock, only 2 left!

0

530 02 98-73

Husqvarna 530029873

SPRING RETAINER
(Superseded to 530053173)

$

$

Not available

501 76 81-01

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available
