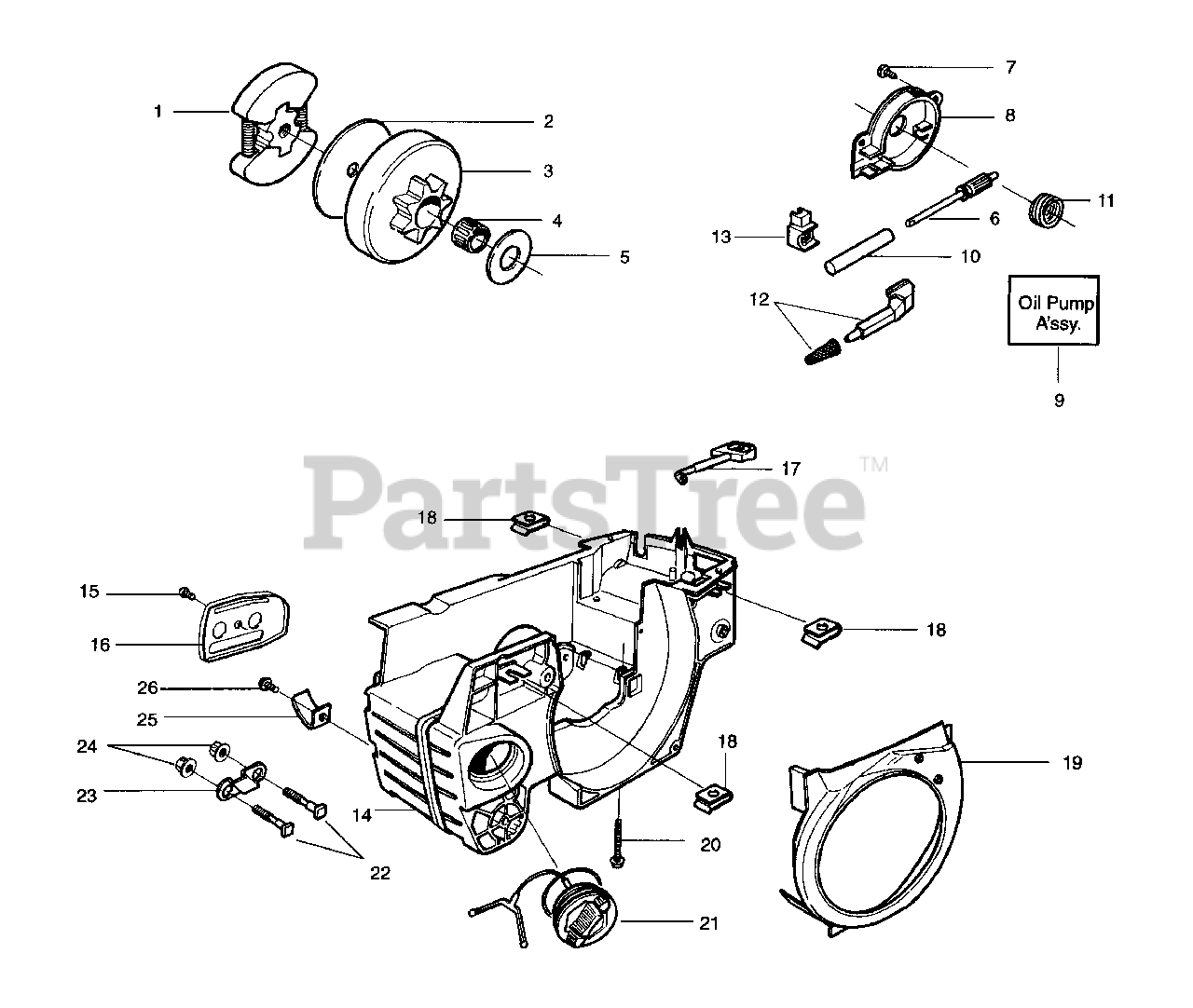

41 - Husqvarna Chainsaw (1997-07) Oil Pump Assembly, Crankcase Parts Diagram

Chainsaw

Oil Pump Assembly, Crankcase Parts Diagram

  • Title

1

Husqvarna 530014949

Clutch Assembly

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 530015611

Clutch Washer

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 530047061

Clutch Drum

$17.99

$

In Stock, Qty 5

0

Husqvarna 530069316

Clutch Drum - (325)

$

$

Not available

4

Husqvarna 530032119

Clutch Bearing

$10.99

$

In Stock, Qty 5

0

5

Husqvarna 530015907

Thrust Washer

$

$

Not available

6

Husqvarna 530029838

Plunger & Gear Assembly
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

7

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

8

Husqvarna 530029835

Oil Pump Housing
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

9

Husqvarna 530014410

Oil Pump Assembly
(Superseded to 545036801)

Note: (Includes 8, 10 & 27)

$20.99

$

In Stock, Qty 8

0

10

Husqvarna 530029834

Oil Pump Barrel
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

11

Husqvarna 530029833

Oil Pump Worm

$8.99

$

In Stock, Qty 12

0

12

Husqvarna 530014776

Oil Pick-Up and Screen Assembly
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

13

Husqvarna 530019174

Oil Seal
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

14

Husqvarna 530037484

Chassis & Tank Assy.
(Superseded to 530069887)

$

$

Not available

15

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

16

Husqvarna 530047855

Bar Plate

$

$

Not available

17

Husqvarna 530029831

Choke Lever

$

$

Not available

18

Husqvarna 530015922

Type "U" Speed Nut

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 530029800

Baffle Plate

$

$

Not available

20

Husqvarna 530016037

Screw

$

$

Not available

21

Husqvarna 501765602

Oil Cap

$10.99

$

In Stock, Qty 5

0

22

Husqvarna 530015877

Bar Bolt

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 530036043

Bar Stud Plate

$5.99

$

In Stock, only 3 left!

0

24

Husqvarna 503220001

Nut

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

26

Husqvarna 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0
