41 - Husqvarna Chainsaw (1997-07) Air Filter/Carburetor, Muffler, Crankshaft Parts Diagram

Chainsaw

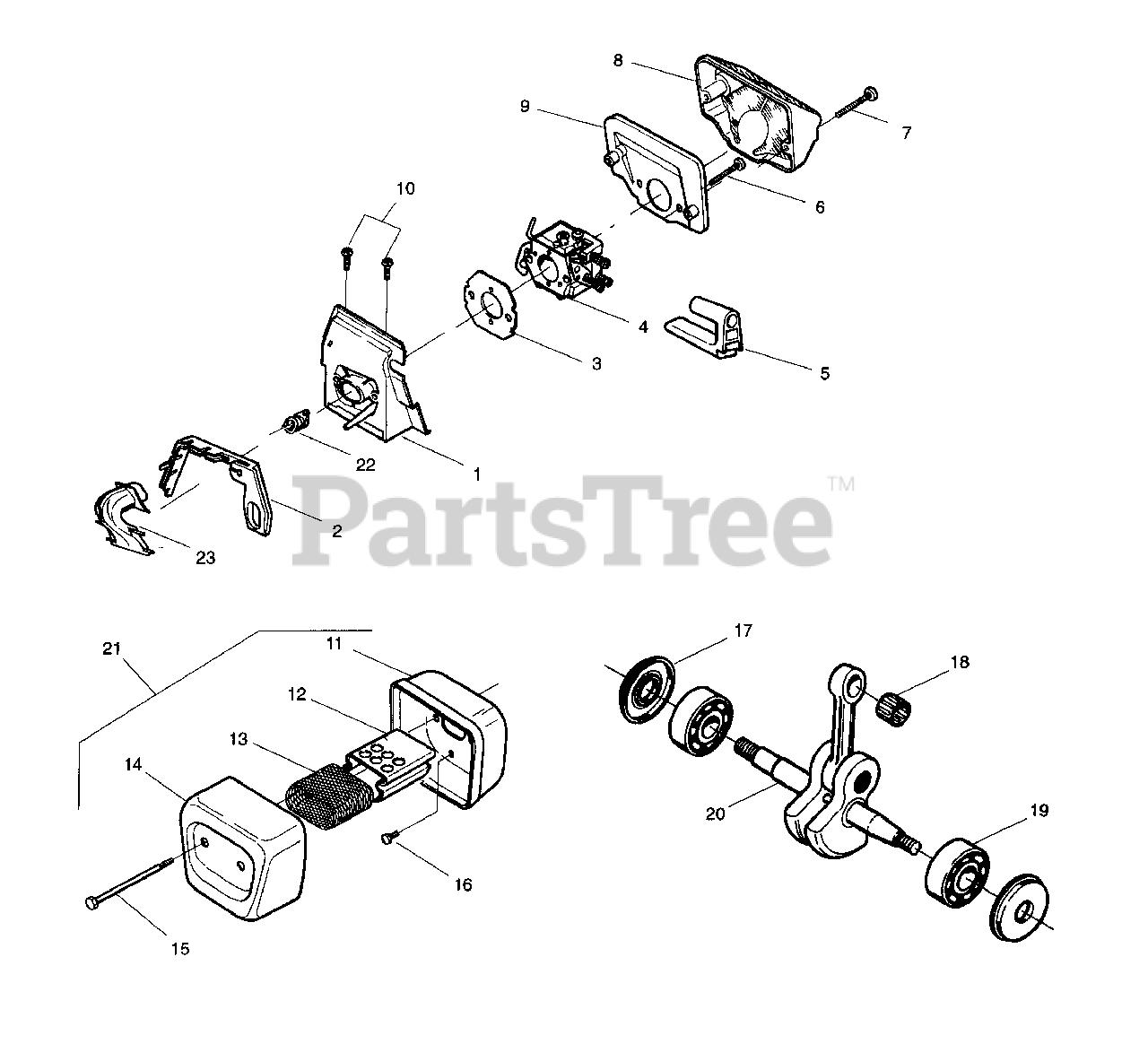

Air Filter/Carburetor, Muffler, Crankshaft Parts Diagram

  • Title

1

Husqvarna 530037465

Cam-Adaptor

$

$

Not available

2

Husqvarna 530019203

Turbo Clean Seal

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530019172

Carburetor Gasket

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 530035382

Carburetor
(Superseded to 545013503)

$

$

Not available

5

Husqvarna 530037466

Grommet-Final
(Superseded to 530029815)

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 530015968

Screw

$

$

Not available

7

Husqvarna 530015899

Screw

$6.49

$

In Stock, Qty 11

0

8

Husqvarna 530029811

Air-Filter - Top

$

$

Not available

9

Husqvarna 530036582

Bottom

$

$

Not available

10

Husqvarna 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 16

0

11

Husqvarna 530037251

Muffler Body

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530037246

Muffler Diffuser

$6.99

$

In Stock, Qty 5

0

13

Husqvarna 530029810

Spark Arrestor Screen

$8.99

$

In Stock, Qty 6

0

14

Husqvarna 530037254

Muffler Cover

$12.99

$

In Stock, only 4 left!

0

15

Husqvarna 530016044

Screw

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 530015902

Muffler Bolt

$4.99

$

In Stock, Qty 6

0

17

Husqvarna 530019170

Crankshaft Seat

$6.49

$

In Stock, Qty 9

0

18

Husqvarna 530032117

Piston Pin Bearing

$

$

Not available

19

Husqvarna 530032118

Crankshaft Bearing

$

$

Not available

20

Husqvarna 530029794

Crankshaft & Rod Assembly
(Superseded to 503920801)

$

$

Not available

21

Husqvarna 530069415

Muffler Kit

Note: (Includes 11, 12, 14 & 15)

$43.99

$

In Stock, only 3 left!

0

22

Husqvarna 530029814

Intake Sleeve

$13.99

$

In Stock, Qty 8

0

23

Husqvarna 530029813

Turbo Air Cleaner Assembly

$

$

Not available
