41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) STARTER COMPONENTS Parts Diagram

Garden Tractor

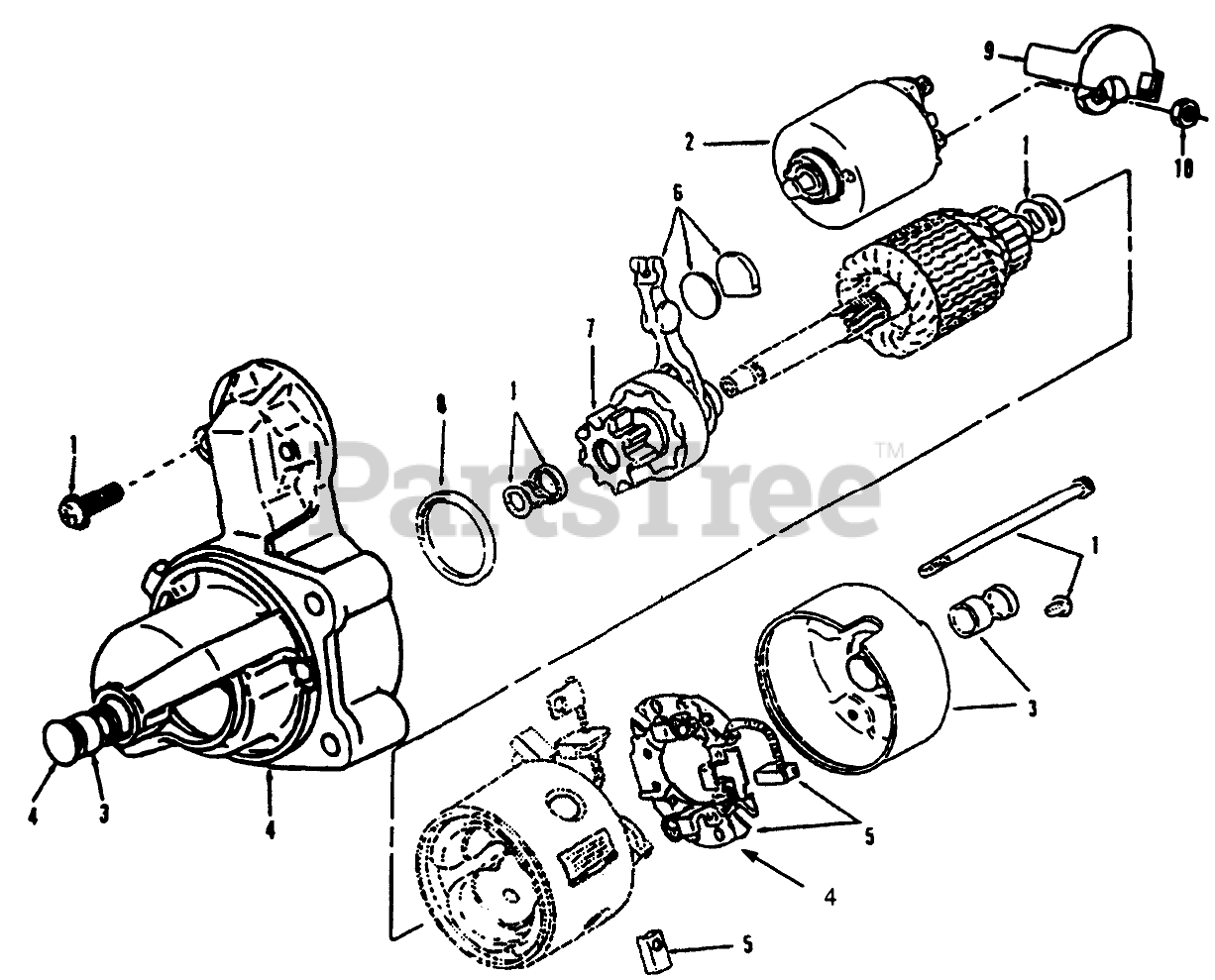

STARTER COMPONENTS Parts Diagram

  • Title
1

Toro 62-2760

Kit-Hardware, Starter (Includes (2) Solenoid Mtg Screws, 2 Thru Bolts, Armature Shims, Pinion Collar, & Retaining Ring)

$

$

Not available

2

Toro NN10887

Kit-Solenoid, Starter (Includes Solenoid & Spring Plunger)
(Superseded to 72-3930)

$

$

Not available

3

Toro 62-2760

Kit-Bushing, Starter (Includes Rear Cap with Bushing & Front Bushing)

$

$

Not available

4

Toro NN10929

Kit-Mounting Bracket (Incl. Ref. #5)

$528.99

$

Usually ships in 3-6 days

0

5

Toro NN10263

Kit-Brush, Starter (Includes (2) Negative & (1) Positive Brushes)
(Superseded to 62-2740)

$

$

Not available

6

Toro NN10266

Kit-Shift Lever, Starter (Includes Lever, Wear Plate & Rubber Plug)
(Superseded to 62-2770)

$

$

Not available

7

Toro NN10270

Clutch Assembly-Starter (Includes Pinion Gear)
(Superseded to 72-3940)

$

$

Not available

8

Toro NN10271

Dust Seal
(Superseded to NN10886)

$

$

Not available

9

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

10

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available
