41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

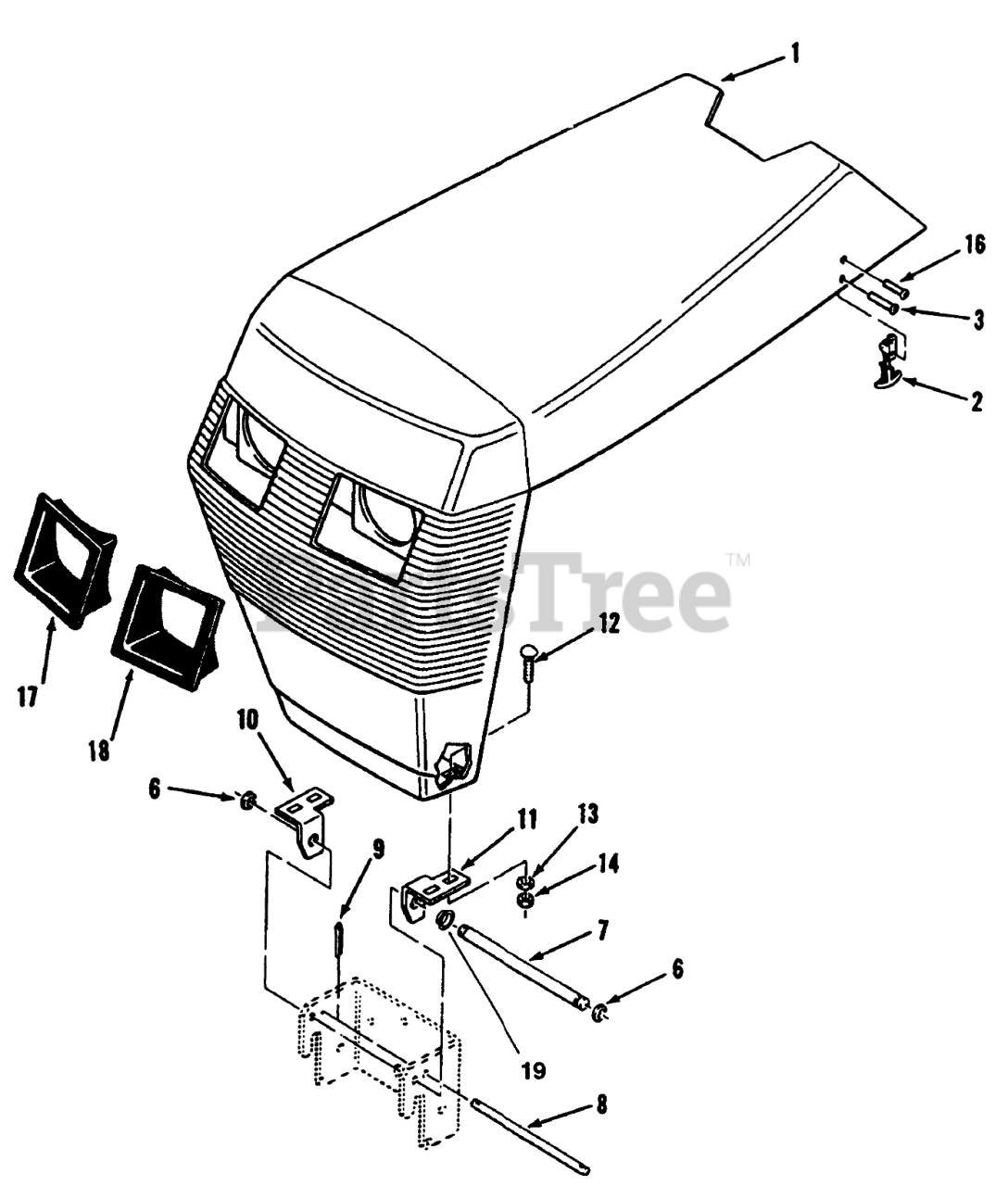

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 114709

SERV.ASSY-HOOD & PKG

$

$

Not available

2

Toro 117341

LATCH-FLEX BLK ASS'Y

$

$

Not available

3

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 116745

ROD-GRILL PIVOT

$14.99

$

In Stock, only 2 left!

0

8

Toro 101850

ROD-HOOD STOP

$18.99

$

Usually ships in 3-6 days

0

9

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

10

Toro 116746

BRACKET-GRILL, R H

$11.99

$

In Stock, Qty 11

0

11

Toro 116747

BRACKET-GRILL, LH

$11.99

$

In Stock, Qty 6

0

12

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

16

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

17

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available

18

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

19

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 16

0
