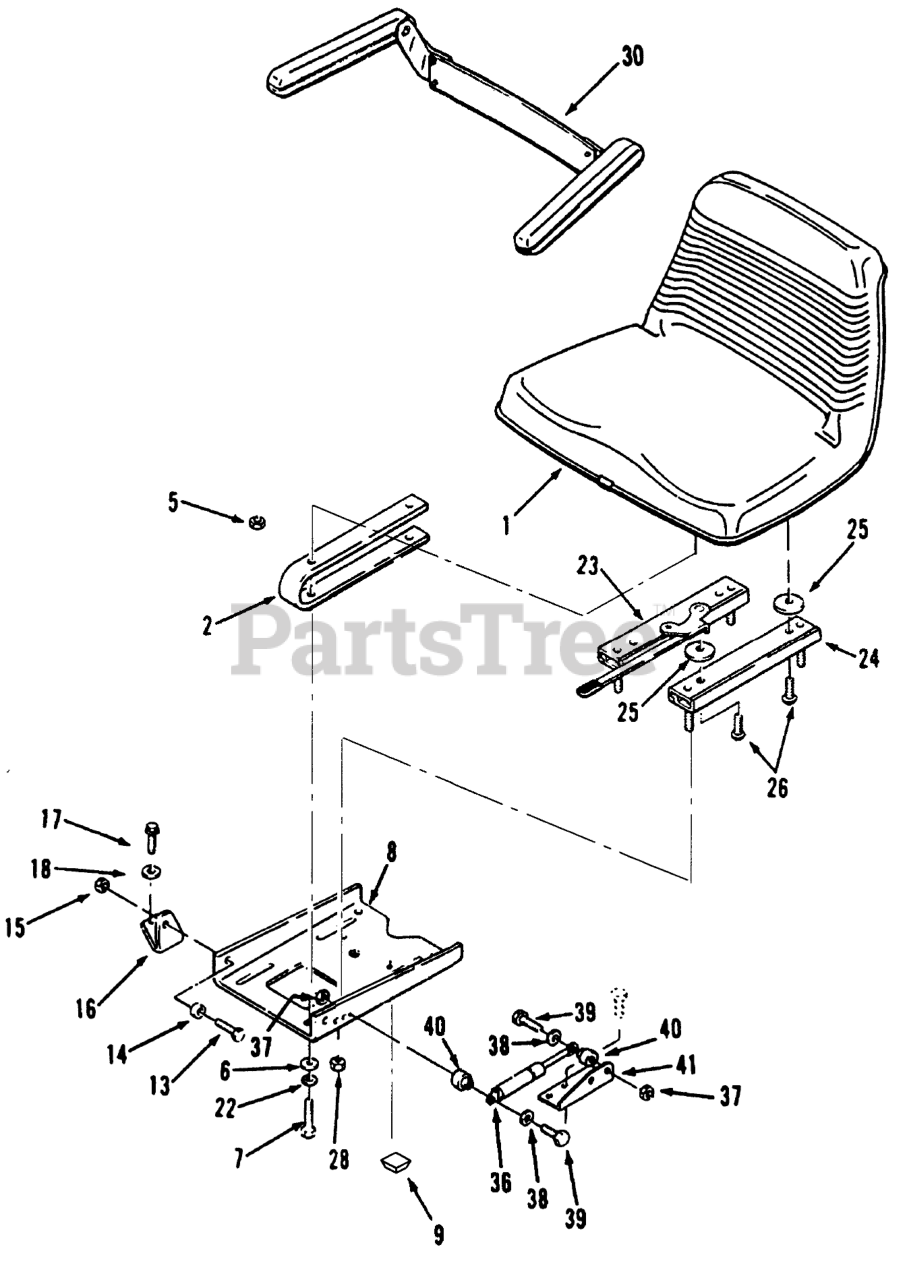

41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SEAT Parts Diagram

Garden Tractor

SEAT Parts Diagram

  • Title

1

Toro 79-3700

Seat
(Superseded to 79-3690)

$

$

Not available

2

Toro 114263

Seat Spring
(Superseded to 114263-03)

$195.99

$

In Stock, only 1 left!

0

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

9

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

13

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 112744

Bracket-Pivot RH

$

$

Not available

Toro 112745

BRACKET-PIVOT L.H B

$

$

Not available

17

Toro 913464

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 114264

Adjuster-Seat
(Superseded to 93-0319)

$

$

Not available

24

Toro 114265

ADJUSTER-R.H. SEAT

$

$

Not available

25

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

26

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

28

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

30

Toro 112293

KIT-ARMREST

$

$

Not available

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

40

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

41

Toro 114345

BRACKET-CYLINDER R

$

$

Not available
