41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) IGNITION-ELECTRONIC Parts Diagram

Garden Tractor

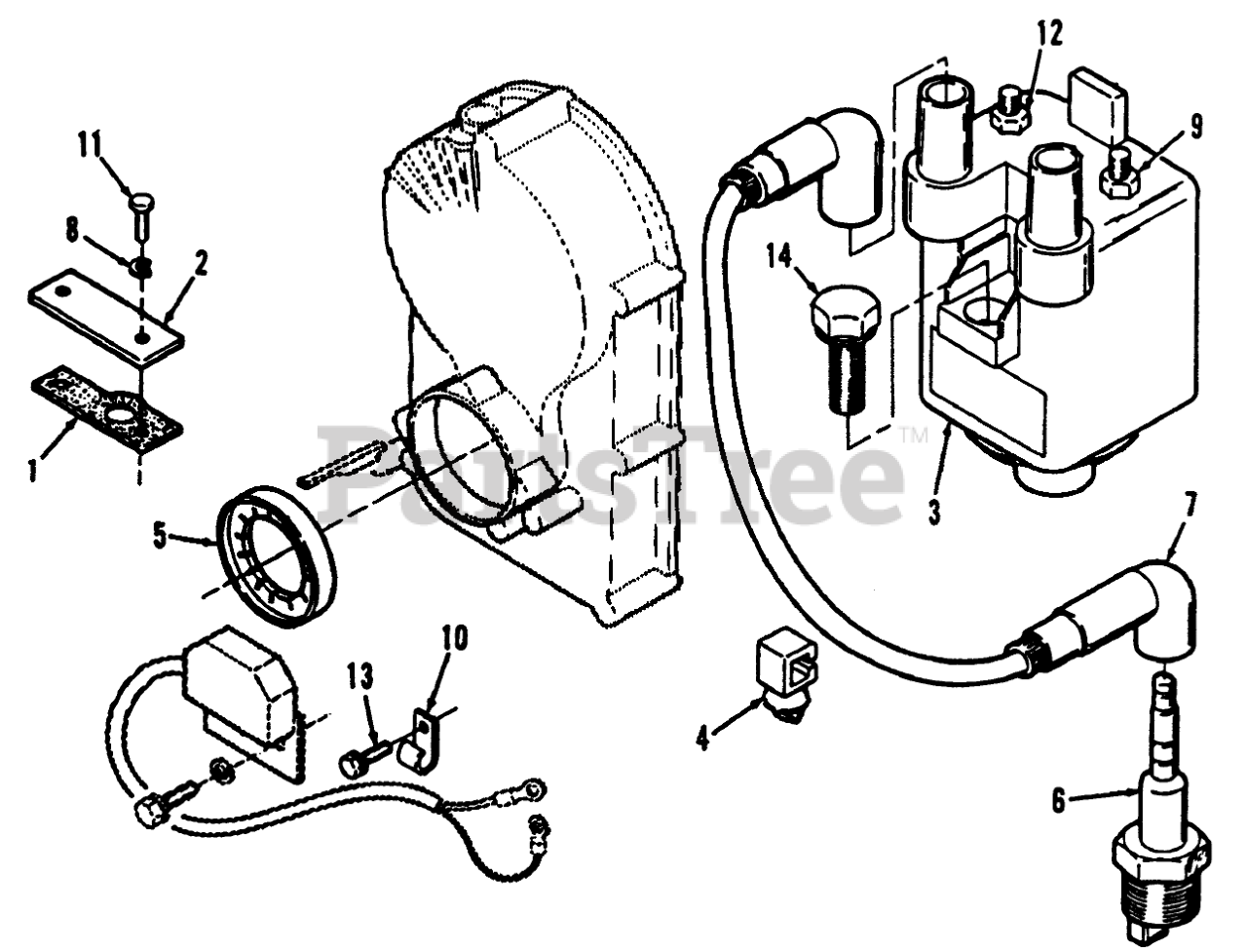

IGNITION-ELECTRONIC Parts Diagram

  • Title

1

Toro 79-6490

Gasket-Plate
(Superseded to 57-9260)

$

$

Not available

2

Toro NN10515

Plate
(Superseded to 71-5990)

$

$

Not available

3

Toro NN10245

Coil-Battery Ignition (Includes Nuts)
(Superseded to 71-6000)

$

$

Not available

4

Toro NN10522

Clip
(Superseded to 71-6060)

$

$

Not available

5

Toro NN10247

Rotor
(Superseded to 71-6010)

$107.99

$

Usually ships in 3-6 days

0

6

Toro NN10517

Plug-Spark
(Superseded to 57-9340)

$3.49

$

In Stock, only 4 left!

0

7

Toro NN10253

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

8

Toro 82-1340

WASHER-FLAT

$

$

Not available

9

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

10

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

11

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

12

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

13

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available

14

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available
