41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) AIR CLEANER Parts Diagram

Garden Tractor

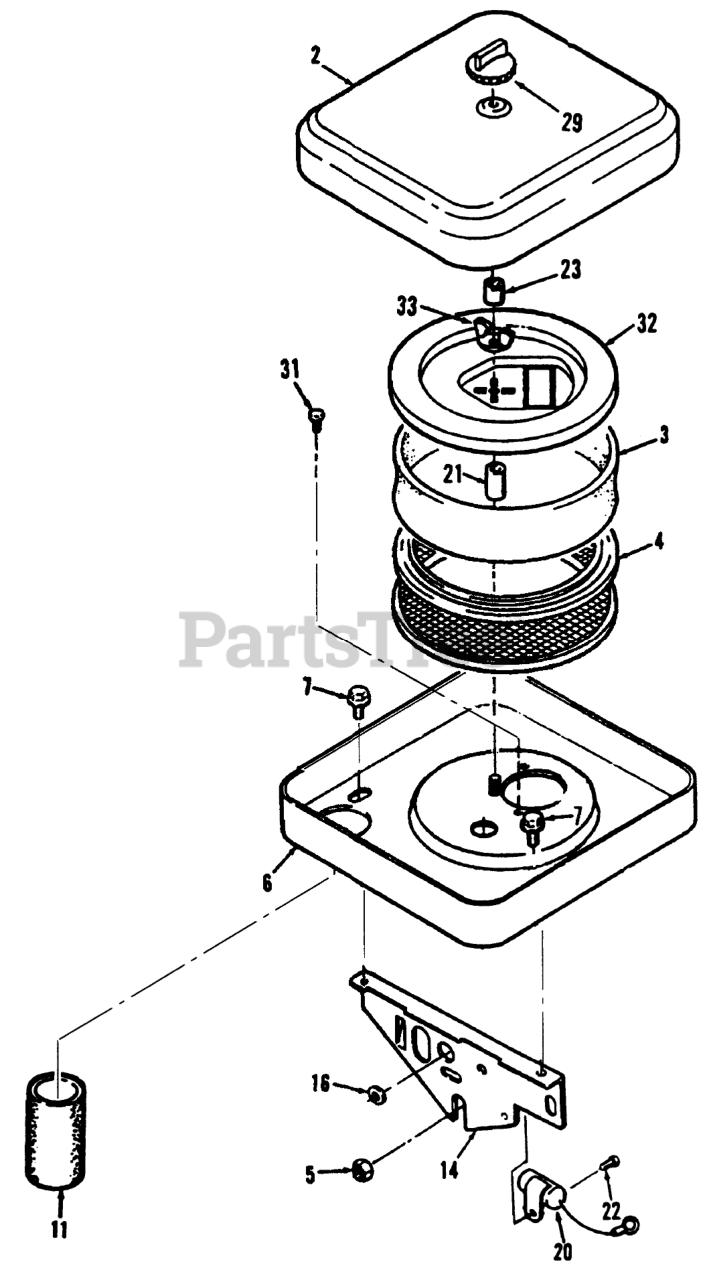

AIR CLEANER Parts Diagram

  • Title

2

Toro NN10446

CHROME-AIR CLEANER

$

$

Not available

3

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

4

Toro NN10896

Element-Air Cleaner
(Superseded to NN10774)

$50.99

$

In Stock, only 2 left!

0

5

Toro 82-1640

Washer
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

6

Toro 79-6330

AIR-CLEANER HOUSING

$

$

Not available

7

Toro 82-1550

SCREW-TAPPING

$

$

Not available

11

Toro NN10187

AIR INTAKE TUBE

$

$

Not available

14

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

16

Toro NN10309

Grommet
(Superseded to 71-6140)

$

$

Not available

20

Toro NN10276

Condenser
(Superseded to 59-1180)

$42.99

$

In Stock, only 1 left!

0

21

Toro 79-6510

SPACER-1" LG

$

$

Not available

22

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available

23

Toro 79-6520

SPACER-RUBBER

$

$

Not available

29

Toro 82-1670

KNOB

$

$

Not available

31

Toro 92-0915

MACHINE SCREW

$

$

Not available

32

Toro 92-0914

Cover-Element
(Superseded to 82-0650)

$

$

Not available

33

Toro 92-0913

1/4-20 WING NUT

$

$

Not available
