41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TORO POWER PLUS CARBURETOR COMPONENTS-GASOLINE Parts Diagram

Garden Tractor

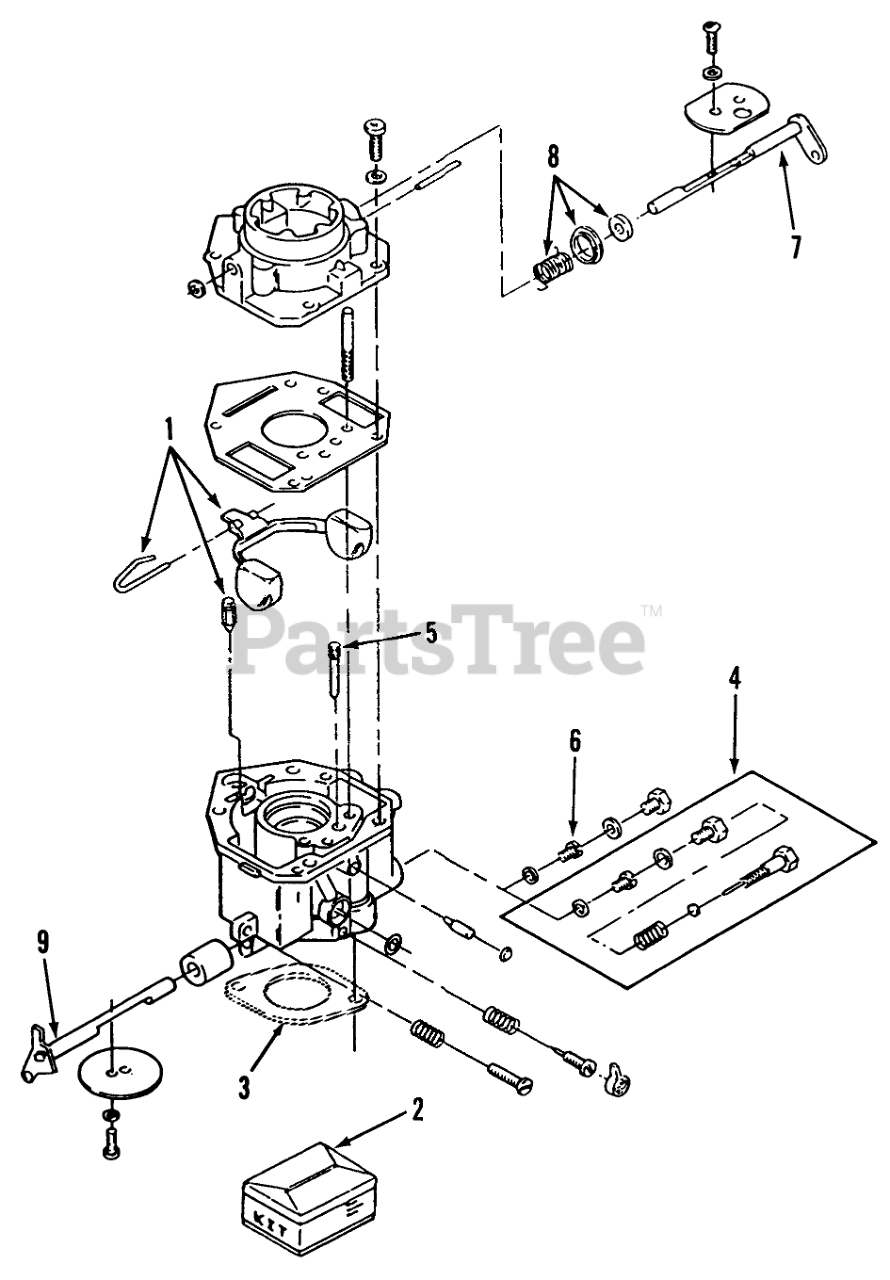

TORO POWER PLUS CARBURETOR COMPONENTS-GASOLINE Parts Diagram

  • Title

Toro NN10855

Carburetor, Complete (Includes Mounting Gasket)
(Superseded to NN10204)

$

$

Not available

1

Toro NN10209

Kit, Float (Includes Float, Pin and Valve)
(Superseded to 62-2800)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 82-0780

Kit, Repair (Includes Screw and Plug Package, Gasket Package, Float Valve, Idle Adjust Needle and Spring, Mounting Gaskets, Idle Limit Cap)

$716.99

$

Usually ships in 3-6 days

0

3

Toro 57-9200

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

4

Toro NN10858

FIXED-JET

$

$

Not available

5

Toro NN10853

CRANK-SHAFT

$

$

Not available

6

Toro 57-9050

POWER JET

$

$

Not available

7

Toro NN10207

Kit, Shaft-Choke (Includes Choke Valve, Valve Set Screw and Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10208

Kit, Lever-Choke (Includes Choke Lever Ring, Choke Spring and Choke Collar)
(Superseded to 72-3870)

$

$

Not available

9

Toro NN10811

Kit, Shaft-Throttle (Includes Valve Set Screw, Air Filter and Throttle Valve)

$

$

Not available

11

Toro 82-0800

SOLENOID - FUEL CUT OFF

$272.99

$

In Stock, only 1 left!

0
