41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

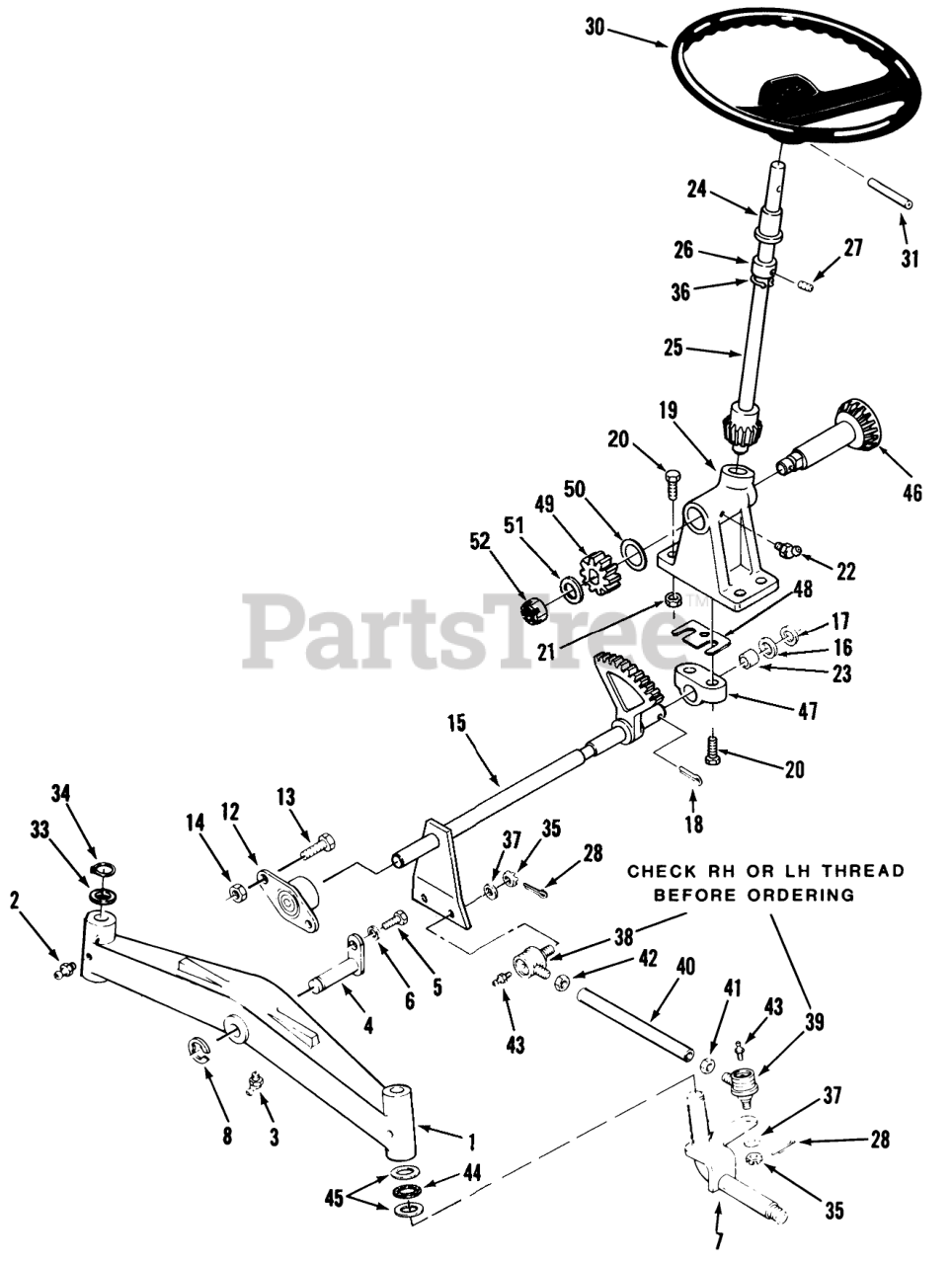

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 116823

Axle-Front
(Superseded to 116823-01)

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 10

0

4

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 112764

Spindle
(Superseded to 112764-01)

$

$

Not available

Toro 112765

Spindle
(Superseded to 112765-01)

$

$

Not available

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

12

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 4 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 78-1490

Shaft
(Superseded to 78-1490-03)

$

$

Not available

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

17

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

18

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

19

Toro 78-1411

Steering Support
(Superseded to 78-1411-03)

$

$

Not available

20

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 302-16

ZERK FITTING

$

$

Not available

23

Toro 78-1522

BLOCK-BEARING

$

$

Not available

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

25

Toro 78-1420

WLDMT-STRG SHAFT

$

$

Not available

26

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

27

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

30

Toro 117337

Steering Wheel
(Superseded to 76-1420)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

33

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 15

0

35

Toro 915031

NUT

$1.49

$

Usually ships in 3-6 days

0

36

Toro 111646

RING-RETAINING

$1.99

$

In Stock, Qty 5

0

37

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

Toro 112772

SOCKET-BALLJOINT
(Superseded to 112772-03)

$79.99

$

In Stock, only 1 left!

0

39

Toro 112771

SOCKET-BALLJOINT
(Superseded to 112771-03)

$79.99

$

In Stock, only 1 left!

0

40

Toro 112773

Tube
(Superseded to 112773-01)

$

$

Not available

41

Toro 112775

NUT-HEX JAM 9/16-18

$

$

Not available

42

Toro 915088

Nut
(Superseded to 3220-11)

$1.49

$

Usually ships in 3-6 days

0

43

Toro 109845

Grease Fitting
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

44

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

45

Toro 9548

WASHER-THRUST

$

$

Not available

46

Toro 78-1450

WLDMT-C SHAFT

$

$

Not available

47

Toro 78-1522

BLOCK-BEARING

$

$

Not available

48

Toro 78-1531

SHIM-.010

$

$

Not available

49

Toro 78-1481

PINION-SPUR

$

$

Not available

50

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

51

Toro 920216

Washer
(Superseded to 9202164)

$3.99

$

Usually ships in 3-6 days

0

52

Toro 915032

Nut
(Superseded to 32136-3)

$1.99

$

Usually ships in 3-6 days

0
