41-20OE01 (520-H) - Toro Garden Tractor (1990) HITCHES Parts Diagram

Garden Tractor

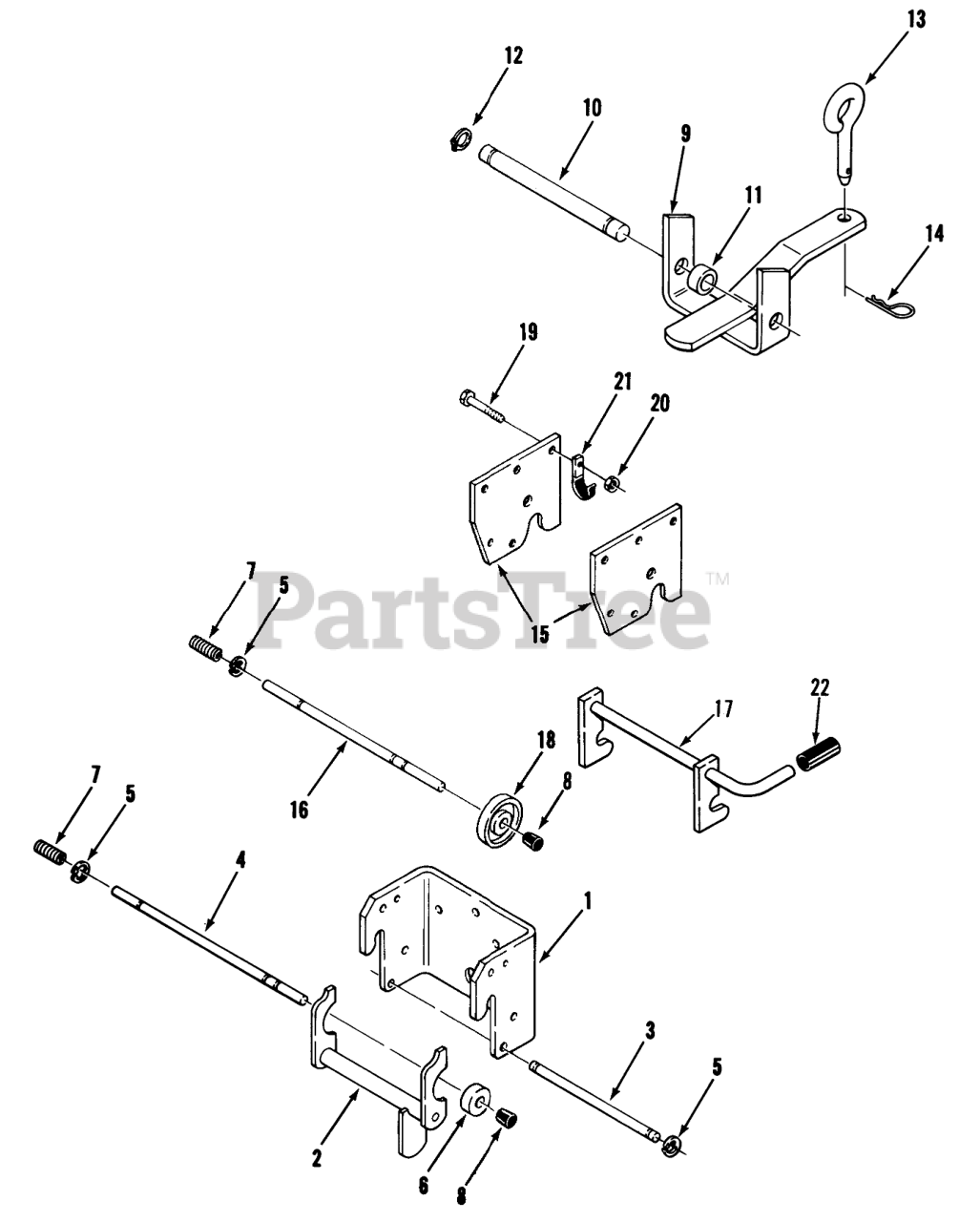

HITCHES Parts Diagram

  • Title

1

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

2

Toro 105859

Assy-Latch
(Superseded to 93-1613)

$

$

Not available

3

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

4

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

5

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Toro 101707

LOCK

$

$

Not available

7

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

9

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

10

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

11

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

13

Toro 106634

PIN-TOOL

$

$

Not available

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

16

Toro 102672

Knob

$

$

Not available

17

Toro 117930

MID HITCH ASM

$95.99

$

In Stock, only 1 left!

0

18

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

19

Toro 911435

Bolt 3/8-16 x 1
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

20

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

21

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

22

Toro 9038

GRIP

$6.99

$

Usually ships in 3-6 days

0
