41-20OE01 (520-H) - Toro Garden Tractor (1990) GEARCASE AND IGNITION CONTROLS Parts Diagram

Garden Tractor

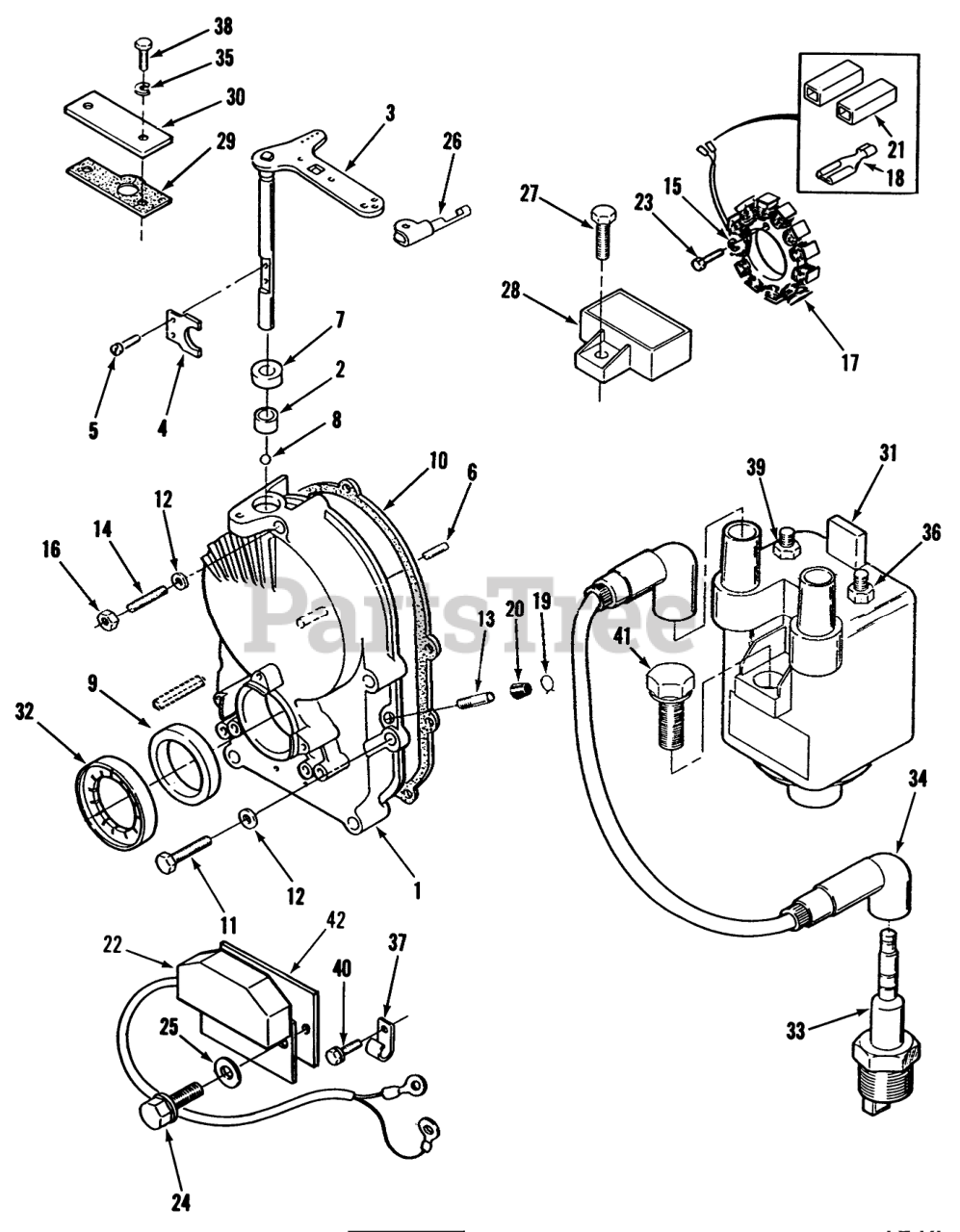

GEARCASE AND IGNITION CONTROLS Parts Diagram

  • Title

1

Toro NN10825

Gearcase Kit (Includes Items 2 thru 9, 13, 19 & 20)

$

$

Not available

2

Toro NN10329

Bearing
(Superseded to 57-9650)

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$200.99

$

Usually ships in 3-6 days

0

4

Toro NN10216

Yoke
(Superseded to 59-0420)

$

$

Not available

5

Toro NN10388

Screw
(Superseded to 59-0950)

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

Toro NN10310

Oil Seal
(Superseded to 57-9570)

$

$

Not available

8

Toro NN10327

Bearing
(Superseded to 57-9630)

$

$

Not available

9

Toro NN10320

Oil Seal
(Superseded to 57-9580)

$

$

Not available

10

Toro NN10019

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro NN10374

Screw 5/16-18 1-3/4
(Superseded to NN10545)

$

$

Not available

12

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

13

Toro NN10210

Vacuum Tube
(Superseded to 59-0360)

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro NN10418

Lockwasher #10
(Superseded to 325-32)

$7.99

$

Usually ships in 3-6 days

0

16

Toro NN10426

Nut
(Superseded to 59-1130)

$

$

Not available

17

Toro NN10518

Stator w/Terminals
(Superseded to 92-0967)

$394.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

Stator Leads Terminal
(Superseded to 59-0590)

$

$

Not available

19

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

20

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

21

Toro NN10280

Terrninal Connector Body Kit (Includes Terminals)
(Superseded to 82-1000)

$

$

Not available

22

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$457.99

$

Usually ships in 3-6 days

0

23

Toro NN10389

Bolt
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

26

Toro NN10346

Clip-Retaining
(Superseded to 57-9730)

$19.99

$

Usually ships in 3-6 days

0

27

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

28

Toro NN10261

Regulator
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

29

Toro NN10243

Gasket
(Superseded to 57-9260)

$

$

Not available

30

Toro NN10515

Plate
(Superseded to 71-5990)

$

$

Not available

31

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

32

Toro NN10247

Rotor
(Superseded to 71-6010)

$107.99

$

Usually ships in 3-6 days

0

33

Toro NN10517

Plug-Spark
(Superseded to 57-9340)

$3.49

$

In Stock, only 4 left!

0

34

Toro NN10253

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

Toro NN10254

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

35

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

36

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

37

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

38

Toro NN10368

Bolt
(Superseded to 82-1360)

$

$

Not available

39

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

40

Toro NN10396

Screw-Cap Hex Hd.
(Superseded to 71-6450)

$3.99

$

Usually ships in 3-6 days

0

41

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available

42

Toro NN10516

Insulator
(Superseded to 71-6410)

$12.99

$

Usually ships in 3-6 days

0
