41-20OE01 (520-H) - Toro Garden Tractor (1990) ENGINE CYLINDER BLOCK Parts Diagram

Garden Tractor

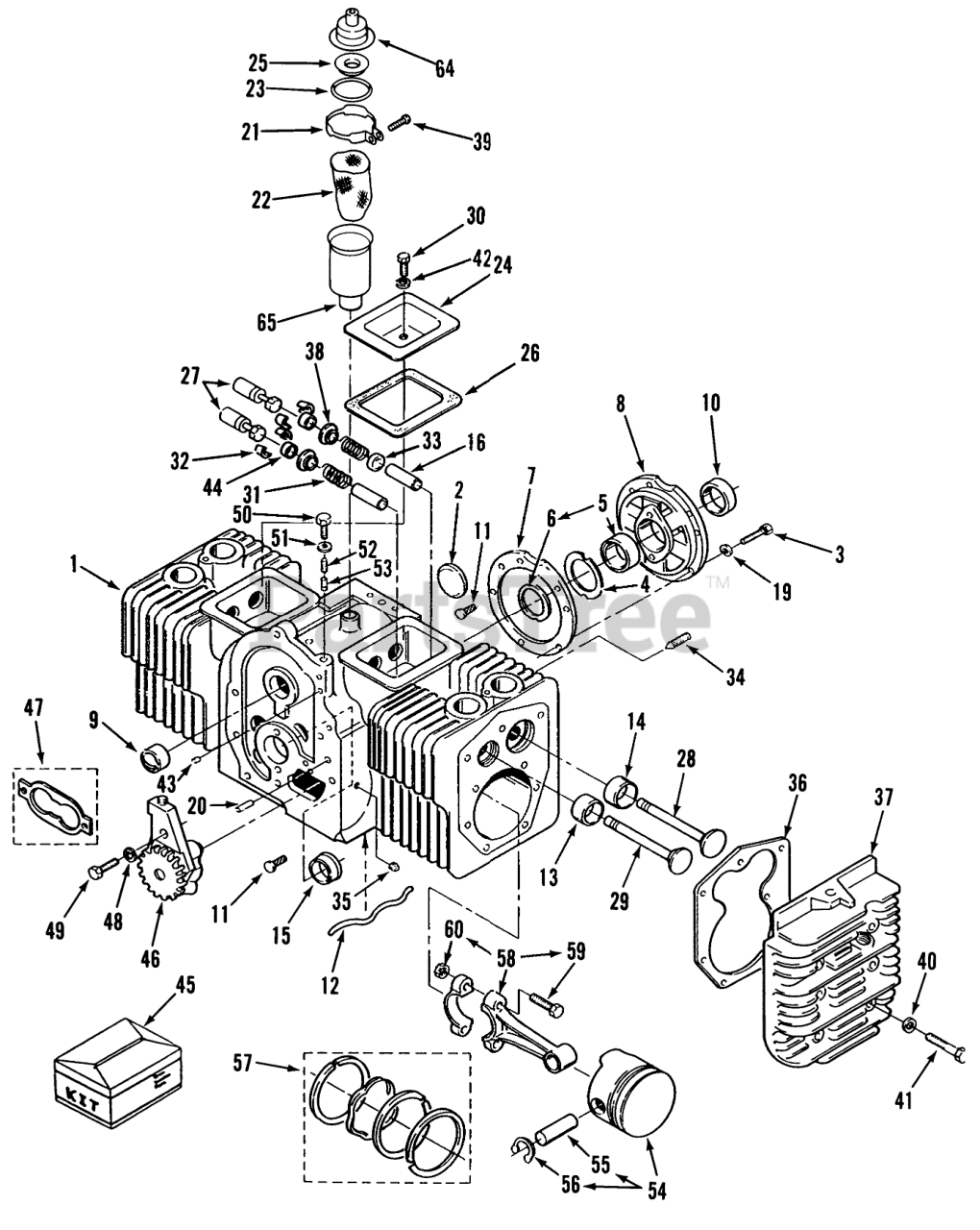

ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro NN10851

Short Block
(Superseded to 92-0900)

$

$

Not available

2

Toro NN10338

Plug
(Superseded to 57-9690)

$8.49

$

Usually ships in 3-6 days

0

3

Toro NN10442

Bolt 3/8-16x 1-1/4
(Superseded to 59-0880)

$

$

Not available

4

Toro NN10023

Shim 0.005"
(Superseded to 57-8170)

$8.49

$

Usually ships in 3-6 days

0

5

Toro NN10009

Rear Crankshaft Bearing-STD
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

Toro NN10010

Rear Crankshaft Brg-.002 under
(Superseded to 59-0020)

$

$

Not available

Toro NN10011

Rear Crankshaft Brg-.010 under
(Superseded to 57-8060)

$

$

Not available

Toro NN10012

Rear Crankshaft Brg-.020 under
(Superseded to 59-0030)

$

$

Not available

Toro NN10013

Rear Crankshaft Brg-.030 under
(Superseded to 59-0040)

$

$

Not available

6

Toro NN10022

ThrustWasher
(Superseded to 57-8160)

$

$

Not available

7

Toro NN10002

Gasket
(Superseded to 57-8010)

$28.99

$

In Stock, only 2 left!

0

8

Toro NN10008

Bearing Plate
(Superseded to 82-0020)

$

$

Not available

9

Toro NN10001

Camshaft Brg
(Superseded to 57-8000)

$153.99

$

Usually ships in 3-6 days

0

10

Toro NN10321

Oil Seal
(Superseded to 57-9590)

$41.99

$

In Stock, only 2 left!

0

11

Toro NN10334

Screw
(Superseded to 59-0730)

$

$

Not available

12

Toro NN10139

Oil Tube
(Superseded to 59-0290)

$

$

Not available

13

Toro NN10054

Standard
(Superseded to 59-0100)

$

$

Not available

Toro NN10055

.002" Oversize
(Superseded to 59-0110)

$

$

Not available

Toro NN10056

.005" Oversize
(Superseded to 59-0120)

$

$

Not available

Toro NN10057

.010" Oversize
(Superseded to 59-0130)

$

$

Not available

Toro NN10085

CYLINDER BLOCK ASS'Y

$5027.99

$

Usually ships in 3-6 days

0

14

Toro NN10035

Standard
(Superseded to 59-0050)

$

$

Not available

Toro NN10036

002" Oversize

$

$

Not available

Toro NN10037

005" Oversize

$

$

Not available

Toro NN10038

010" Oversize
(Superseded to 59-0080)

$

$

Not available

Toro NN10039

025" Oversize

$

$

Not available

15

Toro NN10003

Standard
(Superseded to 57-8030)

$

$

Not available

Toro NN10004

.002" Undersize
(Superseded to 57-9360)

$

$

Not available

Toro NN10005

.010" Undersize
(Superseded to 57-8030)

$

$

Not available

Toro NN10006

.020" Undersize
(Superseded to 57-9800)

$

$

Not available

Toro NN10007

.030" Under
(Superseded to 59-0010)

$

$

Not available

16

Toro NN10084

Exhaust Valve Guide
(Superseded to 71-6250)

$

$

Not available

Toro NN10083

Intake Valve Guide
(Superseded to 71-6260)

$

$

Not available

19

Toro NN10421

Lockwasher 3/8
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

20

Toro NN10336

Pin
(Superseded to 59-0750)

$7.99

$

Usually ships in 3-6 days

0

21

Toro NN10148

Clamp
(Superseded to 82-0530)

$

$

Not available

22

Toro NN10156

Baffle
(Superseded to 57-8580)

$6.99

$

Usually ships in 3-6 days

0

23

Toro NN10322

Seal
(Superseded to 82-0570)

$7.49

$

Usually ships in 3-6 days

0

24

Toro NN10821

VALVE-COVER L.H.

$

$

Not available

25

Toro NN10151

Screen
(Superseded to 82-0560)

$

$

Not available

26

Toro NN10822

Gasket
(Superseded to 57-8280)

$11.99

$

In Stock, only 1 left!

0

27

Toro NN10129

Tappet
(Superseded to 57-8450)

$

$

Not available

Toro NN10130

.002" Oversize
(Superseded to 59-0260)

$

$

Not available

Toro NN10131

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

28

Toro NN10075

Intake Valve
(Superseded to 71-5770)

$

$

Not available

29

Toro NN10076

Exhaust Valve
(Superseded to 71-5780)

$

$

Not available

30

Toro NN10370

HHCS 1/4-20 X 1 3/4

$

$

Not available

31

Toro NN10077

Spring
(Superseded to 71-5790)

$

$

Not available

32

Toro NN10082

VALVE SPRING LOCK

$

$

Not available

33

Toro NN10326

Seal
(Superseded to 71-6180)

$18.99

$

Usually ships in 3-6 days

0

34

Toro NN10385

Screw
(Superseded to 3247-4)

$5.99

$

Usually ships in 3-6 days

0

35

Toro NN10307

Plug
(Superseded to 700412)

$

$

Not available

36

Toro NN10070

Gasket
(Superseded to 57-8330)

$

$

Not available

37

Toro NN10080

Right Side
(Superseded to 59-0180)

$

$

Not available

Toro NN10079

Side-Left
(Superseded to 71-5810)

$609.99

$

Usually ships in 3-6 days

0

38

Toro NN10078

Washer
(Superseded to 71-5800)

$

$

Not available

39

Toro NN10387

Screw #8 x 3/4
(Superseded to 82-1480)

$

$

Not available

40

Toro NN10363

Washer
(Superseded to 57-9770)

$

$

Not available

41

Toro NN10382

Special Bolt 2.375" Long
(Superseded to 71-6270)

$

$

Not available

42

Toro NN10359

Washer
(Superseded to 57-9740)

$

$

Not available

44

Toro NN10081

Cap-Valve
(Superseded to 71-5830)

$

$

Not available

45

Toro NN10257

Engine Gasket Kit
(Superseded to 71-6290)

$

$

Not available

Toro NN10561

Kit-Oil Pump Gasket
(Superseded to 57-9370)

$

$

Not available

46

Toro NN10136

Oil Pump
(Superseded to 57-8480)

$

$

Not available

47

Toro NN10134

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

48

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

49

Toro NN10369

Bolt
(Superseded to 82-1370)

$

$

Not available

50

Toro NN10383

Bolt
(Superseded to 59-0910)

$

$

Not available

51

Toro NN10361

Washer
(Superseded to 57-9760)

$

$

Not available

52

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

53

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

54

Toro NN10088

Piston (Includes Pin & Retaining Ring)-STD
(Superseded to 82-1800)

$

$

Not available

Toro NN10089

Piston (Includes Pin & Retaining Rings)-.005"
(Superseded to 59-0190)

$

$

Not available

Toro NN10090

Piston (Includes Pin & Retaining Rings)-.010"
(Superseded to 92-0902)

$

$

Not available

Toro NN10091

Piston (Includes Pin & Retaining Rings)-.020"
(Superseded to 92-0903)

$

$

Not available

Toro NN10092

Piston (Includes Pin & Retaining Rings)-.030"
(Superseded to 92-0904)

$

$

Not available

Toro NN10093

Piston (Includes Pin & Retaining Rings)-.040"

$

$

Not available

55

Toro NN10100

Pin-Piston
(Superseded to 71-6310)

$

$

Not available

56

Toro NN10345

Retaining Ring
(Superseded to 57-9720)

$

$

Not available

57

Toro NN10101

Standard
(Superseded to 57-8380)

$

$

Not available

Toro NN10102

.005" Oversize

$

$

Not available

Toro NN10103

.010" Oversize
(Superseded to 57-8390)

$129.99

$

Usually ships in 3-6 days

0

Toro NN10104

.020" Oversize
(Superseded to 57-8400)

$

$

Not available

Toro NN10105

.030" Oversize
(Superseded to 59-0230)

$

$

Not available

Toro NN10106

Piston Ring Set.040" Oversize

$

$

Not available

58

Toro NN10121

Rod w/Bolts & Nuts-STD
(Superseded to 57-8420)

$

$

Not available

Toro NN10122

Rod w/Bolts & Nuts-.010"
(Superseded to 57-8430)

$

$

Not available

Toro NN10123

Rod w/Bolts & Nuts-.020"
(Superseded to 57-8440)

$282.99

$

Usually ships in 3-6 days

0

Toro NN10124

Bolt-Rod
(Superseded to 59-0250)

$

$

Not available

59

Toro NN10120

Rod Bolt
(Superseded to 57-8410)

$

$

Not available

60

Toro NN10428

Nut
(Superseded to 57-9790)

$

$

Not available

64

Toro NN10150

Breather Cap & Valve
(Superseded to 82-0550)

$

$

Not available

65

Toro NN10149

Breather Tube
(Superseded to 82-0540)

$

$

Not available
