41-20O801 (520-8) - Toro Garden Tractor (1990) STARTER Parts Diagram

Garden Tractor

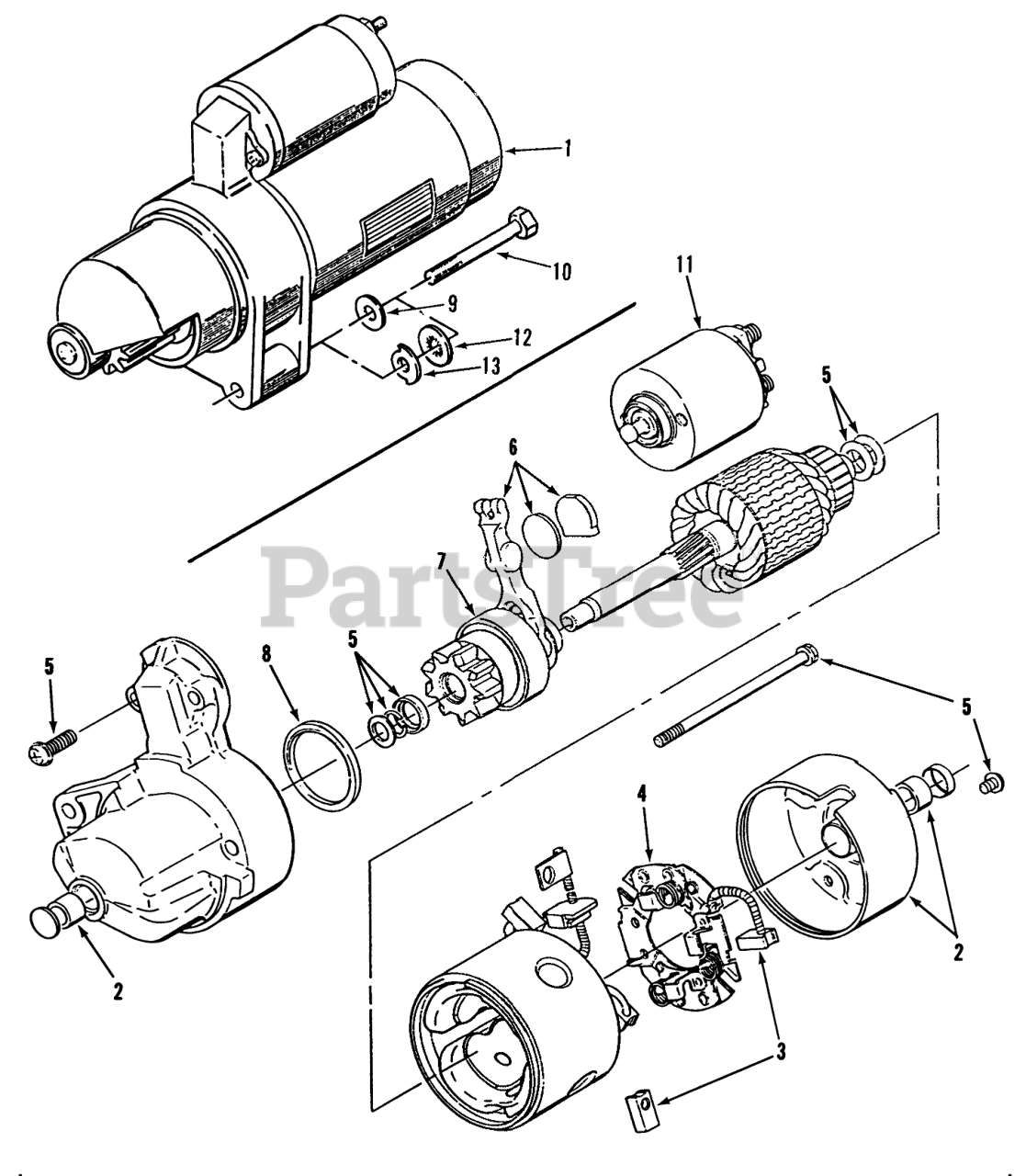

STARTER Parts Diagram

  • Title

1

Toro NN10268

Starter, Complete-See Components Below
(Superseded to 112-7023)

$441.99

$

Usually ships in 3-6 days

0

2

Toro NN10262

Bushing Kit (Includes Front Bushing and Rear Cap w/Bushing)
(Superseded to 62-2730)

$

$

Not available

3

Toro NN10263

Starter Brush Kit (Includes Positive Brush (2) and Negative Brush w/Pigtail)
(Superseded to 62-2740)

$

$

Not available

4

Toro NN10264

Starter Brush Holder (Includes Brush Holder w/Negative Brush)
(Superseded to 62-2740)

$

$

Not available

5

Toro NN10265

Starter Holder Kit (Includes Solenoid Screws (2), Brush Holder Screws (2), Thru Bolts (2), Armature Shims (2), Pinion Stop Collar, and Pinion Retaining Ring)
(Superseded to 62-2760)

$

$

Not available

6

Toro NN10266

Starter Shift Lever Kit (Includes Shift Lever, Wear Plate and Rubber Plug)
(Superseded to 62-2770)

$

$

Not available

7

Toro NN10270

Starter Clutch (Includes Pinion Gear w/Clutch)
(Superseded to 72-3940)

$

$

Not available

8

Toro NN10271

Dust Seal
(Superseded to NN10886)

$

$

Not available

9

Toro NN10363

Washer
(Superseded to 57-9770)

$

$

Not available

10

Toro NN10376

Bolt
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro NN10269

Starter Solenoid Kit (Includes Solenoid, Spring and Plunger)
(Superseded to 72-3930)

$

$

Not available

12

Toro NN10834

WASHER

$

$

Not available

13

Toro NN10833

WASHER

$

$

Not available
