41-20O801 (520-8) - Toro Garden Tractor (1990) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

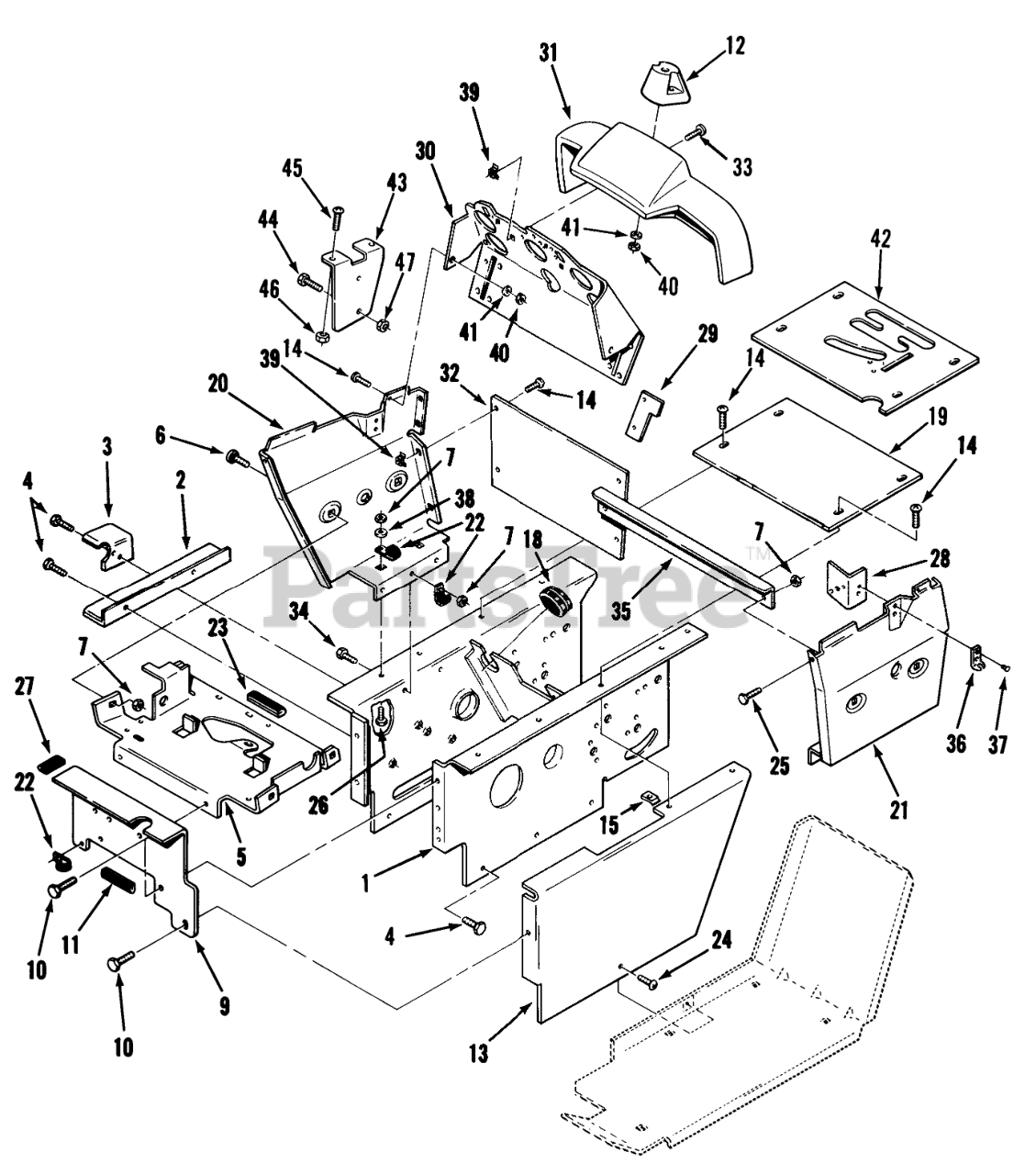

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 116327

Hoodstand
(Superseded to 79-5120-03)

$

$

Not available

2

Toro 114871

ANGLE-BELT GUARD B

$

$

Not available

3

Toro 106261

Belt Bracket
(Superseded to 88-2170-03)

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 116309

WLD-SUPPORTB

$

$

Not available

Toro 116308

SUPPORT-BATTERY

$

$

Not available

6

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

7

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 113938

PLATE-FRT HOODSTA B

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

12

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

Toro 118400

COVER-STEERING SHAFT

$

$

Not available

13

Toro 116297

COVER-L.H. R

$

$

Not available

Toro 113935

Cover-Side LH
(Superseded to 113935-01)

$81.99

$

Usually ships in 3-6 days

0

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 113928

Plate-Hoodstand
(Superseded to 92-7295)

$

$

Not available

20

Toro 113962

Panel-RH
(Superseded to 113962-03)

$96.99

$

In Stock, only 1 left!

0

21

Toro 114432

LS Panel
(Superseded to 79-4890-03)

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

25

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

26

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

27

Toro 102896

EDGE TRIM-BULK

$

$

Not available

28

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

29

Toro 114641

STOP-CHOKE

$

$

Not available

30

Toro 116607

ASS'Y-PANEL (3-G) B

$

$

Not available

Toro 117267

ASM-Panel
(Superseded to 117267-03)

$

$

Not available

31

Toro 121356

Console Cover Kit-520-8 (Contains #115621 3-gauge cover, #118400 Steering Cover, (4) 118780 Screw #6 Plastite, & (4) 920270 Washers)

$

$

Not available

Toro 121357

Kit-Console Cover (Contains #115620 5-Gauge Cover, #118410 Steering Cover, (4) 118780 Screw #6 Plastite, & (4) 920270 Washers)

$

$

Not available

32

Toro 113939

PLATE-HOODSTAND B

$

$

Not available

Toro 116862

Plate-Top Hoodstand
(Superseded to 92-7294)

$

$

Not available

33

Toro 910839

Screw
(Superseded to 9108392)

$

$

Not available

34

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

35

Toro 113932

STIFFENER-PANEL B

$

$

Not available

36

Toro 117343

Latch Keeper (Included in 106825 Hood Latch)

$4.99

$

In Stock, only 2 left!

0

37

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

Toro 117433

RIVET-POP

$

$

Not available

38

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 114207

Nut 1/4-20
(Superseded to 32115-5)

$7.49

$

Usually ships in 3-6 days

0

40

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

41

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

42

Toro 111386

Plate-Shift Cover
(Superseded to 92-6529)

$32.99

$

In Stock, only 1 left!

0

43

Toro 117191

Bracket-Holder
(Superseded to 117191-03)

$

$

Not available

44

Toro 910794

BOLT

$

$

Not available

45

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

46

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

47

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0
