41-18KE01 (418-C) - Toro Garden Tractor (1987) THROTTLE CHOKE AND FUEL SYSTEM Parts Diagram

Garden Tractor

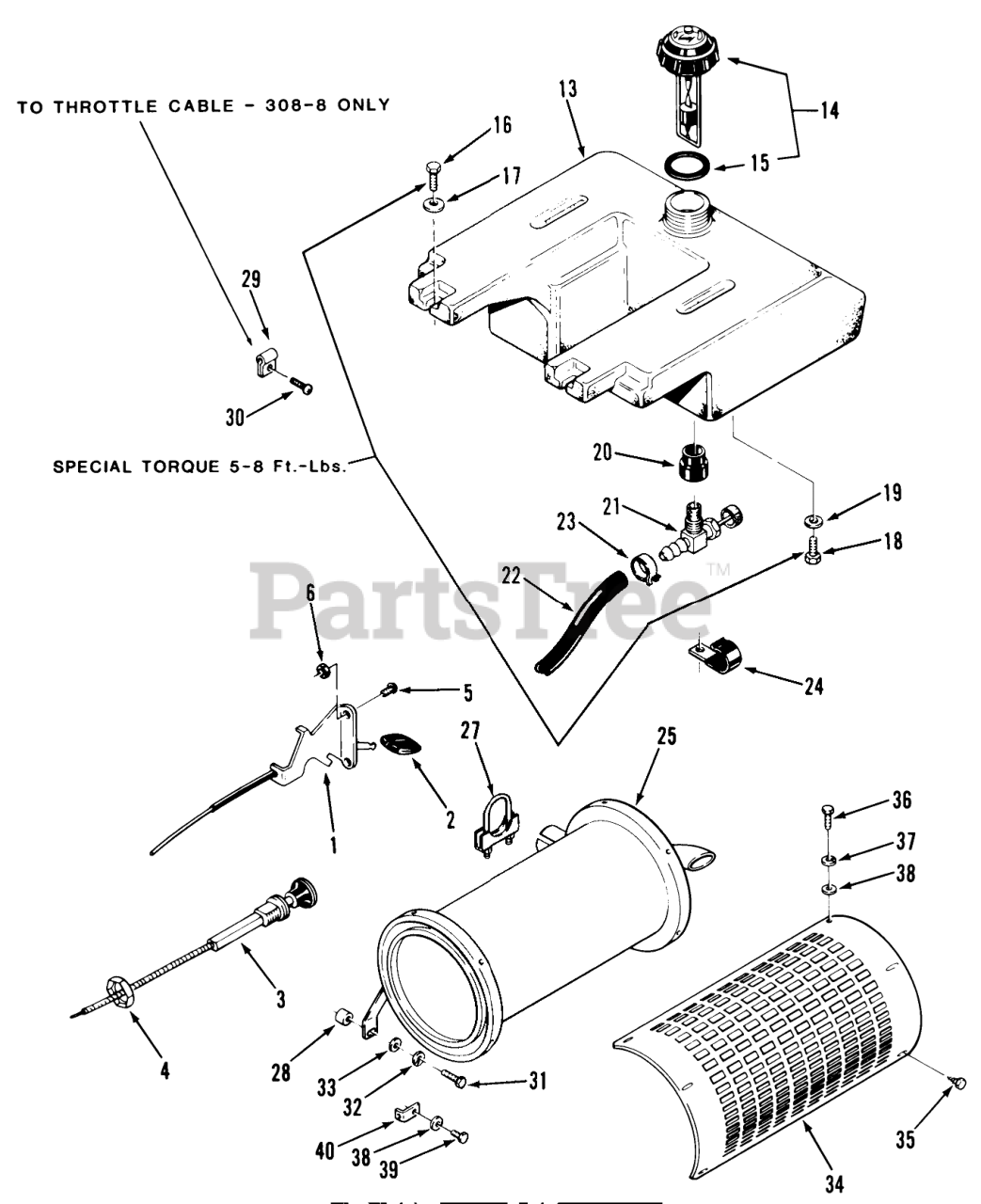

THROTTLE CHOKE AND FUEL SYSTEM Parts Diagram

  • Title

1

Toro 112199

Throttle Control 310, 312, 414
(Superseded to 115854)

$84.99

$

In Stock, only 2 left!

0

1

Toro 110715

Throttle Control 308
(Superseded to 115853)

$149.99

$

Usually ships in 3-6 days

0

1

Toro 110714

CONTROL THROTTLE

$

$

Not available

2

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

3

Toro 112214

CONTROL CHOKE

$63.99

$

In Stock, Qty 5

0

3

Toro 110712

CONTROL CHOKE

$

$

Not available

4

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

5

Toro 9107922

SCRW-PHC

$10.99

$

Usually ships in 3-6 days

0

6

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

14

Toro 106945

ASSY-GAUGE CAP

$34.99

$

In Stock, Qty 15

0

15

Toro 106931

GASKET-GAS CAP

$

$

Not available

16

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

19

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

21

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

22

Toro 106445

Fuel Line
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

24

Toro 950154

Clamp

$

$

Not available

24

Toro 105490

CLAMP

$

$

Not available

25

Toro 112355

MUFFLER

$

$

Not available

27

Toro 106858

CLAMP-1 1/2
(Superseded to 2112-9)

$9.99

$

Usually ships in 3-6 days

0

28

Toro 6876

SPACER

$

$

Not available

31

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

32

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

33

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

34

Toro 112356

SHIELD

$

$

Not available

34

Toro 112429

SHIELD-MUFFLER

$389.99

$

Usually ships in 3-6 days

0

35

Toro 112357

BOLT-HEX #10 X 3/8

$

$

Not available

36

Toro 908000

HEX HEAD CAP SCREW -

$

$

Not available

37

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

38

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

39

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

40

Toro 112428

Clip 418-8,418-A

$

$

Not available

22

Toro 110894

Line-Fuel 62"
(Superseded to 110521)

$

$

Not available

25

Toro 112213

Muffler
(Superseded to 94-3739)

$

$

Not available

29

Toro 7922

CLIP-CABLE

$3.99

$

Usually ships in 3-6 days

0

30

Toro 910775

Screw, P.H.C.R. #8-32 x2/8

$

$

Not available
