41-18KE01 (418-C) - Toro Garden Tractor (1987) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

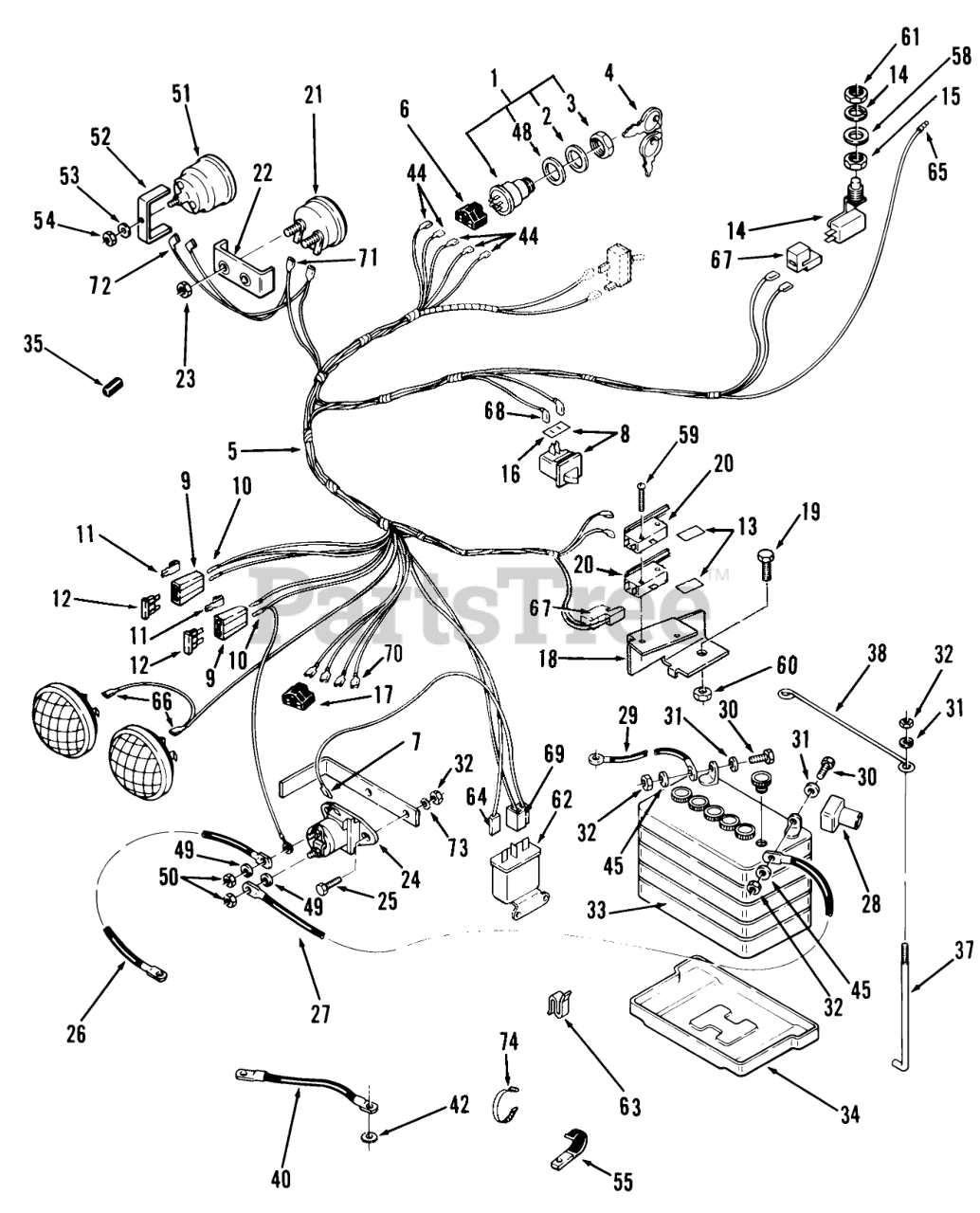

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111215

Ignition Switch Ass-y
(Superseded to 103991)

$55.99

$

In Stock, only 1 left!

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

4

Toro 111214

KEY PADDED

$

$

Not available

5

Toro 112494

WIRING-HARNESS & DIA

$

$

Not available

5

Toro 111832

Wiring Harness Assembly 420-LSE

$

$

Not available

6

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

7

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

8

Toro 110970

SWITCH ASM (SERVICE)

$

$

Not available

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 108895

TERMINAL FUSE

$5.49

$

Usually ships in 3-6 days

0

11

Toro 109445

CLIP

$8.49

$

Usually ships in 3-6 days

0

12

Toro 110928

FUSE-BLADE, 5 AMP

$8.49

$

Usually ships in 3-6 days

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

12

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 112418

SWITCH-PUSH

$60.99

$

In Stock, only 3 left!

0

15

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

16

Toro 110502

SHIELD-DIRT SPST

$

$

Not available

17

Toro 112185

5-CONTACT CONN BODY

$9.49

$

Usually ships in 3-6 days

0

18

Toro 111488

Support-Switch
(Superseded to 115411)

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

21

Toro 110741

Voltmeter (w/109650)
(Superseded to 117176)

$

$

Not available

22

Toro 109650

CLAMP MOUNTING

$16.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

24

Toro 111674

SOLENOID-STARTER

$76.99

$

Usually ships in 3-6 days

0

25

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

26

Toro 111069

ASSY WIRE

$

$

Not available

26

Toro 111790

Cable-Solenoid to Starter Twin Cylinder

$

$

Currently unavailable

27

Toro 111074

CABLE-BLACK

$27.99

$

Usually ships in 3-6 days

0

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 111069

ASSY WIRE

$

$

Not available

30

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

33

Toro 110791

Battery Maintenance Free 416

$

$

Not available

33

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

34

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

37

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

38

Toro 112459

ROD HOLD DOWN B

$24.99

$

Usually ships in 3-6 days

0

40

Toro 109910

WIRE GROUND

$5.99

$

Usually ships in 3-6 days

0

42

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

44

Toro 102651

Terminal

$

$

Not available

45

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

48

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

49

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

50

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

51

Toro 110853

Hourmeter 314, 417
(Superseded to 113469)

$446.99

$

Usually ships in 3-6 days

0

52

Toro 108768

HOUR METER CLAMP

$

$

Not available

53

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

55

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

58

Toro 111713

SPACER SWITCH

$

$

Not available

59

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

60

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

61

Toro 112419

NUT-HEX SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

62

Toro 106833

Relay
(Superseded to 99-5365)

$115.99

$

Usually ships in 3-6 days

0

63

Toro 519337

CLIP-CABLE

$

$

Not available

64

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

67

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

68

Toro 518077

Terminal

$

$

Currently unavailable

69

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

70

Toro 105312

Connector Part of 5

$

$

Currently unavailable

71

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

72

Toro 518246

Terminal Part of 5

$

$

Not available

73

Toro 920122

LOCKWASHER

$

$

Not available

74

Toro 100571

PLASTIC TIE

$

$

Not available

4

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

5

Toro 112224

WIRING HARNESS

$

$

Not available

5

Toro 112215

WIRING HARNESS

$

$

Not available

5

Toro 112217

WIRING HARNESS

$

$

Not available

35

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

35

Toro 100489

VALVE LEVER GRIP

$9.99

$

Usually ships in 3-6 days

0
