41-16OE01 (416-H) - Toro Garden Tractor (1990) Front Axle And Steering Parts Diagram

Garden Tractor

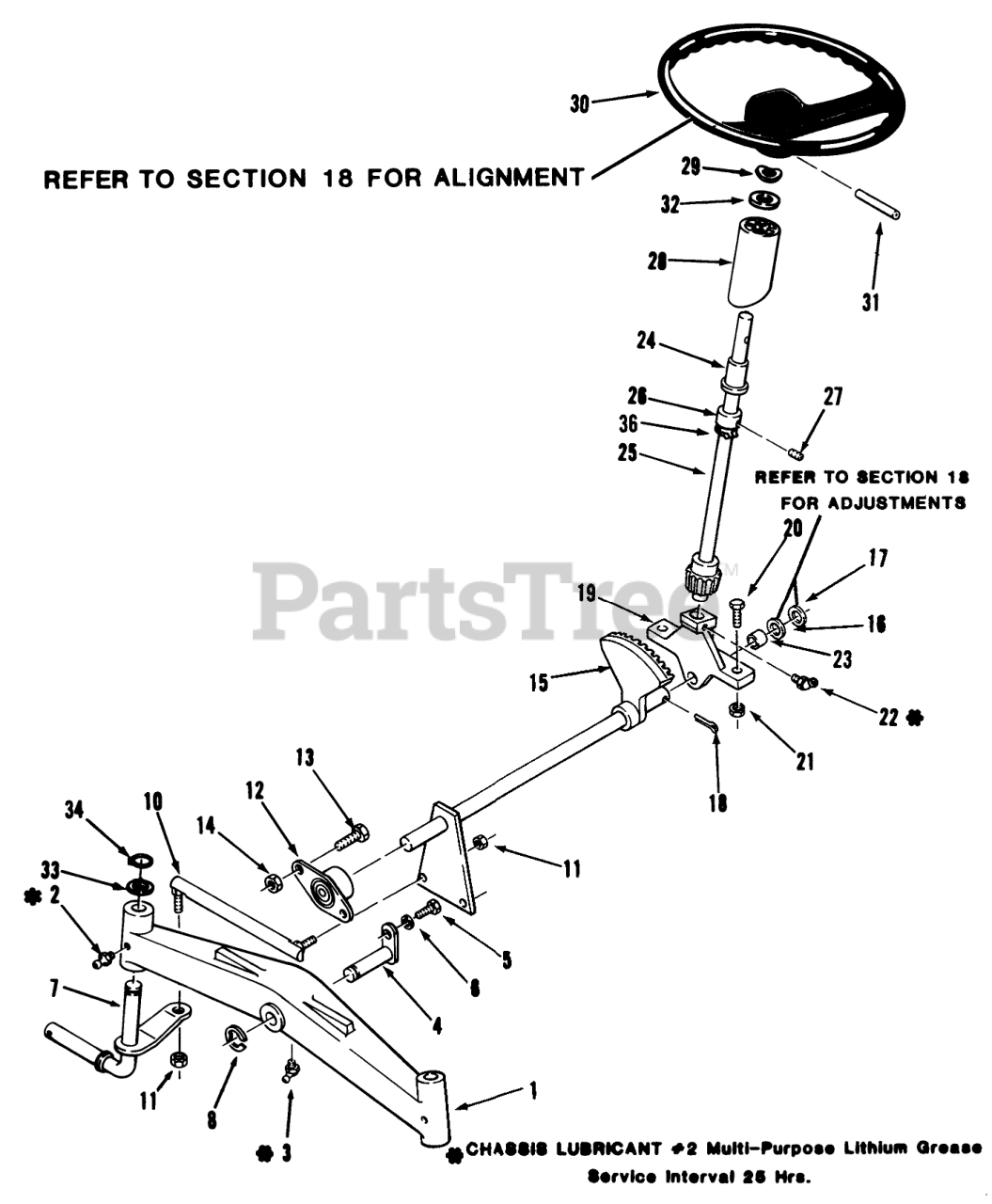

Front Axle And Steering Parts Diagram

  • Title
1

Toro 5638

See Supercession: 5638-01
(Superseded to 5638-01)

$

$

Not available

2

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5

Toro 908015

See Supercession: 322-1
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

6

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

7

Toro 113380

See Supercession: 113380-01
(Superseded to 113380-01)

$73.99

$

In Stock, only 1 left!

0

Toro 113379

See Supercession: 113379-01
(Superseded to 113379-01)

$73.99

$

In Stock, only 1 left!

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

10

Toro 102592

See Supercession: 78-2900
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

Toro 102593

See Supercession: 78-2900
(Superseded to 78-2900)

$76.99

$

In Stock, only 2 left!

0

11

Toro 915693

See Supercession: 9156934
(Superseded to 9156934)

$1.99

$

In Stock, Qty 5

0

12

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

13

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

15

Toro 114198

DISCONTINUED
(Superseded to 114198-01)

$

$

Not available

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 932035

DISCONTINUED

$

$

Not available

19

Toro 109733

See Supercession: 88-2710-03
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

22

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

25

Toro 106177

See Supercession: 92-4987
(Superseded to 92-4987)

$

$

Not available

26

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

27

Toro 909848

See Supercession: 3245-32
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

29

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

30

Toro 117336

See Supercession: 78-3100
(Superseded to 78-3100)

$374.99

$

Usually ships in 3-6 days

0

Toro 117337

See Supercession: 76-1420
(Superseded to 76-1420)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 933221

See Supercession: 32121-111
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

32

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

33

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

34

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

36

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0
