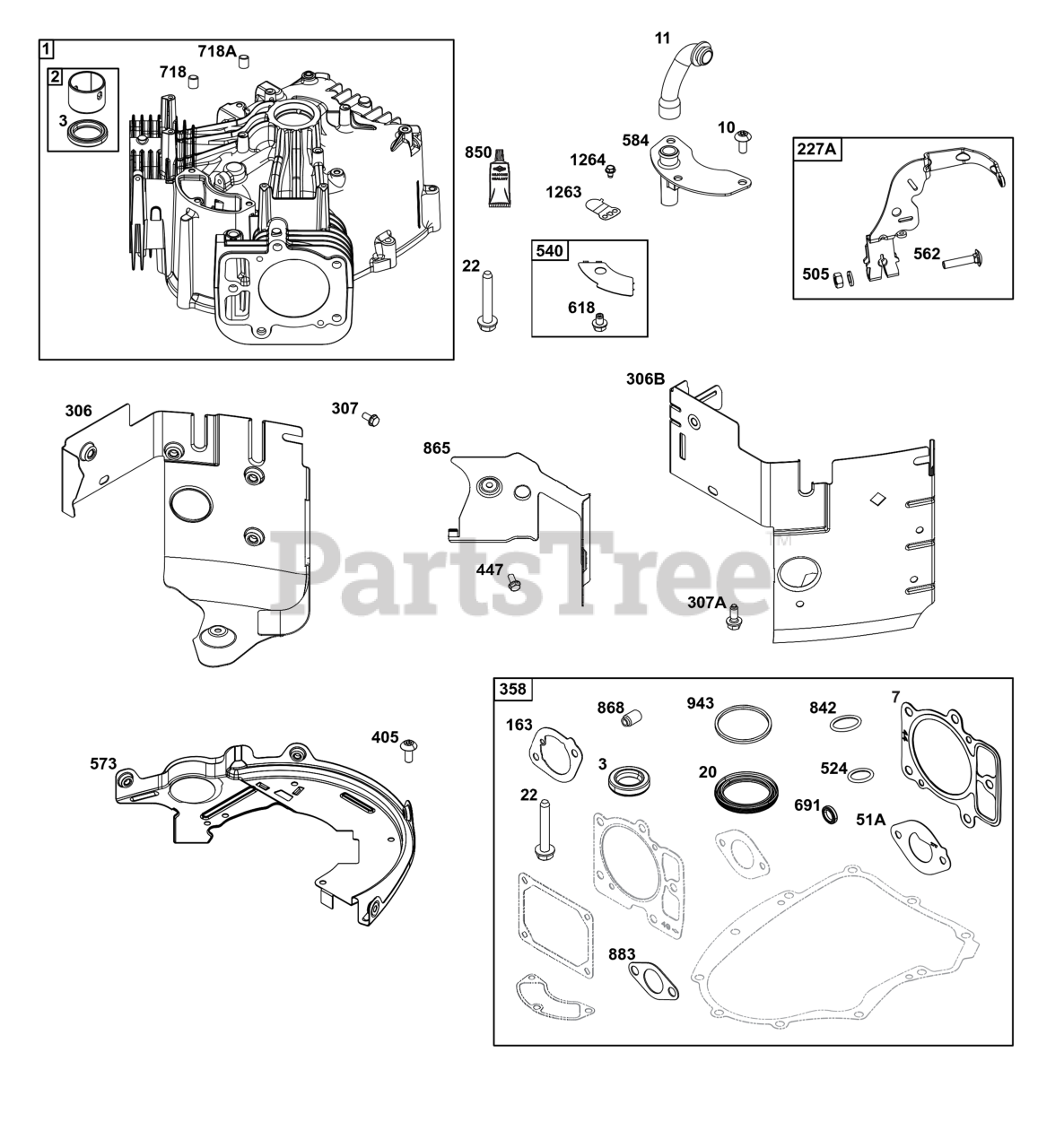

40U777-0003-B5 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 594969

CYLINDER ASSEMBLY

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT-BUSHING/SEAL

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

10

Briggs & Stratton 594937

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 594163

TUBE, Breather

$7.99

$

In Stock, only 1 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

22

SCREW

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

227A

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

307A

Briggs & Stratton 691108

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 84002166

SHIELD, Cylinder

$37.99

$

Usually ships in 2-12 days

0

306B

Briggs & Stratton 84007347

SHIELD, Cylinder

$36.99

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 691003

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 9

0

505

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

562

BOLT

Note: (Part information located in Controls Group.)

$

$

Not available

573

Briggs & Stratton 594902

PLATE-BACK

$59.99

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 594326

SCREW

Note: (Baffle Plate)

$5.99

$

Usually ships in 2-12 days

0

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

865

Briggs & Stratton 591667

COVER, Air Guide

$43.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

943

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0
