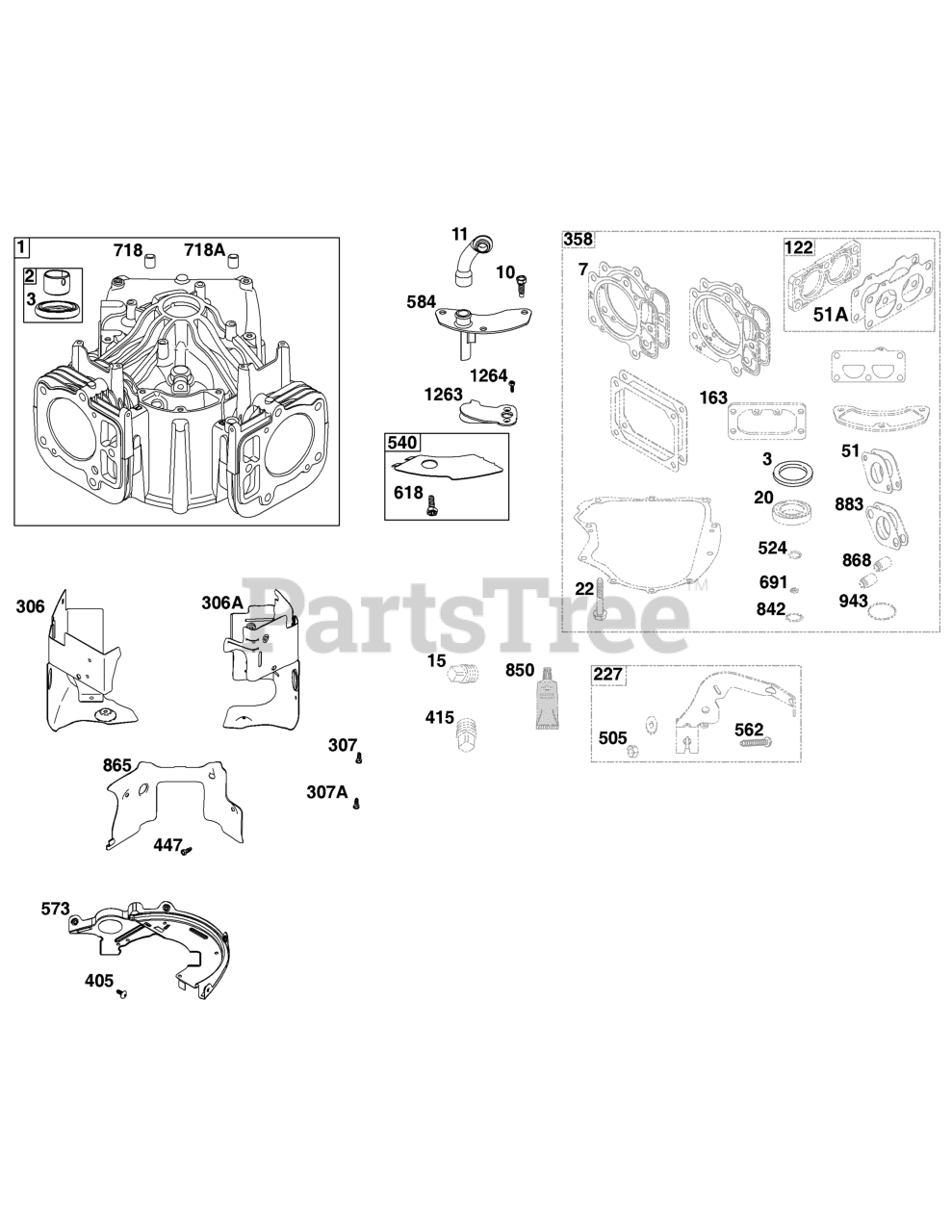

40T877-0004-G1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 594969

CYLINDER ASSEMBLY

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 594163

TUBE, Breather

$7.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 796852

SHIELD, Cylinder
(Superseded to 84002166)

$37.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 591666

SHIELD, Cylinder
(Superseded to 84002168)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

307A

Briggs & Stratton 691108

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 691003

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 9

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 594902

PLATE, Back

$59.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 594326

SCREW

Note: (Baffle Plate)

$5.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 591667

COVER, Air Guide

$43.99

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0
