40S777-0002-G1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

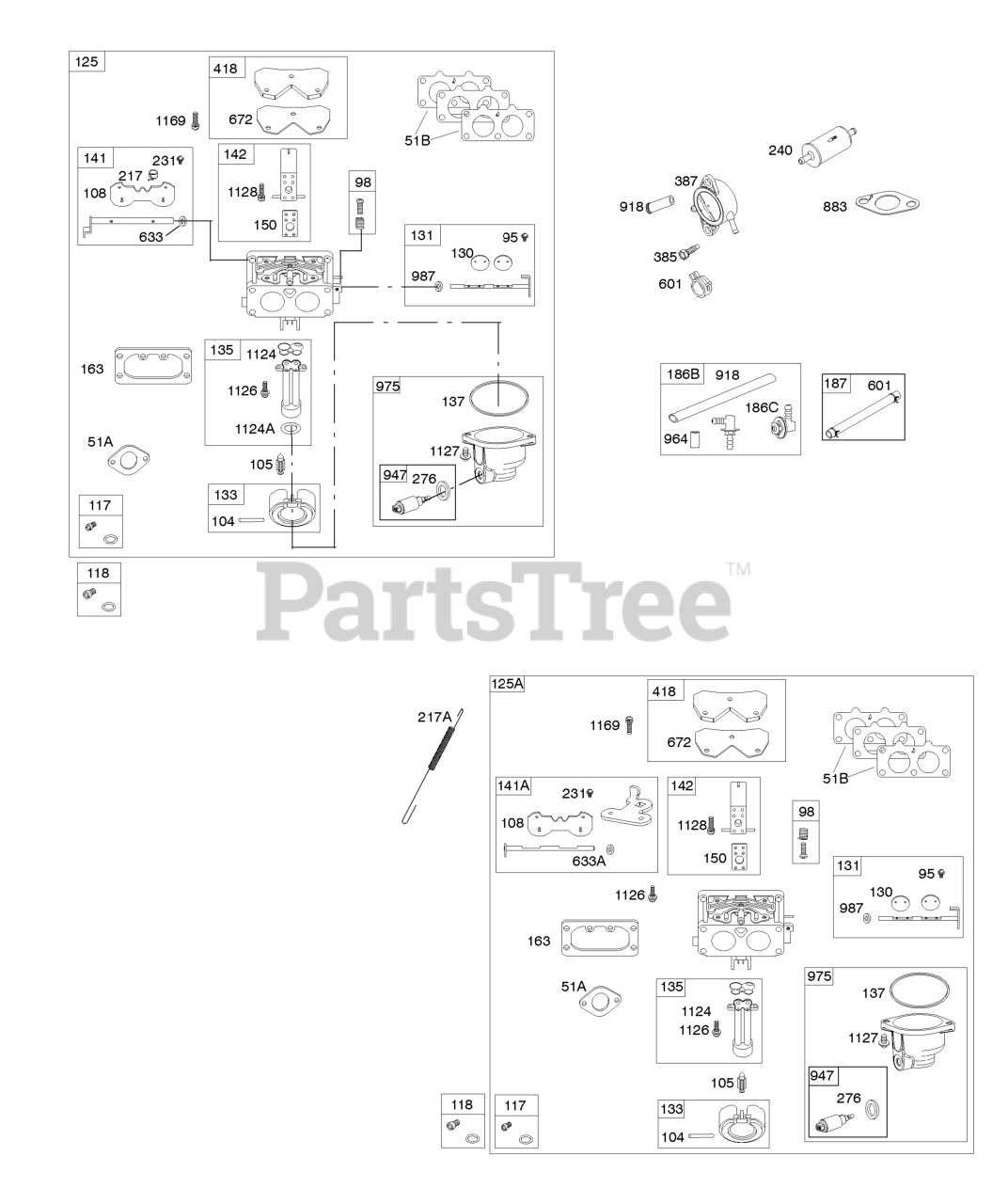

Carburetor, Fuel Supply Parts Diagram

  • Title

51A

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51B

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 699723

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842585

JET, Main

Note: (Standard) (Left and Right Jet)

$20.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 791502

JET, Main

Note: (High Altitude) (Left and Right Jet)

$18.99

$

In Stock, Qty 9

0

125

Briggs & Stratton 796997

Carburetor

$241.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690993

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 799113

KIT, Throttle Shaft

$55.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

FLOAT, Carburetor

$31.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 699729

TUBE, Fuel Transfer

$36.99

$

In Stock, Qty 16

0

137

Briggs & Stratton 690994

GASKET, Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 796228

KIT, Choke Shaft

$43.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 796871

NOZZLE, Carburetor

$21.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 841649

GASKET, Nozzle

$5.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 15

0

186B

Briggs & Stratton 799158

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, Qty 11

0

186C

Briggs & Stratton 845141

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

217A

Briggs & Stratton 593447

Spring-Choke Return

$

$

Not available
