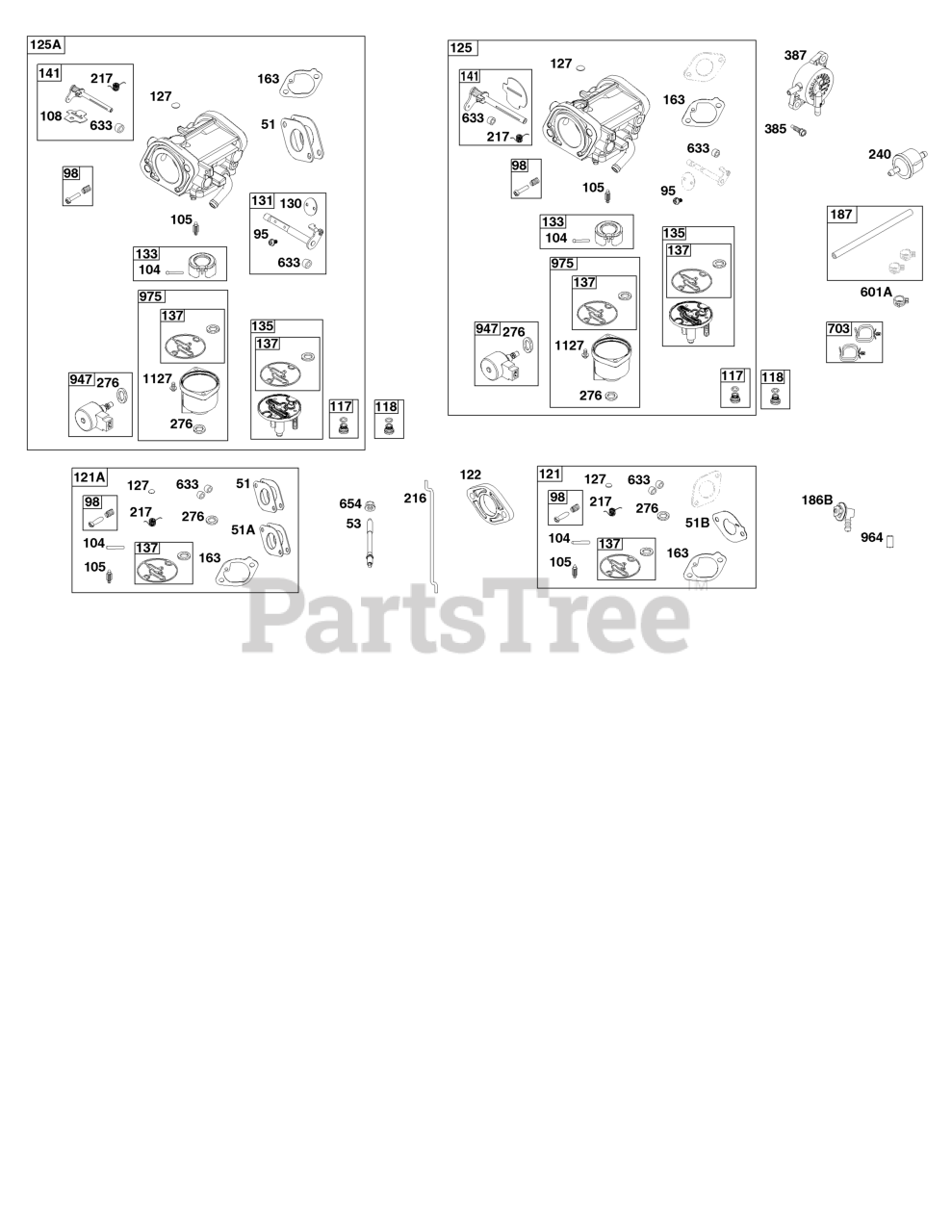

40R677-0011-B1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51B

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

Note: Used After Code Date 17081700

$13.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 699721

KIT, Idle Speed

Note: Used Before Code Date 17081800

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, Qty 17

0

108

Briggs & Stratton 699808

VALVE, Choke

Note: Used Before Code Date 17081800

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842585

JET, Main

Note: (Standard) Used After Code Date 17081700

$20.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 791406

JET, Main

Note: (Standard) Used Before Code Date 17081800

$18.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 699820

JET, Main

Note: (High Altitude) Used Before Code Date 17081800

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 792296

JET, Main

Note: (High Altitude) Used After Code Date 17081700

$17.99

$

In Stock, Qty 7

0

121

Briggs & Stratton 84001917

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.) Used After Code Date 17081700

$56.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 594375

KIT-CARBURETOR OVERHAUL

Note: (Service Kits may include extra parts not specific to this engine.) Used Before Code Date 17081800

$62.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 699802

SPACER, Carburetor

Note: Used Before Code Date 17081800

$9.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 594207

CARBURETOR

Note: Used After Code Date 17081700

$235.99

$

In Stock, only 2 left!

0

125A

Briggs & Stratton 591678

CARBURETOR

Note: Used Before Code Date 17081800

$288.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 699810

PLUG, Welch

$5.49

$

In Stock, Qty 8

0

130

Briggs & Stratton 699809

VALVE, Throttle

Note: Used Before Code Date 17081800

$11.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 699812

KIT, Throttle Shaft

Note: Used Before Code Date 17081800

$

$

Not available

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 591701

TUBE, Fuel Transfer

$38.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 594211

KIT, Choke Shaft

Note: Used After Code Date 17081700

$34.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 594203

GASKET, Intake

Note: Used After Code Date 17081700

$4.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 699800

GASKET, Intake

Note: Used Before Code Date 17081800

$3.49

$

In Stock, only 3 left!

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

216

LINK, Choke

Note: (Part information located in Controls Group.)

$

$

Not available

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

240

Briggs & Stratton 84001895

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 16

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 596039

SOLENOID, Fuel

$166.99

$

In Stock, only 1 left!

0

964

CAP, Connector

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available

975

Briggs & Stratton 591699

BOWL, Float

$64.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0
