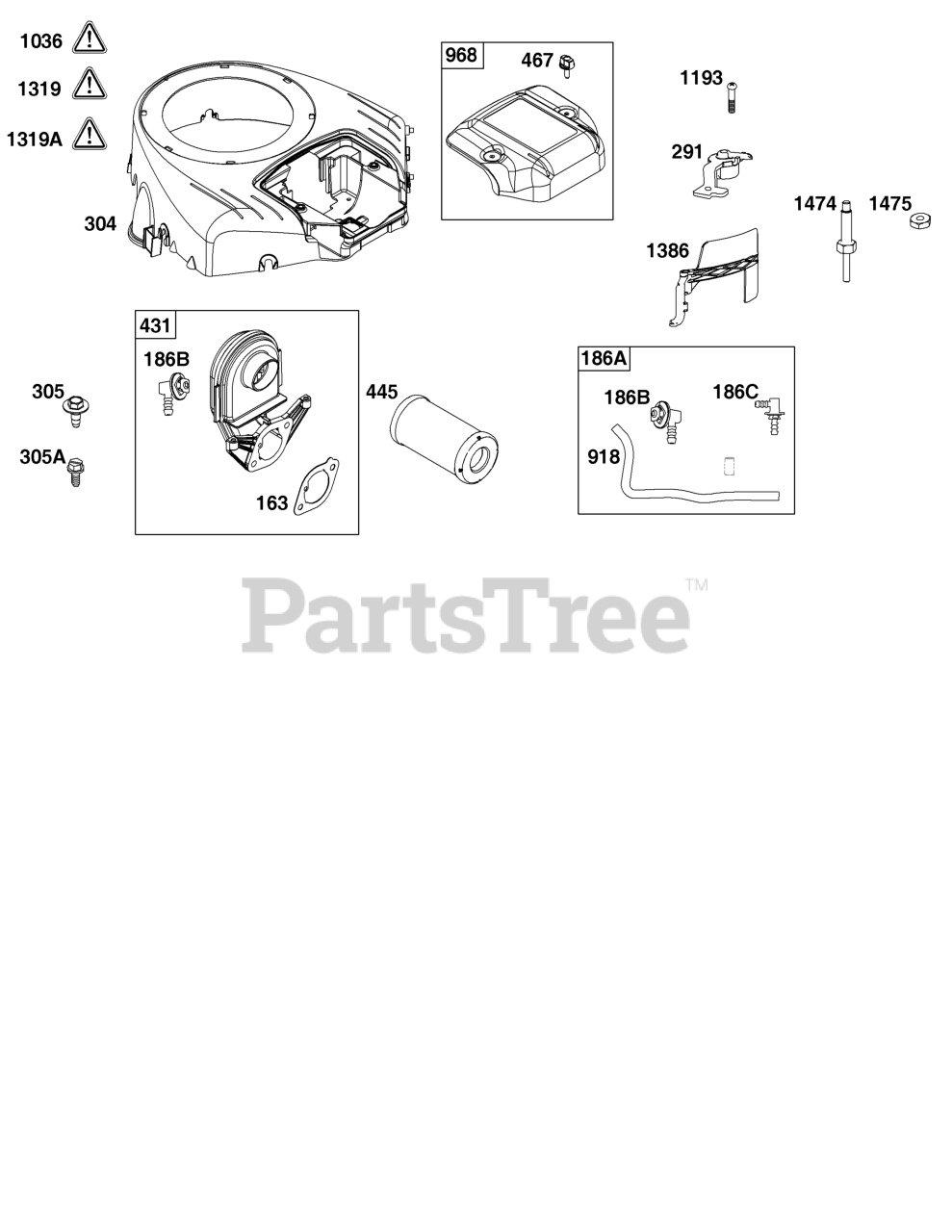

40N777-0031-B1 - Briggs & Stratton Vertical Engine Blower Housing and Air Cleaner Group Parts Diagram

Vertical Engine

Blower Housing and Air Cleaner Group Parts Diagram

  • Title

163

Briggs & Stratton 594203

GASKET, Intake

Note: (Part information located in Carburetor and Fuel Supply Group.)

$4.49

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 799158

CONNECTOR, Hose

$10.99

$

In Stock, Qty 15

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

186C

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

291

THERMOSTAT

Note: (Part information located in Controls Group.)

$

$

Not available

304

Briggs & Stratton 591656

HOUSING, Blower

$128.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 790690

SCREW

Note: (Blower Housing)

$3.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 594205

ELBOW, Intake

$65.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 594201

FILTER, A/C Cartridge

$15.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 591660

KNOB, Air Cleaner Cover

$13.99

$

In Stock, only 2 left!

0

918

Briggs & Stratton 799160

HOSE, Vacuum

$7.99

$

In Stock, only 1 left!

0

968

Briggs & Stratton 591658

COVER, Air Cleaner

$35.99

$

In Stock, Qty 18

0

1036

LABEL, Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1193

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0

1386

VANE, Air

Note: (Part information located in Controls Group.)

$

$

Not available

1474

STUD

Note: (Part information located in Controls Group.)

$

$

Not available

1475

NUT

Note: (Part information located in Controls Group.)

$

$

Not available
