40N777-0024-B1 - Briggs & Stratton Vertical Engine Lubrication Group Parts Diagram

Vertical Engine

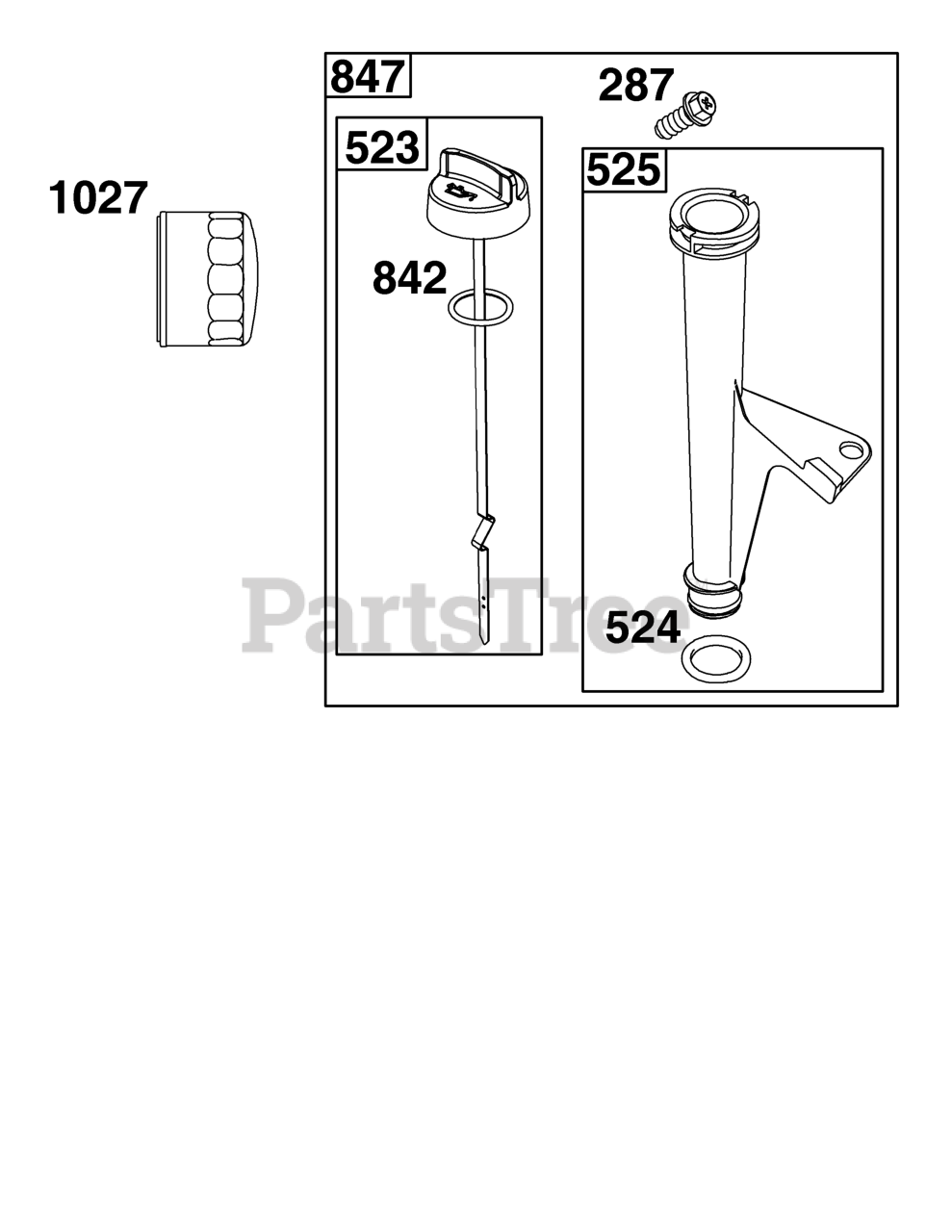

Lubrication Group Parts Diagram

  • Title

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 3 left!

0

523

Briggs & Stratton 594528

DIPSTICK

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 594609

DIPSTICK/TUBE ASSEMBLY
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 696854

FILTER, Oil

$13.99

$

In Stock, Qty 20+

0
