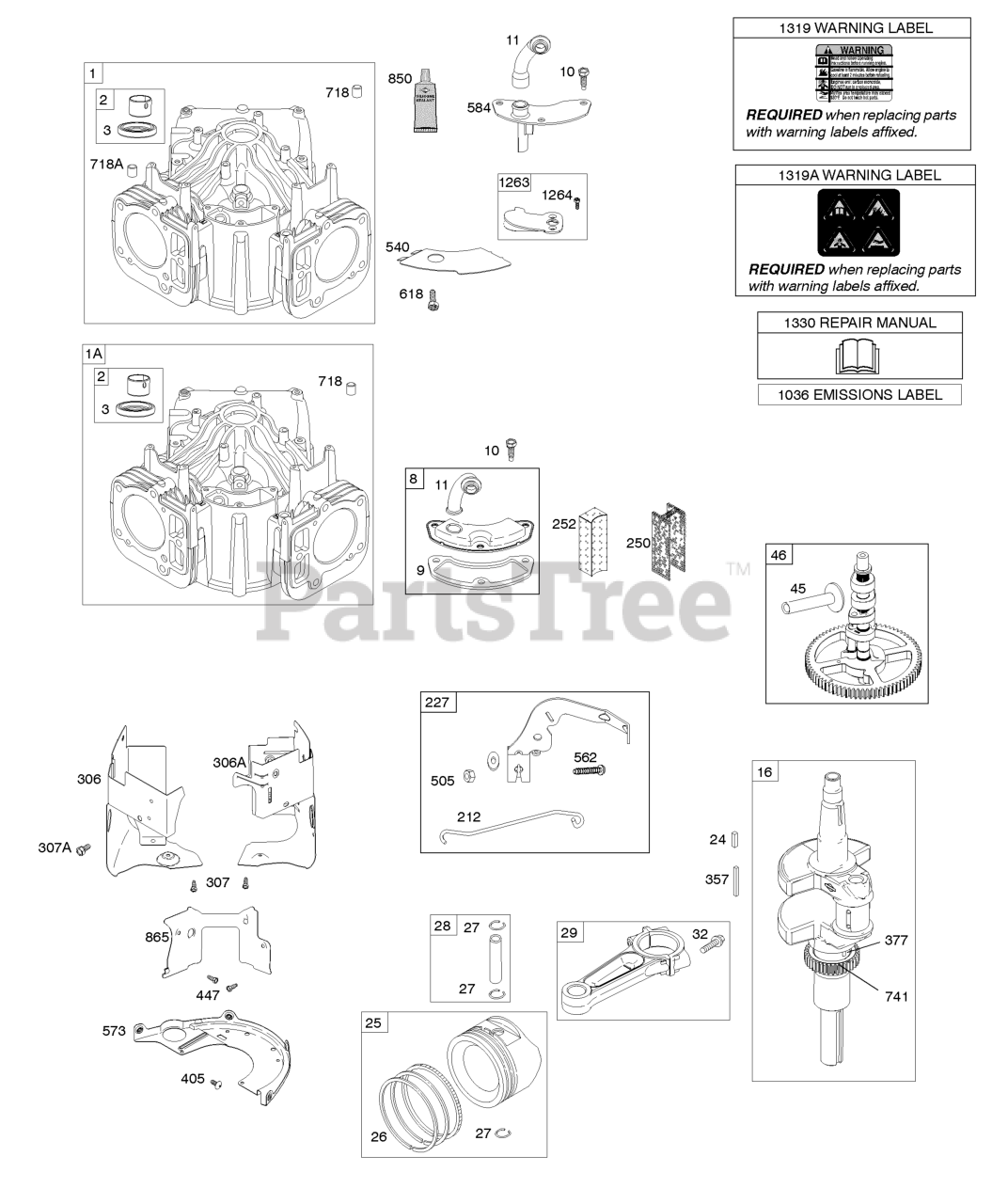

40N777-0005-B1 - Briggs & Stratton Vertical Engine Cylinder, Crankshaft, Camshaft, Air Guides Parts Diagram

Vertical Engine

Cylinder, Crankshaft, Camshaft, Air Guides Parts Diagram

  • Title

1

Briggs & Stratton 594969

CYLINDER ASSEMBLY

Note: Used After Code Date 15071500

$418.99

$

In Stock, only 1 left!

0

1A

Briggs & Stratton 594371

Cylinder Assembly
(Superseded to 594969)

Note: Used Before Code Date 15071600

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 792185

Breather Assembly

Note: Used Before Code Date 14110500

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

Note: Used Before Code Date 14110500

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 594163

TUBE, Breather

$7.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 699701

Crankshaft
(Superseded to 595704)

$385.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 793648

PISTON ASSEMBLY

Note: (.020" Oversize)

$159.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793647

PISTON ASSEMBLY

Note: (Standard)

$137.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 791792

SET, Ring

Note: (.020" Oversize)

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791787

SET, Ring

Note: (Standard)

$38.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 696581

Pin-Piston

Note: (Standard)

$17.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 796209

ROD, Connecting
(Superseded to 84007297)

Note: (Standard)

$18.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 19

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 790562

CAMSHAFT
(Superseded to 797242)

$122.99

$

In Stock, Qty 16

0

212

Briggs & Stratton 792265

LINK, Throttle
(Superseded to 597429)

$7.49

$

In Stock, Qty 20+

0

227

Briggs & Stratton 798856

LEVER, Governor Control

$23.99

$

In Stock, Qty 9

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Used Before Code Date 14110500

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

Note: Used Before Code Date 14110500

$7.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 796852

SHIELD, Cylinder
(Superseded to 84002166)

Note: (Cylinder #1)

$37.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 591666

SHIELD, Cylinder
(Superseded to 84002168)

Note: (Cylinder #2)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

307A

Briggs & Stratton 691108

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 691003

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 9

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

540

Briggs & Stratton 594325

PLATE, Baffle

$7.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 594902

PLATE, Back

$59.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 594164

COVER, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 594326

SCREW

Note: (Baffle Plate)

$5.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 594988

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

In Stock, only 2 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

865

Briggs & Stratton 591667

COVER, Air Guide

$43.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

$

$

Not available

1263

Briggs & Stratton 594166

REED, Breather

$9.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 594165

SCREW

Note: (Breather Reed)

$3.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 273521

Repair Manual

$34.99

$

In Stock, only 1 left!

0
