40F777-0100-B1 - Briggs & Stratton Vertical Engine Camshaft, Cylinder Head, Valves Parts Diagram

Vertical Engine

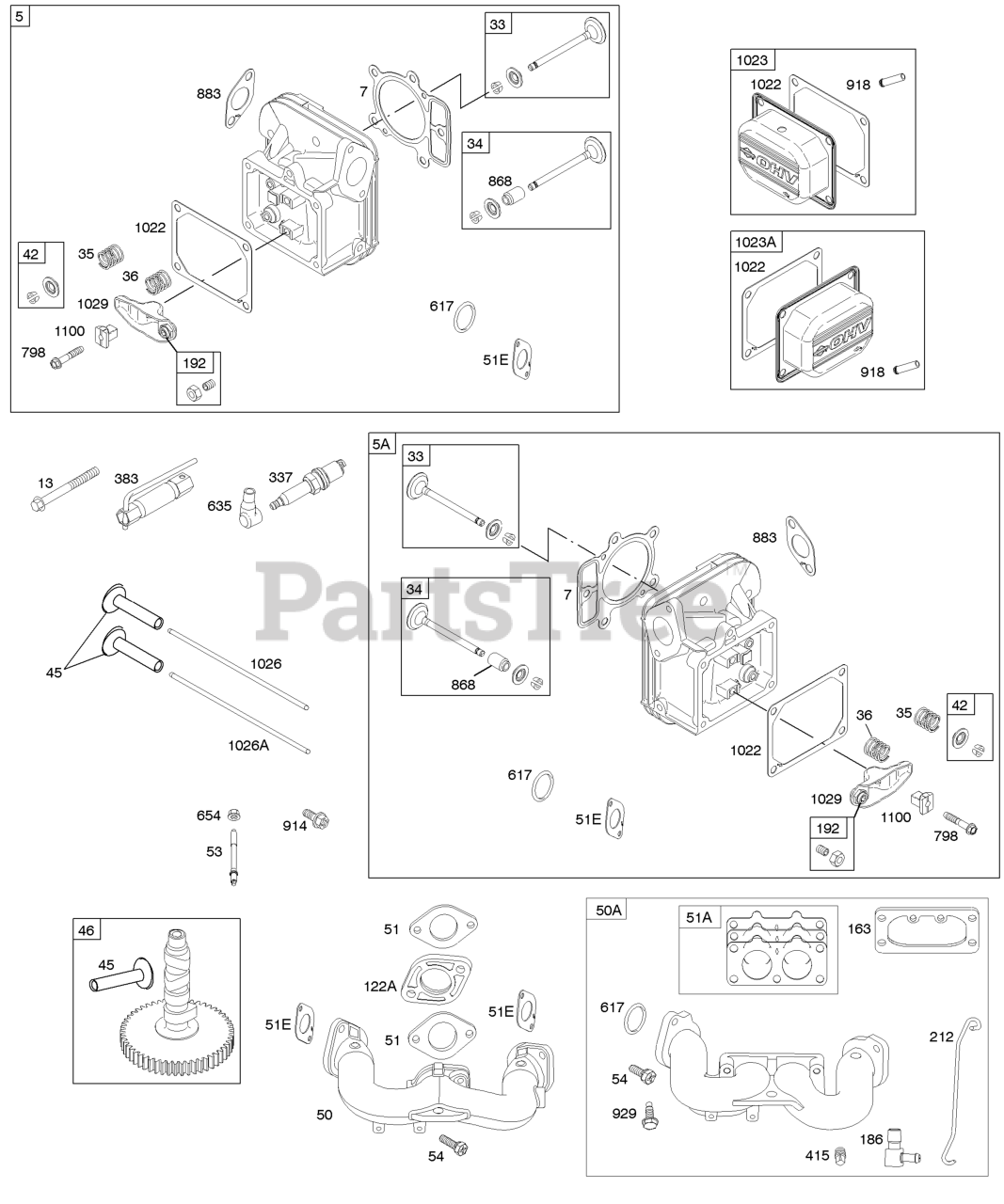

Camshaft, Cylinder Head, Valves Parts Diagram

  • Title

5

Briggs & Stratton 792299

Head-Cylinder
(Superseded to 796231)

Note: (Cylinder #1)

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 792300

Head-Cylinder
(Superseded to 796232)

Note: (Cylinder #2)

$202.99

$

In Stock, Qty 13

0

7

Briggs & Stratton 693997

GASKET, Cylinder Head

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 791130

Screw

Note: (Cylinder Head) Used Before Code Date 08070100

$4.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 793988

Screw
(Superseded to 592244)

Note: (Cylinder Head) Used After Code Date 08063000

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 697576

VALVE, Exhaust

$43.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 792200

VALVE, Intake

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 690963

Spring-Valve
(Superseded to 694865)

Note: (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 690963

Spring-Valve
(Superseded to 694865)

Note: (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 792555

CAMSHAFT
(Superseded to 797242)

$122.99

$

In Stock, Qty 19

0

50A

Briggs & Stratton 695241

Manifold-Intake
(Superseded to 595606)

Note: (Plastic)

$87.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 699803

GASKET, Intake

$4.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 795123

GASKET, Intake

$4.99

$

In Stock, Qty 10

0

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 699816

SCREW

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 7

0

122A

Briggs & Stratton 699802

SPACER, Carburetor

$9.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 12

0

186

Briggs & Stratton 795985

CONNECTOR, Hose

$13.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 695238

LINK, Throttle

Note: (Used With Plastic Intake Manifold)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 697891

Seal-O Ring
(Superseded to 691917)

Note: (Intake Manifold)

$4.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691127

SCREW

Note: (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

918

Briggs & Stratton 694000

Hose-Vacuum

$4.99

$

In Stock, Qty 20+

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket) (Used With Plastic Intake Manifold)

$3.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 499599

Cover-Rocker

Note: (Cylinder #1) Used Before Code Date 06090500

$

$

Not available

1023

Briggs & Stratton 793146

COVER, Rocker
(Superseded to 84003848)

Note: (Cylinder #1) Used After Code Date 06090400

$22.99

$

In Stock, Qty 8

0

1023A

Briggs & Stratton 499600

COVER, Rocker

Note: (Cylinder #2)

$15.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 690981

ROD, Push
(Superseded to 597785)

Note: (Steel)

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, Push

Note: (Aluminum)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

Note: Includes Reference 192

$12.99

$

In Stock, Qty 14

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 4 left!

0
