40F777-0100-B1 - Briggs & Stratton Vertical Engine Camshaft, Cylinder, Engine Sump Parts Diagram

Vertical Engine

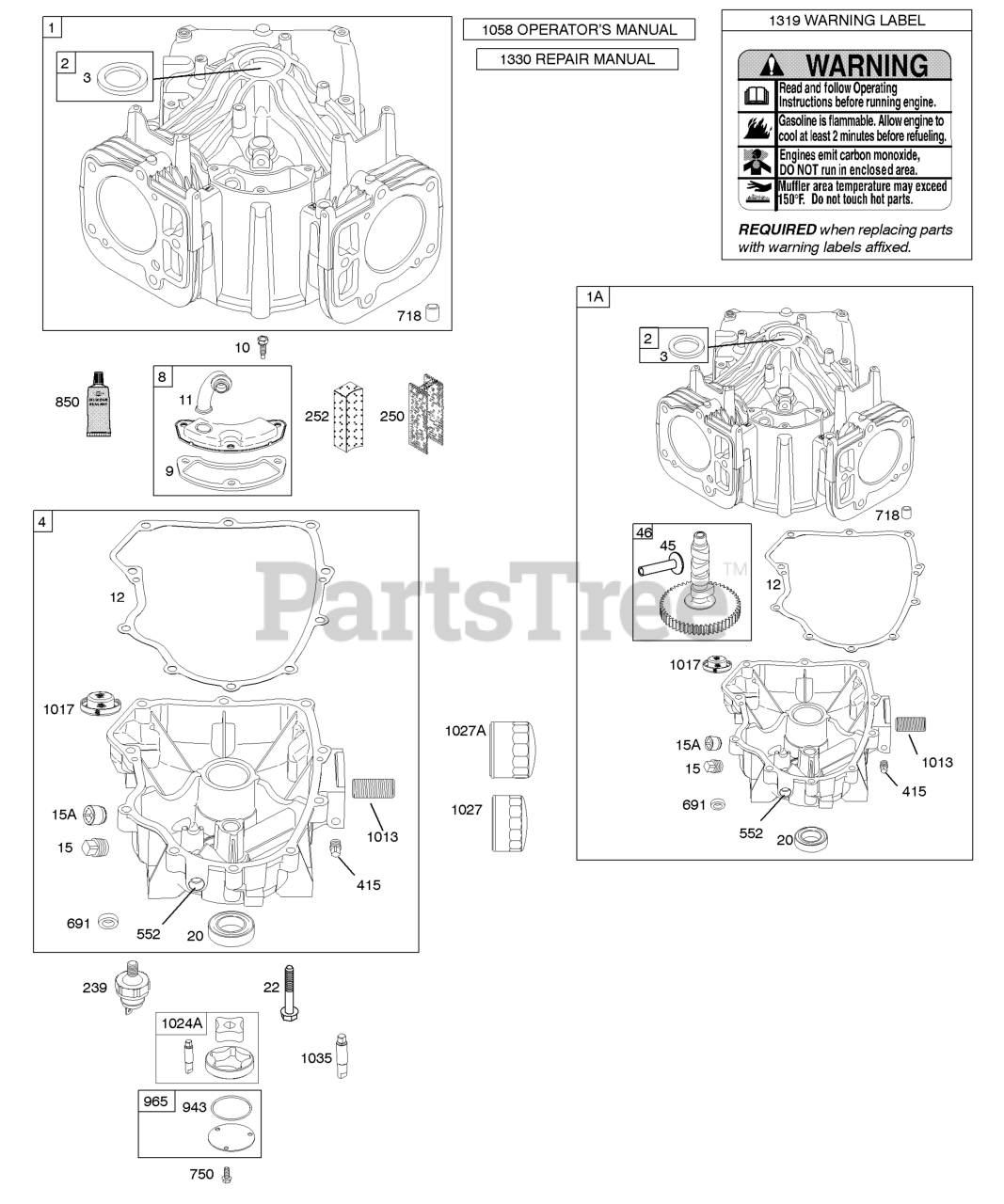

Camshaft, Cylinder, Engine Sump Parts Diagram

  • Title

1

Briggs & Stratton 699751

Cylinder Assembly
(Superseded to 594969)

Note: Used After Code Date 03082800 Used Before Code Date 07071000

$418.99

$

In Stock, only 1 left!

0

1

Briggs & Stratton 795118

Cylinder Assembly
(Superseded to 594969)

Note: Used After Code Date 07070900

$418.99

$

In Stock, only 1 left!

0

1A

Cylinder Assembly

Note: (No Longer Available-Contact A Briggs & Stratton Authorized Dealer forReplacement Short Block) Used Before Code Date 03082900

$

$

Not available

2

Briggs & Stratton 499585

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Sump-Engine

Note: (No Longer Available-Contact A Briggs & Stratton Authorized Dealer forReplacement Short Block) Used Before Code Date 03082900

$

$

Not available

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

Note: Used After Code Date 03082800

$278.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 792185

Breather Assembly

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

$14.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (1/2" Square Flush)

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 792555

CAMSHAFT
(Superseded to 797242)

$122.99

$

In Stock, Qty 16

0

239

Briggs & Stratton 792028

Switch-Oil Pressure

$28.99

$

In Stock, only 1 left!

0

250

Briggs & Stratton 690957

Retainer-Breather

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

$7.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 696999

Screw

Note: (Oil Pump Cover)

$29.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100100

Sealant-Liquid
(Superseded to 100106)

$14.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, Qty 10

0

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

$

$

Not available

1024A

Briggs & Stratton 794644

SHAFT, Pump

$35.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 492932S

FILTER, Oil

$12.99

$

In Stock, Qty 20+

0

1027A

Briggs & Stratton 696854

FILTER, Oil

$13.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 794644

SHAFT, Pump

Note: Used After Code Date 07022500

$35.99

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 691042

Shaft-Pump
(Superseded to 794644)

Note: Used Before Code Date 07022600

$35.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 276352

Operator's Manual

Note: (Emission)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 273521

Repair Manual

$34.99

$

In Stock, only 1 left!

0
