40A777-1227-01 - Briggs & Stratton Vertical Engine Oil Pump and Filter Assy. Parts Diagram

Vertical Engine

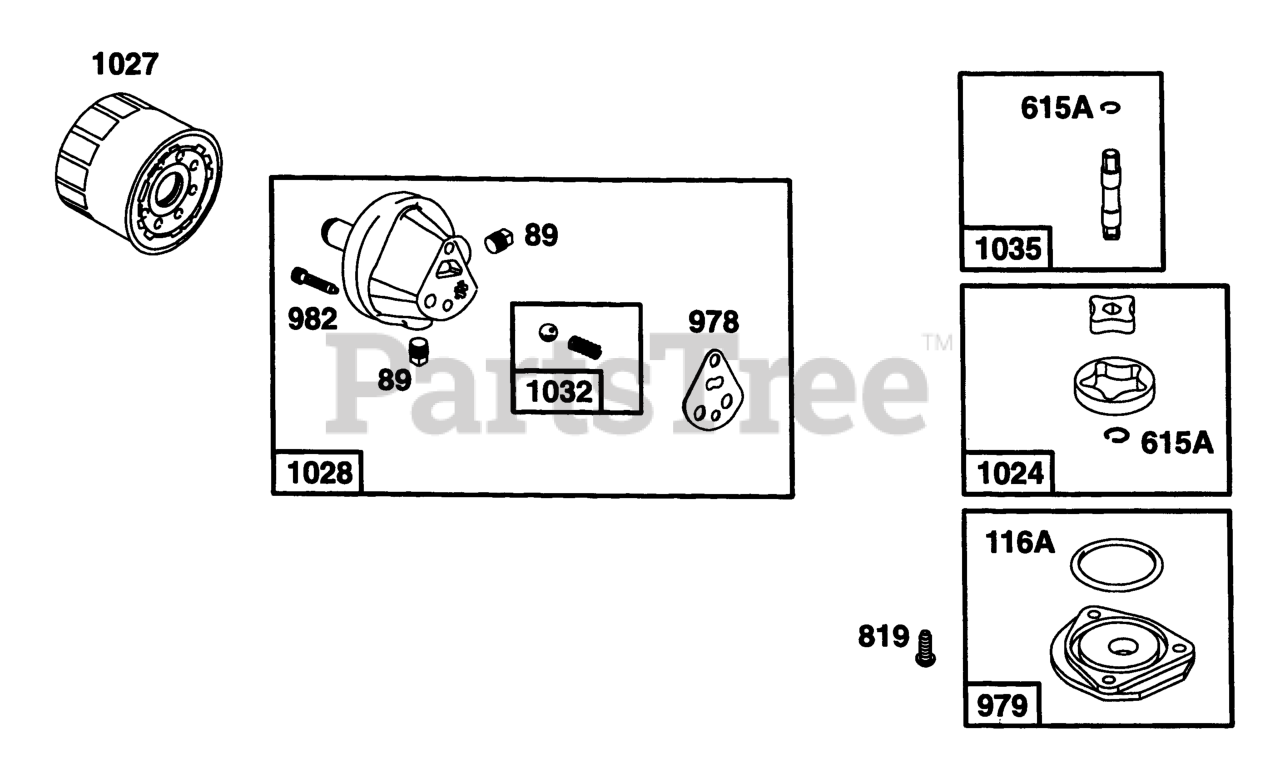

Oil Pump and Filter Assy. Parts Diagram

  • Title

89

Briggs & Stratton 91488

Plug, Pipe (1/8")
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 280801

O-Ring (Oil Pump Cover)
(Superseded to 690589)

Note: Included in Gasket Set-Part No. 495868

$8.99

$

In Stock, Qty 20+

0

615A

Briggs & Stratton 94400

Ring-Retaining
(Superseded to 692334)

$4.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 94410

Screw-Phillips
(Superseded to 690336)

$2.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 272060

Gasket-Oil Adapter
(Superseded to 691313)

Note: Included in Gasket Set-Part No. 495868

$

$

Not available

979

Briggs & Stratton 492197

Cover-Pump

$23.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94362

Screw-Socket
(Superseded to 690332)

$4.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 492196

Pump-Oil
(Superseded to 794644)

$35.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 491056

Filter-Oil (3-1/4" Long)

Note: Used Before Code Date 95060500

$9.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 492932

Filter, Oil (2 1/4" Long)
(Superseded to 492932S)

Note: Used After Code Date 95060400

$12.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 491721

Adapter-Oil Filter

$106.99

$

Usually ships in 2-12 days

0

1032

Briggs & Stratton 491710

Spring-Compression

$4.99

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 492589

Shaft-Pump
(Superseded to 693158)

$17.99

$

Usually ships in 2-12 days

0
