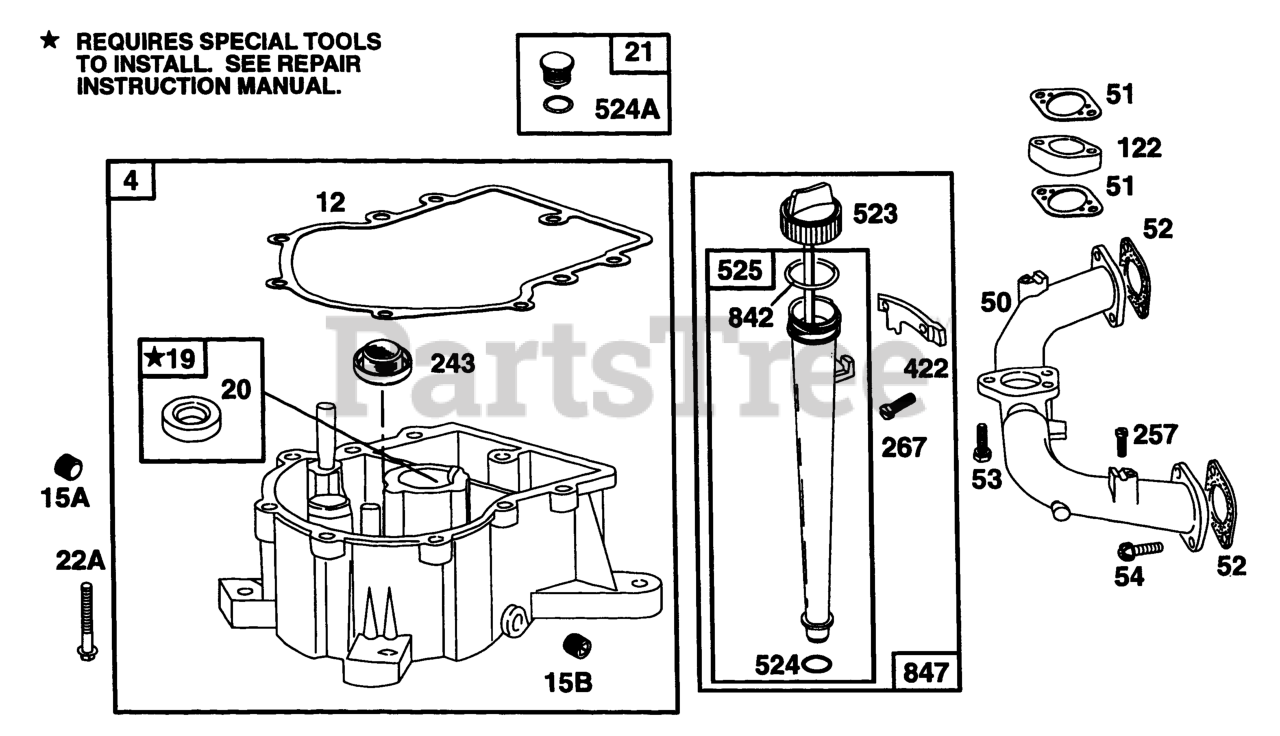

40A777-1221-01 - Briggs & Stratton Vertical Engine Sump Base, High Oil Fill Parts Diagram

Vertical Engine

Sump Base, High Oil Fill Parts Diagram

  • Title

4

Briggs & Stratton 492575

Sump-Engine

$

$

Not available

12

Briggs & Stratton 271188

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 271189

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271703

Gasket, Crankcase (.015" Thick, Std.)
(Superseded to 692292)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

Usually ships in 2-12 days

0

15A

Briggs & Stratton 94239

Plug, Pipe (Standar (Square Head)
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

15B

Briggs & Stratton 94720

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 399264

Bushing/Seal Kit (DU)

$

$

Not available

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 495868

$6.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 399195

Plug/Seal Assy (For High Oil Fill)
(Superseded to 691363)

$10.99

$

Usually ships in 2-12 days

0

22A

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

50

Briggs & Stratton 213290

Manifold-Intake
(Superseded to 691709)

$

$

Not available

51

Briggs & Stratton 271412

Gasket-Intake
(Superseded to 692278)

Note: Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491539

$5.49

$

In Stock, Qty 8

0

52

Briggs & Stratton 270884

Gasket-Intake Manifold Mtg.
(Superseded to 692219)

Note: Included in Gasket Set-Part No. 495868

$5.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

53

Briggs & Stratton 93970

Screw, Sem Hex Head
(Superseded to 690321)

$6.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 3 left!

0

122

Briggs & Stratton 280319

Spacer-Carburetor
(Superseded to 691928)

$

$

Not available

243

Briggs & Stratton 491722

Screen-Oil Pump
(Superseded to 690770)

$

$

Not available

257

Briggs & Stratton 93897

Screw, Sem Hex Head
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

267

Briggs & Stratton 94694

Screw, Tapping Hex
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222875

Clamp-Oil Filler
(Superseded to 691176)

$

$

Not available

523

Briggs & Stratton 494947

Dipstick
(Superseded to 691385)

$31.99

$

Usually ships in 2-12 days

0

524A

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 495868

$5.49

$

In Stock, Qty 11

0

524

Briggs & Stratton 271157

Seal-O
(Superseded to 692532)

Note: Included in Gasket Set-Part No. 495868

$5.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 495348

Tube-Oil Filler
(Superseded to 690823)

$28.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 495868

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 495715

Tube Assy.-Oil

$

$

Not available
