409777-0001-01 - Briggs & Stratton Vertical Engine Flywheel, Alternator, Starter, Wire Harness Parts Diagram

Vertical Engine

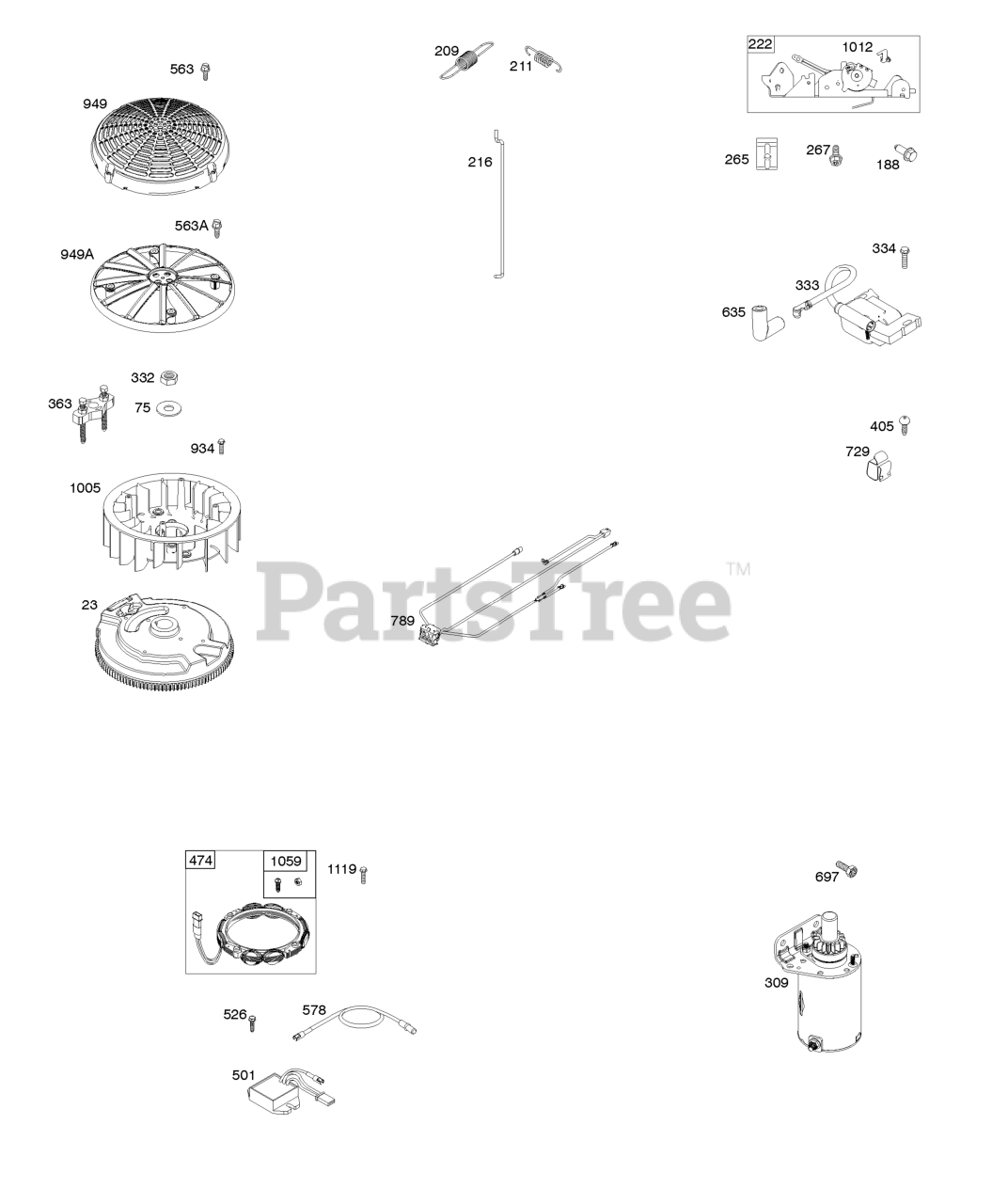

Flywheel, Alternator, Starter, Wire Harness Parts Diagram

  • Title

23

Briggs & Stratton 594169

FLYWHEEL

$235.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799171

Spring-Governor

Note: (Light Blue)

$7.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Governed Idle

Note: (No Color)

$4.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 796229

LINK, Choke

$9.49

$

In Stock, Qty 11

0

222

Briggs & Stratton 592555

BRACKET, Control

$43.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 590476

MOTOR, Starter

$177.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 592846

ARMATURE, Magneto

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 697820

SCREW

Note: (Back Plate) (Mounting)

$4.49

$

In Stock, only 3 left!

0

474

Briggs & Stratton 592830

ALTERNATOR

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 593490

REGULATOR

$46.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

563

Briggs & Stratton 698425

SCREW

Note: (Debris Screen Guard)

$3.49

$

In Stock, Qty 20+

0

563A

Briggs & Stratton 799360

SCREW

Note: (Debris Screen Guard)

$3.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 797463

Wire Assembly

$

$

Not available

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 591909

SCREW

Note: (Starter Motor) (Drive Cap)

$2.99

$

In Stock, Qty 10

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591392

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 593638

SCREW

Note: (Fan Retainer)

$5.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 799357

GUARD, Debris Screen

$45.99

$

In Stock, only 2 left!

0

949A

Briggs & Stratton 593206

GUARD, Debris Screen

$39.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$26.99

$

In Stock, only 1 left!

0

1012

Briggs & Stratton 592556

RETAINER, Link

$5.99

$

In Stock, only 1 left!

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
