409777-0001-01 - Briggs & Stratton Vertical Engine Engine Sump, Oil Pump, Dipstick/Tube Assembly Parts Diagram

Vertical Engine

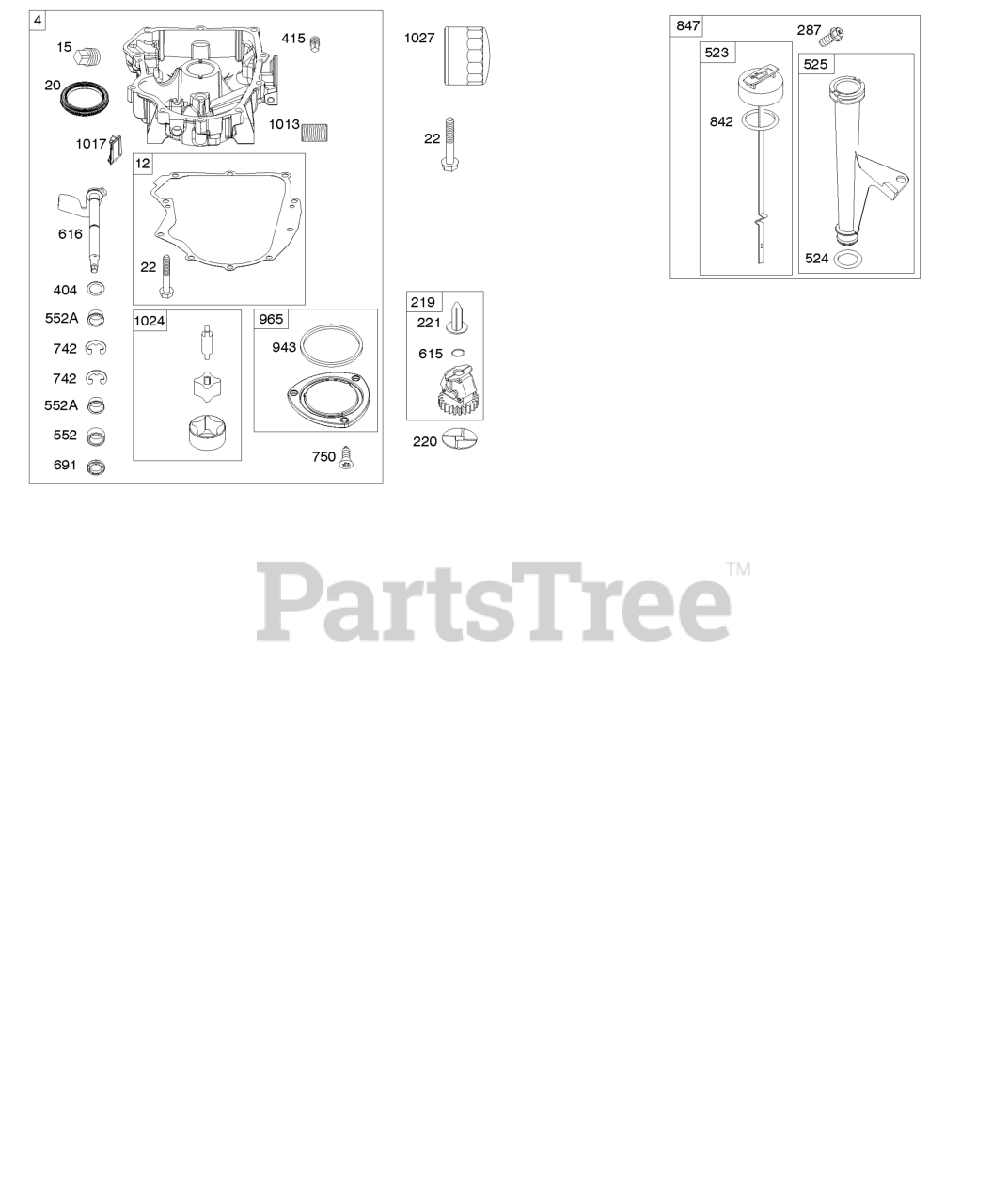

Engine Sump, Oil Pump, Dipstick/Tube Assembly Parts Diagram

  • Title

4

Briggs & Stratton 796307

Sump-Engine

$278.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 594195

Gasket-Crankcase

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 793338

GEAR, Governor

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 799772

WASHER

Note: (Governor Gear)

$6.49

$

In Stock, Qty 20+

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 3 left!

0

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, Qty 5

0

415

Briggs & Stratton 794903

PLUG

Note: (Sump)

$5.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 796638

BUSHING, Governor Crank

$6.99

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

CRANK, Governor

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

In Stock, Qty 6

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, only 3 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$47.99

$

In Stock, only 2 left!

0

943

Briggs & Stratton 796222

SEAL, O-Ring

Note: (Oil Pump Cover)

$6.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 796221

COVER, Oil Pump

$10.99

$

In Stock, only 1 left!

0

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 796220

PUMP, Oil

$31.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 696854B

FILTER, Oil

$

$

Not available
