40968 - Gravely Briggs & Stratton Muffler for 4-Wheel Tractor REPLACEMENT EXHAUST SYSTEM Parts Diagram

Briggs & Stratton Muffler for 4-Wheel Tractor

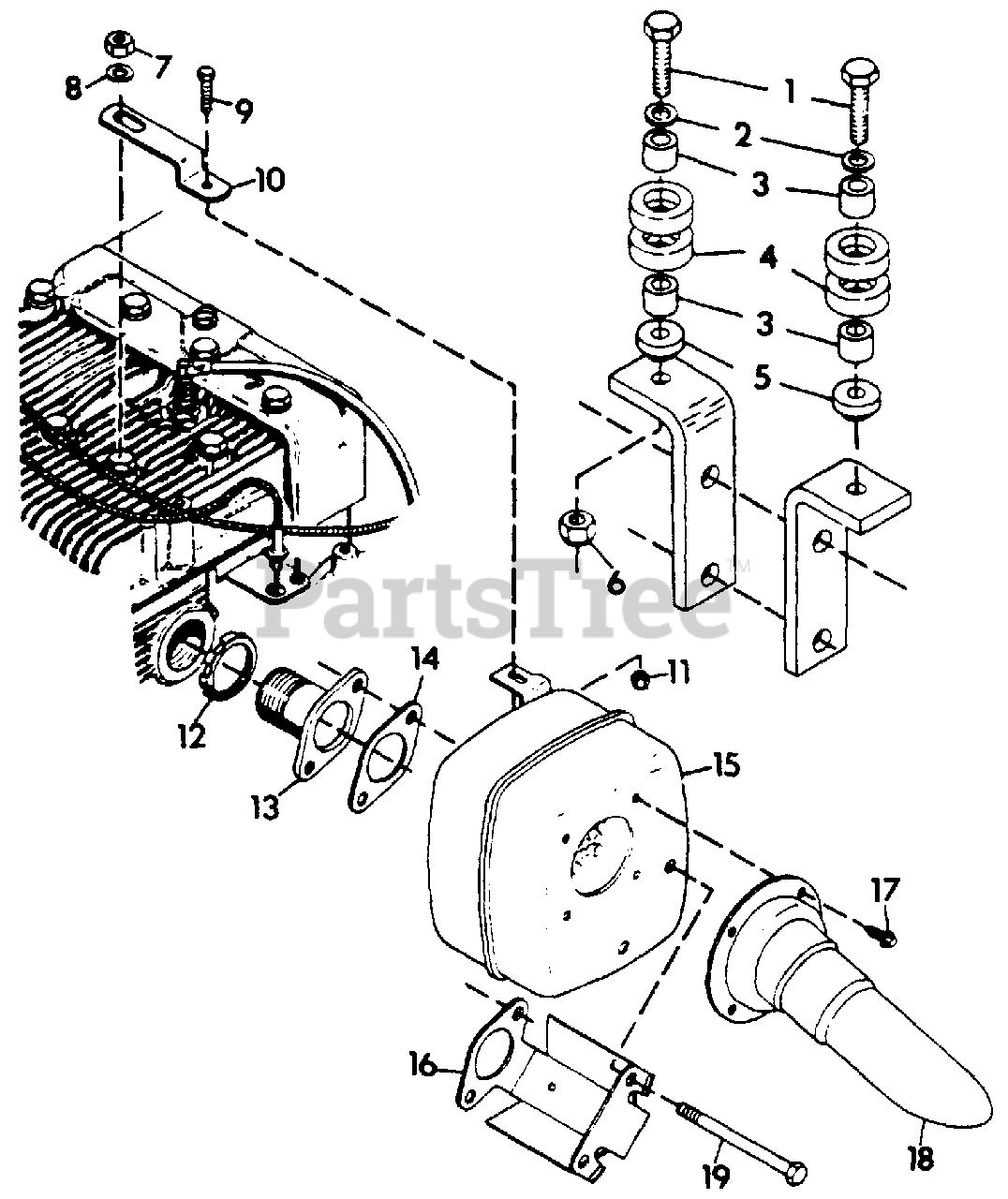

REPLACEMENT EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 180046

BOLT, HEX 1/4-20X2-1/4
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 034723

BUSHING, .259X.375X.25
(Superseded to 08708300)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 024357

BUMPER, SEAT
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 012117

PIVOT, HOOD
(Superseded to 21344100)

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

8

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 040830

BRACKET, MUFFLER
(Superseded to 21256200)

$

$

Not available

11

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 010866

NUT, CONDUIT 1" PIPE

$

$

Not available

13

Gravely 040763

WELDMENT, MUFFLER ADAPTER
(Superseded to 21255300)

$

$

Not available

14

Gravely 040766

GASKET
(Superseded to 21255600)

$

$

Not available

15

Gravely 040765

MUFFLER
(Superseded to 21255500)

$

$

Not available

16

Gravely 040764

SHIELD, MUFFLER
(Superseded to 21255400)

$

$

Not available

17

Gravely 040762

SCREW, TAPPING
(Superseded to 21255200)

$

$

Not available

18

Gravely 040831

WELDMENT, MUFFLER DEFLECTOR
(Superseded to 21256300)

$

$

Not available

19

Gravely 040767

BOLT, HEX SHOULDER
(Superseded to 21255700)

$

$

Not available

NS

Gravely 040834

STUD, MUFFLER BRACKET
(Superseded to 21256400)

$

$

Not available
