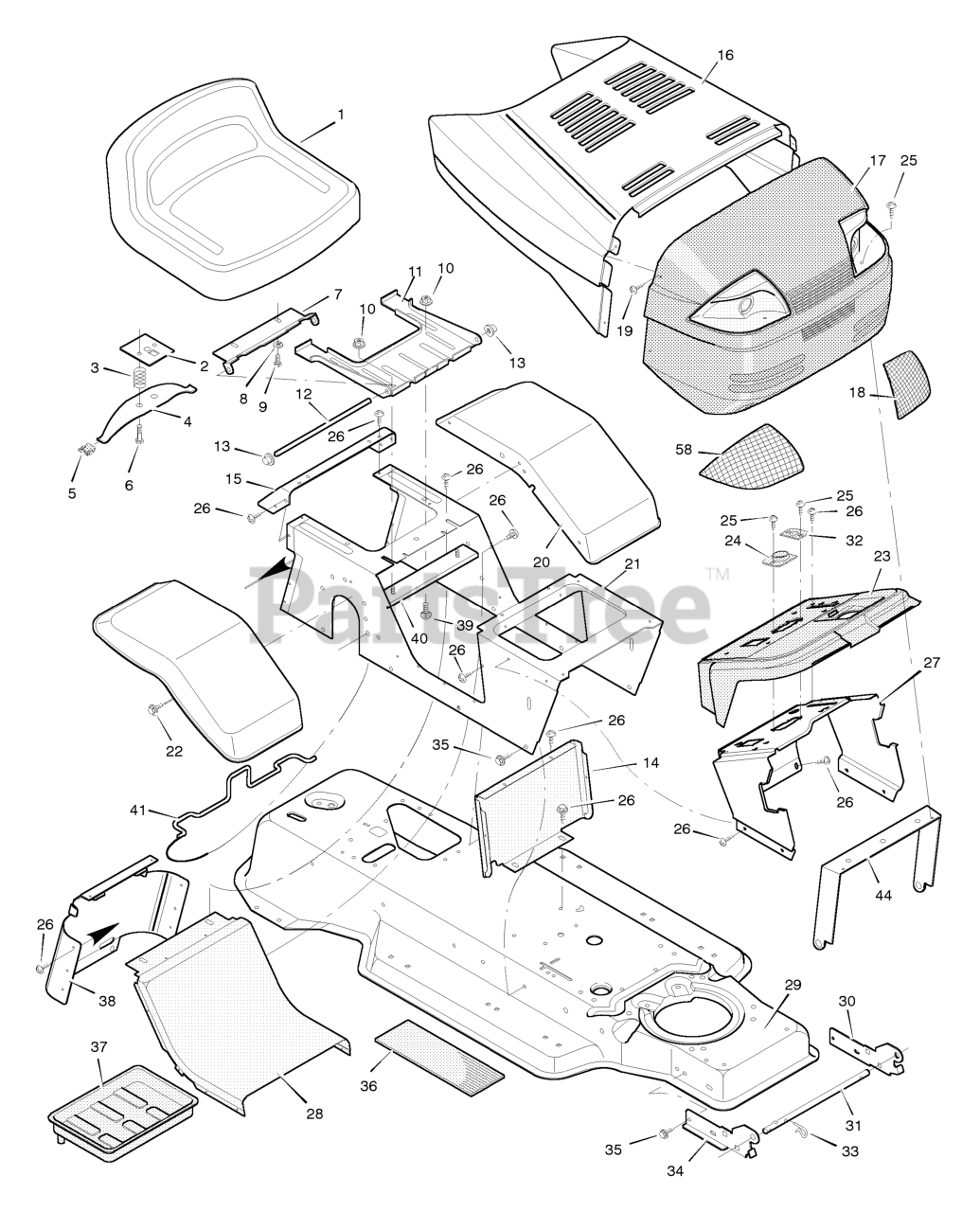

40907x20C - Murray 40" Lawn Tractor (1996) Chassis & Hood Parts Diagram

40" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 091963 Z

Plate Assembly, Switch

$

$

Currently unavailable

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 92334E701

Support, Seat

$76.99

$

Usually ships in 2-12 days

0

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

11

Murray 092546E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 91730E701

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 092548F200

Insert, Front

$

$

Currently unavailable

15

Murray 91724E701

Fender, Apron

$

$

Currently unavailable

$

$

Currently unavailable

17

Murray 092542

Grille Assembly

Note: (Includes Lens)

$384.99

$

Usually ships in 2-12 days

0

18

Murray 092540MA

Lens, Left

$71.99

$

Usually ships in 2-12 days

0

19

$4.49

$

Usually ships in 2-12 days

0

20

$41.99

$

Usually ships in 2-12 days

0

21

Murray 092729F200

Console Assembly

$

$

Currently unavailable

22

$4.99

$

In Stock, only 1 left!

0

23

Murray 093134

Dash Panel

$

$

Currently unavailable

24

Murray 093135MA

Bearing, Steering

$2.49

$

Usually ships in 2-12 days

0

25

$4.49

$

In Stock, only 2 left!

0

26

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

27

Murray 93136E701

Support, Dash

$

$

Currently unavailable

28

Murray 092549F200

Insert, Rear

$

$

Currently unavailable

29

Murray 092815F200

Frame Assembly

$

$

Currently unavailable

30

Murray 092347E701MA

Bracket, Left Grille

$8.49

$

Usually ships in 2-12 days

0

31

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

32

Murray 093155

Bearing

$

$

Currently unavailable

33

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Murray 92346E701

Bracket, Right Grille

$

$

Currently unavailable

35

$

$

Not available

$13.99

$

Usually ships in 2-12 days

0

37

Murray 091895MA

Tray, Battery

$

$

Not available

38

Murray 092443F200

Cap, Console

$

$

Currently unavailable

39

$4.49

$

In Stock, only 1 left!

0

40

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

41

Murray 092725 Z

Clamp, Battery

$

$

Currently unavailable

44

Murray 92541 Z

Brace, Grille

$

$

Currently unavailable

45

Murray 17X382

Washer

$

$

Currently unavailable

46

Murray 06X100

Bolt, Hex

$

$

Currently unavailable

58

Murray 092539MA

Lens, Right

$71.99

$

Usually ships in 2-12 days

0

--

Murray F-96920

Book, Instruction

$

$

Currently unavailable

--

Murray F-96921

Repair Parts Book

$

$

Currently unavailable

--

Murray 44X4101

Decal, Left Hood

$5.99

$

Usually ships in 2-12 days

0

--

Murray 44X4100

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X5198

Decal, Left Console

$

$

Currently unavailable

--

Murray 44X5197

Decal, Right Console

$

$

Currently unavailable

--

Murray 280X57

Plaque, Name (Hood)

$2.49

$

Usually ships in 2-12 days

0
