409.9 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

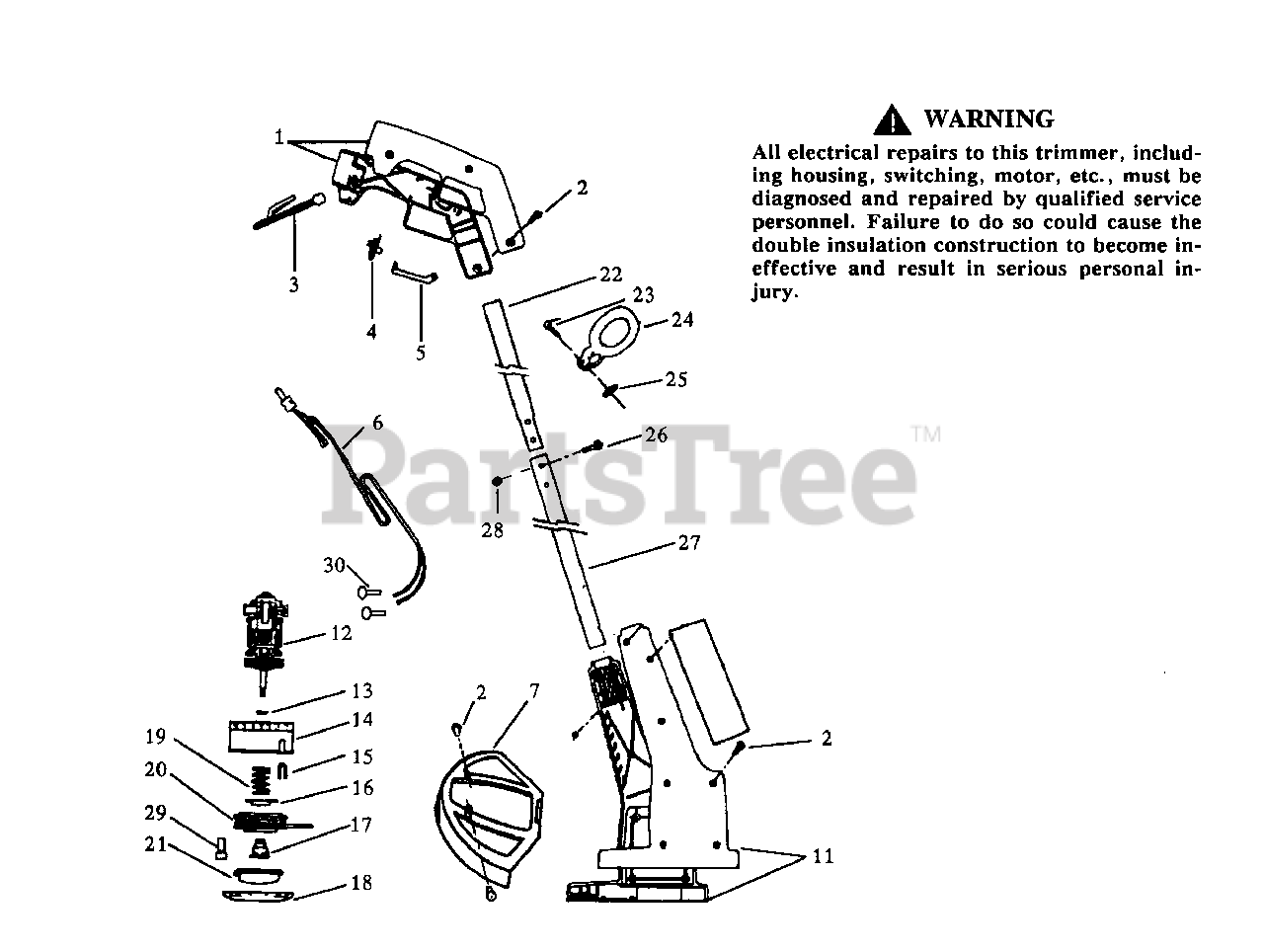

TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Poulan 530347598

Trigger Handle

$

$

Not available

$

$

Not available

3

Poulan 530347653

Cord Retainer

$

$

Not available

4

Poulan 530347897

On-Off Switch

$

$

Not available

5

Poulan 530347654

Trigger Switch

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530347877

Wiring Harness

$

$

Not available

7

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530340887

Motor Housing Set

$

$

Not available

12

Poulan 530340556

Motor Assembly

$

$

Not available

13

$1.49

$

Usually ships in 3-10 days

0

$20.99

$

Usually ships in 3-10 days

0

15

Poulan 530340594

Line Saver

$1.99

$

Usually ships in 3-10 days

0

16

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 530340590

Drive Gear

$

$

Not available

18

$

$

Not available

19

$3.99

$

In Stock, only 1 left!

0

20

Poulan 952701521

Spool w/Line

$

$

Not available

21

Poulan 530340592

Tap Button

$

$

Not available

22

Poulan 530344506

upper Tube

$

$

Not available

$1.99

$

Usually ships in 3-10 days

0

24

Poulan 530322295

Assist Handle

$

$

Not available

25

Poulan 530015659

Wing nut

$

$

Not available

26

$

$

Not available

27

Poulan 530344507

lower Tube

$

$

Not available

28

Poulan 530015653

Locknut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

29

$4.99

$

In Stock, only 4 left!

0

30

Poulan 530343307

Connector

$

$

Not available

Poulan 530347236

Motor Hsg. Decal

$

$

Not available

Poulan 530400072

Operator's Manual

$

$

Not available

Poulan 530400076

Carton (Not a serviceable part)

$

$

Not available

Poulan 530400077

Carton Contents Bag

$

$

Not available
