408 (590-408-100) - Cub Cadet Backhoe Swing Cylinder Parts Diagram

Backhoe

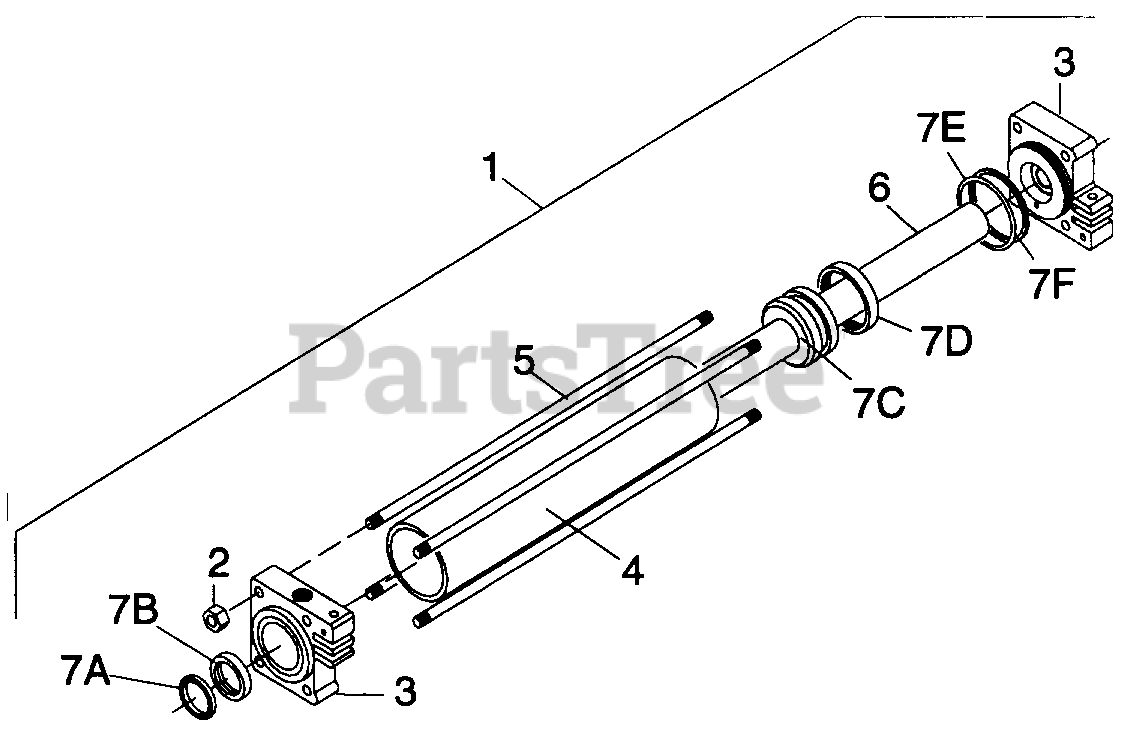

Swing Cylinder Parts Diagram

  • Title

1

Cub Cadet WM-37594

2-1/2 x 10-5/8 Double acting hydraulic cylinder

$

$

Not available

2

Cub Cadet WM-29685

7/16 NC Hex nut

Note: Obtain Locally

$

$

Not available

3

Cub Cadet WM-37875

2-1/2 OD x 1-1/4 ID Guide

$

$

Not available

4

2-1/2 ID x 3/16 Wall x 12-3/4 Cylinder tube

Note: Not serviceable

$

$

Not available

5

Cub Cadet WM-64873

.385 Dia. x 16 Tie rod

$

$

Not available

6

Cub Cadet WM-37874

1-1/4 x 2-1/2 Piston rod assembly

$

$

Not available

?7

Cub Cadet WM-37873

Seal kit

Note: (includes 7A thru 7F)

$

$

Not available

7A

1-1/4 ID x 1-1/2 OD Rod wiper

Note: Included in Seal Kit

$

$

Not available

7B

1-1/4 x 1-5/8 x 5/16 U-Cup seal

Note: Included in Seal Kit

$

$

Not available

7C

3/4 x 7/8 O-Ring

Note: Included in Seal Kit

$

$

Not available

7D

2-1/2 Piston seal

Note: Included in Seal Kit

$

$

Not available

7E

2-1/4 x 2-1/2 O-Ring

Note: Included in Seal Kit

$

$

Not available

7F

2-1/4 x 2-1/2 Back-up ring

Note: Included in Seal Kit

$

$

Not available
