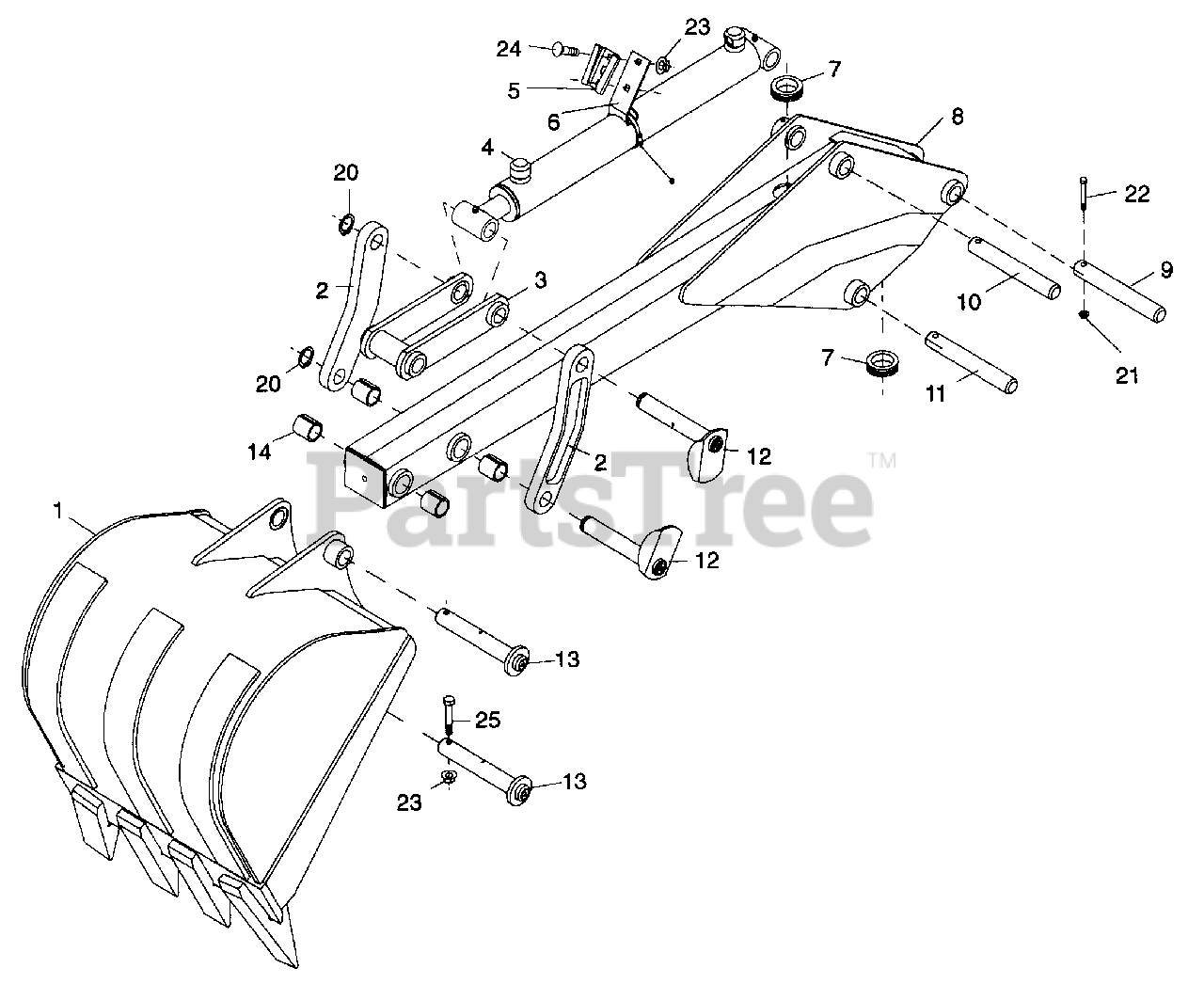

408 (590-408-100) - Cub Cadet Backhoe att Dipperstick Assembly Parts Diagram

Backhoe

Dipperstick Assembly Parts Diagram

  • Title

1

Cub Cadet WM-37708

8" BH7500 Bucket

$

$

Not available

1

Cub Cadet WM-37712

12" BH7500 Bucket

$

$

Not available

1

Cub Cadet WM-37716

16" BH7500 Bucket

$

$

Not available

1

Cub Cadet WM-37718

18" BH7500 Bucket

$

$

Not available

1

Cub Cadet WM-37724

24" BH7500 Bucket

$

$

Not available

Cub Cadet WM-D1070

Shank, Tooth-Bucket

Note: Not Shown

$

$

Not available

Hex Locknut, 7/16 NC

Note: Not Shown; Purchase Locally

$

$

Not available

Hex Hd Cap Screw, 7/16 NCX 1.75 GR5

Note: Not Shown; Purchase Locally

$

$

Not available

2

Cub Cadet WM-37768

1.00 Dia. x 9.00 Guide link

$

$

Not available

3

Cub Cadet WM-37602

Bucket link

$

$

Not available

4

Cub Cadet WM-37592

2 x 16.75 Double-acting hyd. cylinder
(Superseded to WM-37592P)

Note: (See "Hydraulic Cylinder" illustrations and parts lists.)

$

$

Not available

5

Socket SMV (Slow Moving Vehicle) emblem

Note: Not serviceable

$

$

Not available

6

SMV Socket bracket

Note: Not serviceable

$

$

Not available

7

Cub Cadet WM-37626

.19 x 1.50 x 1.75 Grommet

$

$

Not available

8

Cub Cadet WM-37579

7.5 Backhoe dipperstick

$

$

Not available

9

Cub Cadet WM-37692

1.0 x 4.86 x 5.31 Drilled bar

$

$

Not available

10

Cub Cadet WM-37691

1.0 x 5.23 x 5.69 Driller bar

$

$

Not available

11

Cub Cadet WM-62266

Pivot pin - Boom

$

$

Not available

11

Cub Cadet WM-37690

1.0 x 7.30 x 7.69 Drilled bar

$

$

Not available

12

Cub Cadet WM-37624

1.0 x 5.75 Clevis pin

$

$

Not available

13

Cub Cadet WM-37625

1.0 x 5.71 Clevis pin

$

$

Not available

14

Cub Cadet WM-34017

1 x 1-1/4 x 1-1/2 Tension bushing

$

$

Not available

20

Cub Cadet WM-62102

.042 x .925 External retaining ring

$

$

Not available

21

Cub Cadet WM-6128

1/4 NC Hex locknut
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

22

Cub Cadet WM-37531

1/4 NC x 2-1/2 Hex head cap screw GR8

$

$

Not available

23

Cub Cadet WM-14139

5/16 NC Flange hex locknut

$

$

Not available

24

Cub Cadet WM-62532

5/16 NC x 1/2 Carriage bolt
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet WM-10509

5/16 x 2-1/2 Hex head cap screw GR5
(Superseded to 710-0378)

Note: Obtain Locally

$4.99

$

In Stock, only 4 left!

0
