408 (590-408-100) - Cub Cadet Backhoe att Boom Assembly Parts Diagram

Backhoe

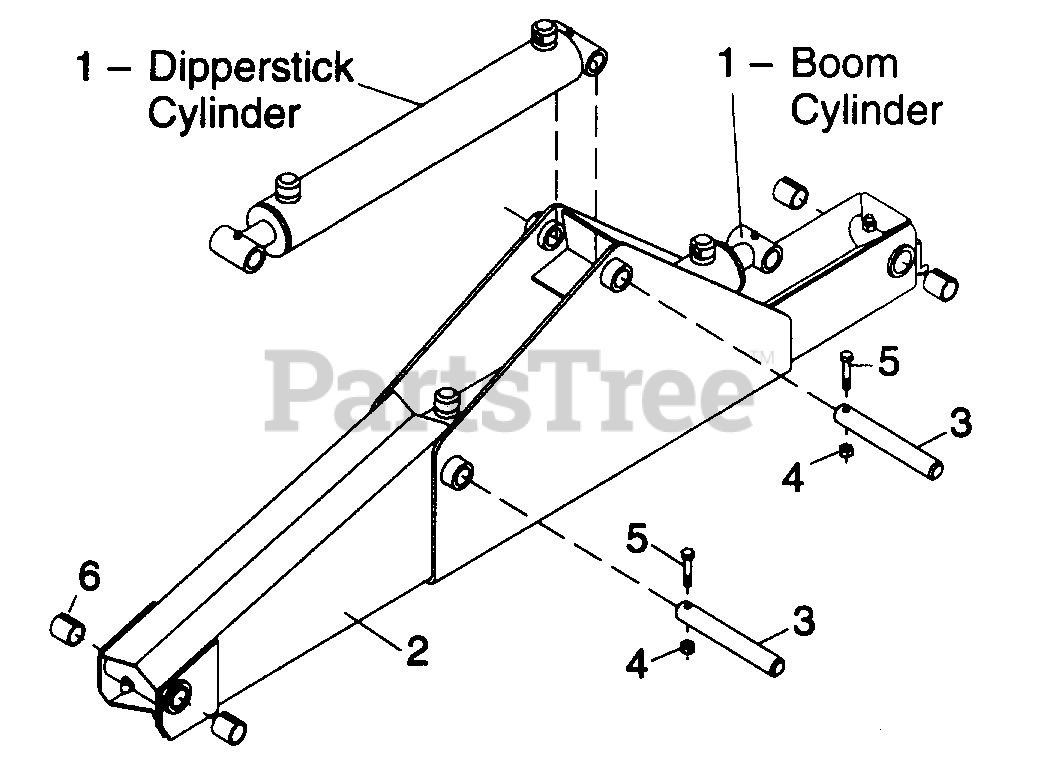

Boom Assembly Parts Diagram

  • Title

1

Cub Cadet WM-37591

2.50 x 16.75 Double acting hydraulic cylinder K
(Superseded to WM-37591P)

Note: (See "Hydraulic Cylinder" illustrations and parts lists.)

$

$

Not available

2

Cub Cadet WM-37516

Boom

$

$

Not available

3

Cub Cadet WM-62295

1.00 x 5.92 x 6.31 Drilled bar

$

$

Not available

4

Cub Cadet WM-6128

1/4 NC Hex locknut
(Superseded to 912-0117)

Note: Obtain Locally

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet WM-37531

1/4 NC x 2-1/4 Hex head cap screw GR5

$

$

Not available

6

Cub Cadet WM-34017

1 x 1-1/4 x 1-1/2 Tension bushing

$

$

Not available
