407777-0990-G5 - Briggs & Stratton Vertical Engine Alternator, Wire Harness, Starter, Ignition Parts Diagram

Vertical Engine

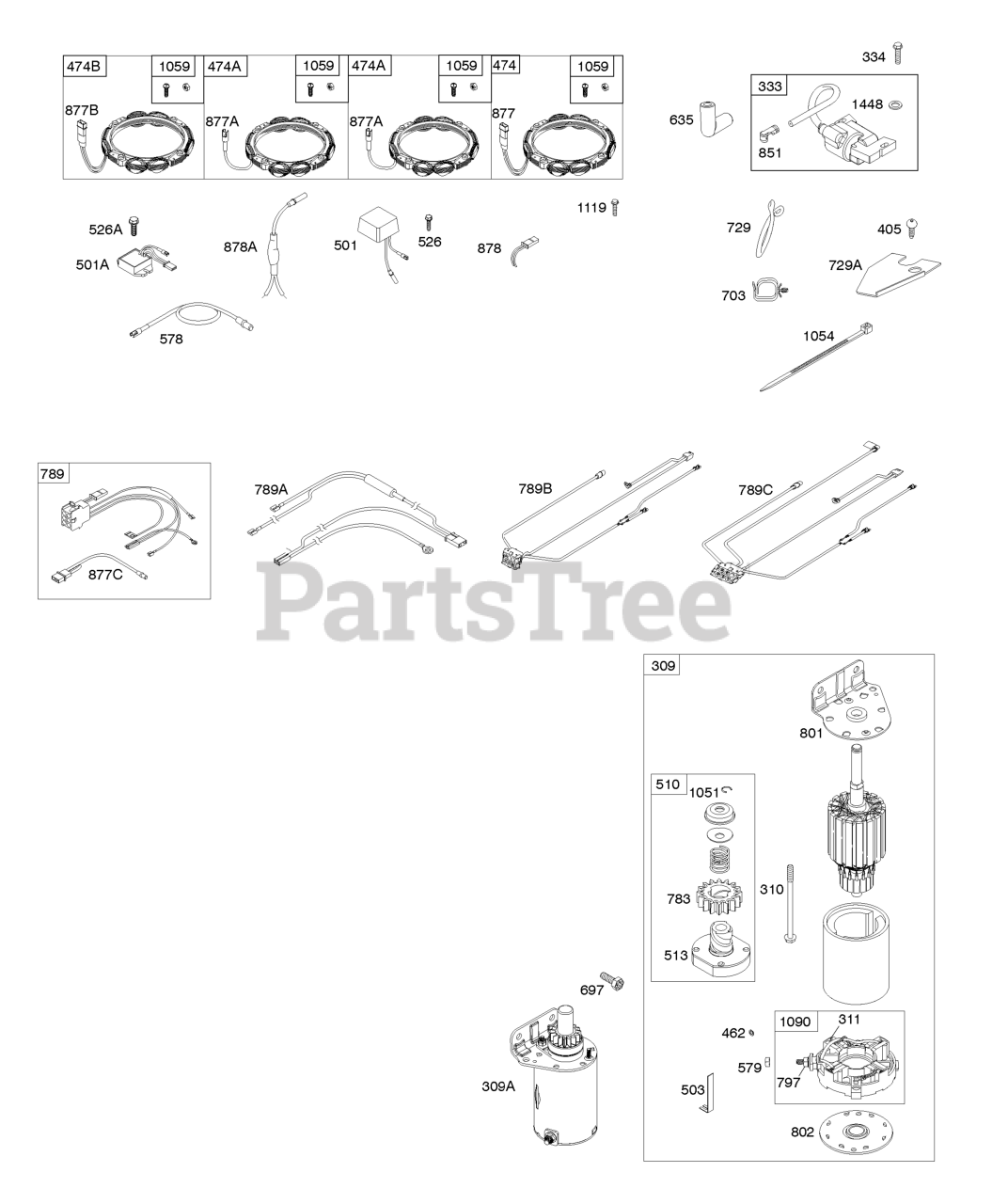

Alternator, Wire Harness, Starter, Ignition Parts Diagram

  • Title

309

Briggs & Stratton 497595

Motor-Starter

$110.99

$

In Stock, Qty 20+

0

310

Screw

Note: (Starter Motor) Used Before Code Date 13042300

$

$

Not available

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 799651

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

405

Briggs & Stratton 697820

SCREW

Note: (Back Plate) (Mounting)

$4.49

$

In Stock, only 3 left!

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

474

Briggs & Stratton 592831

ALTERNATOR

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

501

Briggs & Stratton 794360

REGULATOR

$64.99

$

In Stock, only 2 left!

0

501A

Briggs & Stratton 797375

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

$90.99

$

In Stock, Qty 9

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 691129

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 6

0

526A

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

578

Briggs & Stratton 691208

Wire Assembly

Note: (18" Long-Used On Cylinder 2 Mounted Regulator)

$20.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 797463

Wire Assembly

Note: (14" Long-Used On Cylinder 1 Mounted Regulator)

$

$

Not available

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 591909

SCREW

Note: (Drive Cap)

$2.99

$

In Stock, Qty 10

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 797454

CLIP, Wire
(Superseded to 593826)

$5.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 695708

Gear-Pinion

$6.99

$

In Stock, only 3 left!

0

789

Briggs & Stratton 698330

HARNESS, Wiring

Note: (6 Pin, #2 Side Regulator. Without EFM. Wire Assembly Includes Green OilPressure Switch Wire. Remove If Not Needed. Service Kit Includes RedRegulator To 2 Pin Jumper Wire.)

$39.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 591391

Harness-Wiring

Note: (2 Pin, #1 And #2 Side Regulator. Without EFM.) Used After Code Date 12042200

$45.99

$

In Stock, only 2 left!

0

789A

Briggs & Stratton 691220

Harness-Wiring

Note: (2 Pin, #1 And #2 Side Regulator. Without EFM.) Used Before Code Date 12042300

$43.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 591392

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used After Code Date 12042200

$35.99

$

In Stock, only 1 left!

0

789C

Briggs & Stratton 591393

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Green Oil Pressure Switch Wire.) Used After Code Date 12042200

$45.99

$

In Stock, only 1 left!

0

789B

Briggs & Stratton 797424

Harness-Wiring
(Superseded to 591392)

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used Before Code Date 12042300

$35.99

$

In Stock, only 1 left!

0

789C

Briggs & Stratton 797460

Harness-Wiring
(Superseded to 591393)

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.Wire Assembly Includes Green Oil Pressure Switch Wire.) Used Before Code Date 12042300

$45.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393537

Wire/Connector-Alternator

$

$

Not available

877B

Briggs & Stratton 399916

Wire/Connector-Alternator

$12.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0
