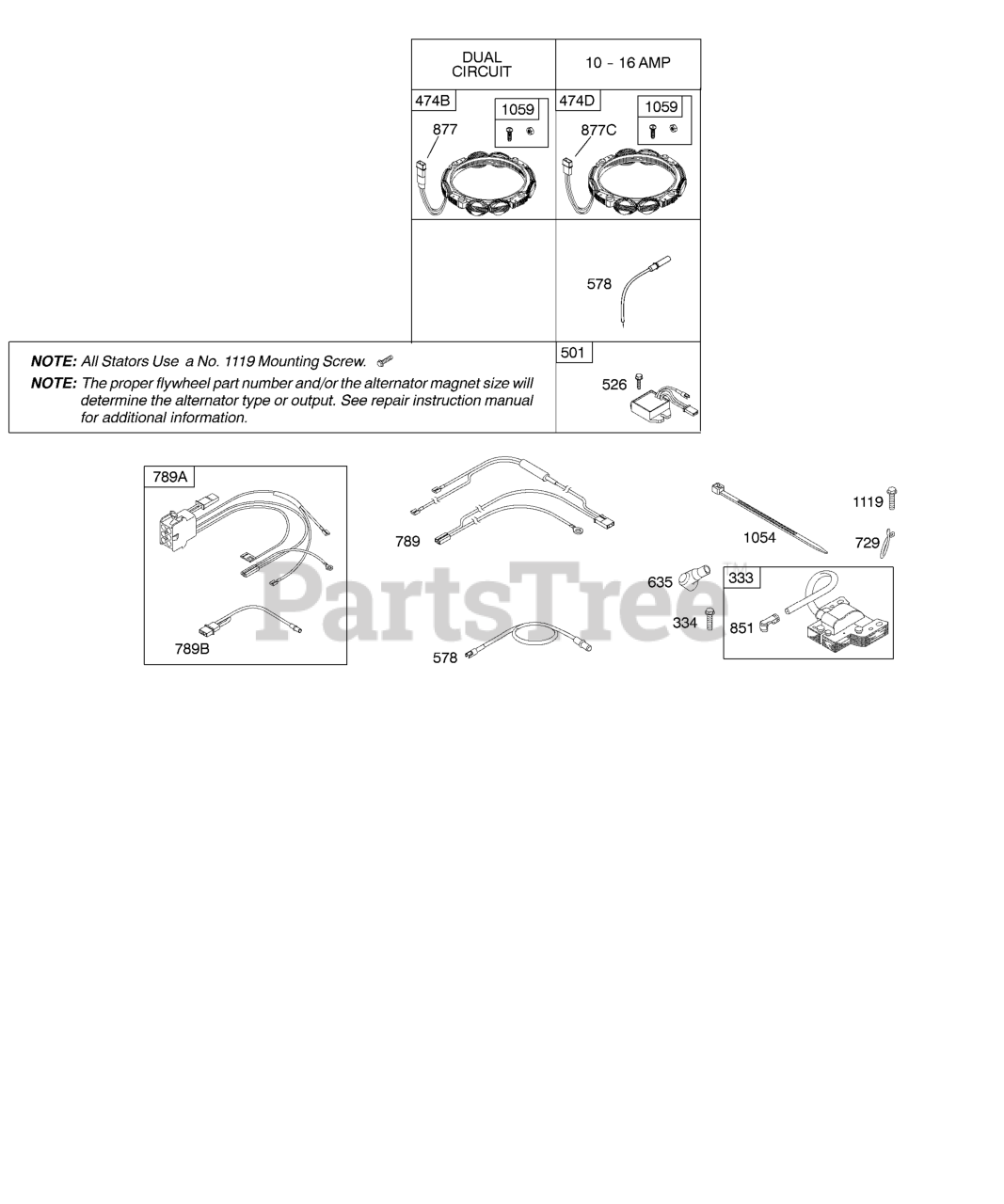

407677-0232-E1 - Briggs & Stratton Vertical Engine Alternators/Ignition Parts Diagram

Vertical Engine

Alternators/Ignition Parts Diagram

  • Title

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

474D

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

Note: (10-16 Amp Regulated)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 691108

SCREW

Note: (Regulator) (10-16 Amp Regulated)

$3.49

$

In Stock, Qty 20+

0

578

Briggs & Stratton 691208

Wire Assembly

$20.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 8

0

729

Briggs & Stratton 694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 691220

Harness-Wiring

$43.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 698330

HARNESS, Wiring

Note: (6 Pin Customer Conversion)

$39.99

$

In Stock, only 1 left!

0

789B

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

Note: (10-16 Amp Regulated)

$12.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
