40701 - Gravely Liftable Rear Hitch for 4-Wheel Tractor LIFTABLE REAR HITCH Parts Diagram

Liftable Rear Hitch for 4-Wheel Tractor

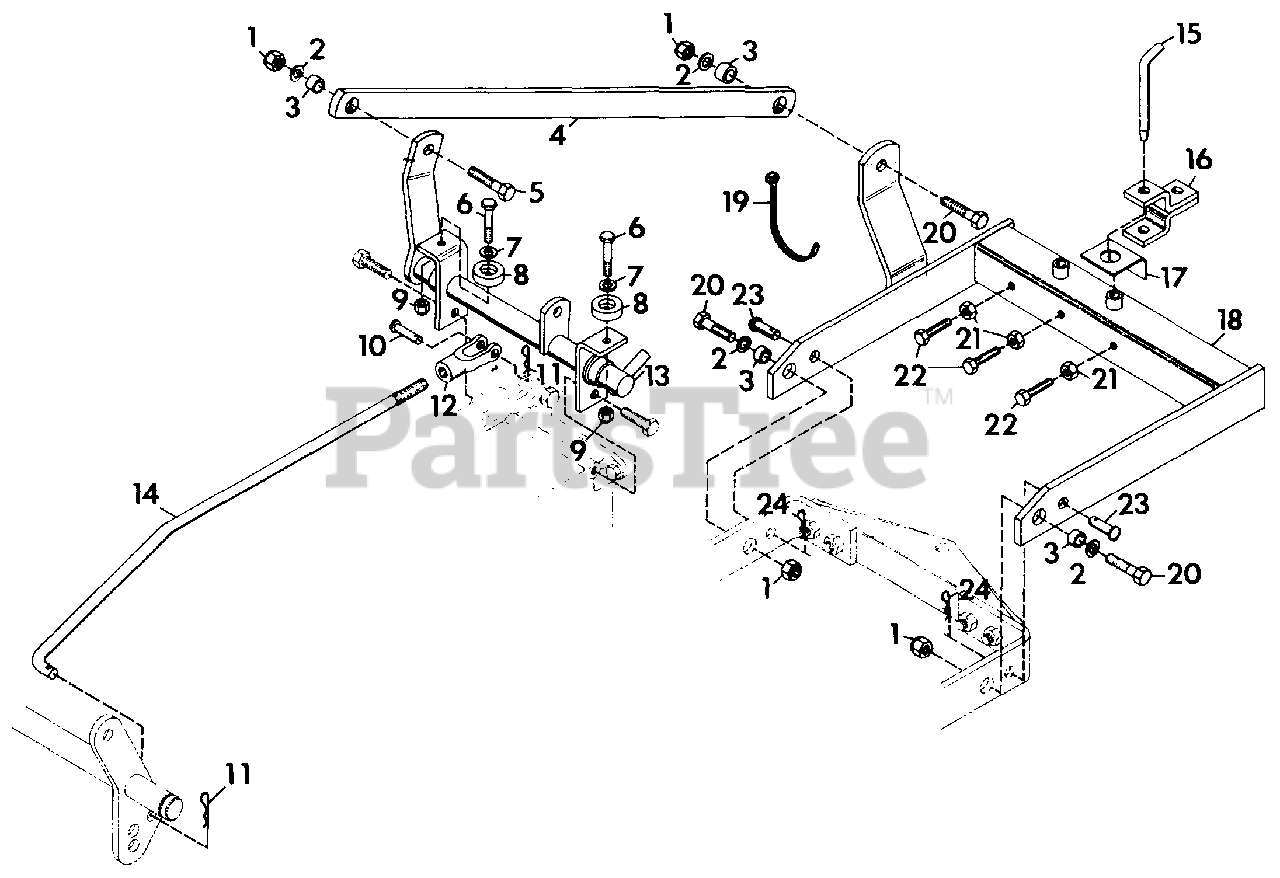

LIFTABLE REAR HITCH Parts Diagram

  • Title
1

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 019260

BUSHING, PIVOT CASTING
(Superseded to 08713700)

$

$

Not available

4

Gravely 024453

STRAP, REAR HITCH
(Superseded to 08726700)

$

$

Not available

5

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

6

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

7

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 024357

BUMPER, SEAT
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 138086

PIN, CLEVIS .500X1.213
(Superseded to 06812100)

$13.99

$

In Stock, only 1 left!

0

11

Gravely 015691

PIN, COTTER HAIR
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 019091

YOKE, ADJUSTABLE
(Superseded to 08714000)

$

$

Not available

13

Gravely 040705

WELDMENT, LIFTABLE HITCH
(Superseded to 08751400)

$

$

Not available

14

Gravely 019092

ROD, LIFT
(Superseded to 08714100)

$

$

Not available

15

Gravely 018864

PIN, HITCH
(Superseded to 08653700)

$

$

Not available

16

Gravely 018866

HITCH, REAR WELDMENT
(Superseded to 08709300)

$168.99

$

Usually ships in 4-12 days

0

17

Gravely 014949

PAD
(Superseded to 08700700)

$39.99

$

Usually ships in 4-12 days

0

18

Gravely 024376

WELDMENT, REAR HITCH
(Superseded to 08726600)

$

$

Not available

19

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

20

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 451519

NUT, JAM 3/8-16 HEX HEAVY
(Superseded to 06525100)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 014718

BOLT, HEX SPECIAL 3/8-16X3.00
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 020499

PIN, CLEVIS 5/8X1.125
(Superseded to 06809500)

$

$

Not available

24

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0
